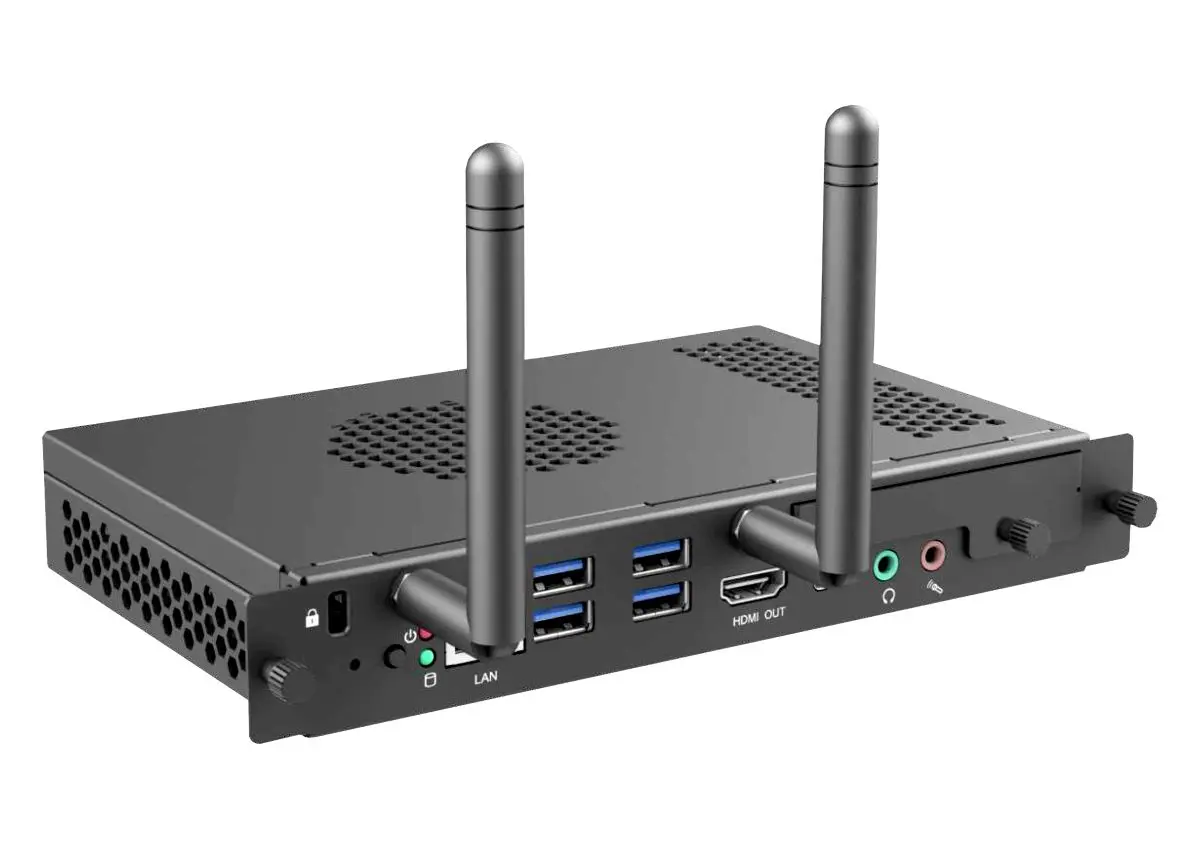

OPS - Open Pluggable Specification

PC Module | 80 pin

Design within Standards Perform beyond Excellent

Logic OPS PC module is an industry-standard product with better performance. It embeds Intel 11th Generation core i5 processor.

Features

  • Type-C: up to USB 3.1 Gen2 10Gb/s.
  • Integrate multiple ports: 1 x HDMI OUT, 4 x USB 3.0, 1 x Type-C
  • High-speed transmission: 1×HDMI (Max resolution 3840×2160@30Hz)
  • The note is a collaborative education whiteboard application for interactive displays. It is purposefully designed for teachers to engage students with compelling content.
  • Discipline tools including planets, formulas, functions, geometry, and rulers make class delivery more vivid than ever.
  • Tools like timing and zoom (magnifier & spotlight) catch students’ attention. Class activities can be more engaging with these tools.
  • Capture: This software applies to record teaching materials. Teachers can make screen recordings, edit and prepare lessons easily and efficiently.
  • Create lessons with video, audio recordings, multimedia materials, texts, and customized watermarks. One tap to export or save.
  • Add, split, and delete the recorded contents.
  • Connect (Easy wireless sharing Platform): Wireless content-sharing provides a convenient and user-friendly way to share digital content between devices, making it easier to collaborate, communicate, and enjoy multimedia content.

Specifications

  • Core 4
  • Threads 8
  • Base Frequency 2.4GHz
  • Max Frequency 4.2GHz
  • TDP 28W
  • Cache 8MB
  • Core 4
  • Threads 8
  • Base Frequency 2.8GHz
  • Max Frequency 4.7GHz
  • TDP 28W
  • Cache 12MB

Default Connectivity

  • Type Dual Channel DDR4
  • Interface 260-Pin DDR4 SODIMM
  • Max Size 32GB
  • Colour Available Black

Graphics

  • Intel® Iris® Xe Graphics

Storage Interface

  • SSD 1×M.2-2280 SATAIII (up to 6Gb/s)
  • PCIe3.0×4 (up to 32Gb/s) (optional)
  • SATA: 128GB/256GB/512GB (optional)
  • NVMe: 256GB/512GB (optional)
  • HDD 1×2.5' HDD SATAIII (up to 6Gb/s)
  • 500GB/1TB optional

Ports & Connectivity

  • 4× USB 3.0
  • 1× USB Type-C
  • 1× MIC In (Pink)
  • 1× Line Out (Green)
  • 1× RJ45 Ethernet (10/100/1000M)
  • 1× HDMI (Max 3840×2160@30Hz)
  • 1× HDD LED (Running: green blinking)
  • 1× Power LED (Power on: red)
  • 2× 2.4G/5G Dual Frequency Antennas
  • 1× Power Button
  • 1× OS Recovery Button

Expansion

  • WLAN 1× M.2 2230 (802.11a/b/g/n/ac+BT4.2)
  • Max Speed: 433Mbps

80-Pin OPS Interface

  • HDMI 1× HDMI 2.0 (Max 3840×2160@60Hz)
  • USB 1× USB 3.0, 3× USB 2.0
  • DC Power 12V~19V DC

Operating System

  • Windows 10 64-bit

Power

  • Power Supply Mode 80-Pin OPS Internal Power Supply Module
  • Input Power 12V~19V
  • Max Power Consumption 65W
  • Standby Power Consumption 1.5W

Environmental

  • Operation Temperature -10℃ ~ 50℃
  • Operation Humidity 10% ~ 90%RH
  • Storage Temperature -20℃ ~ 60℃
  • Storage Humidity 10% ~ 90%RH

Physical Specifications

  • Dimensions (L×W×H) 202×133.5×30mm
