Aura Series
  • Features
  • Specifications
  • Resources

Features

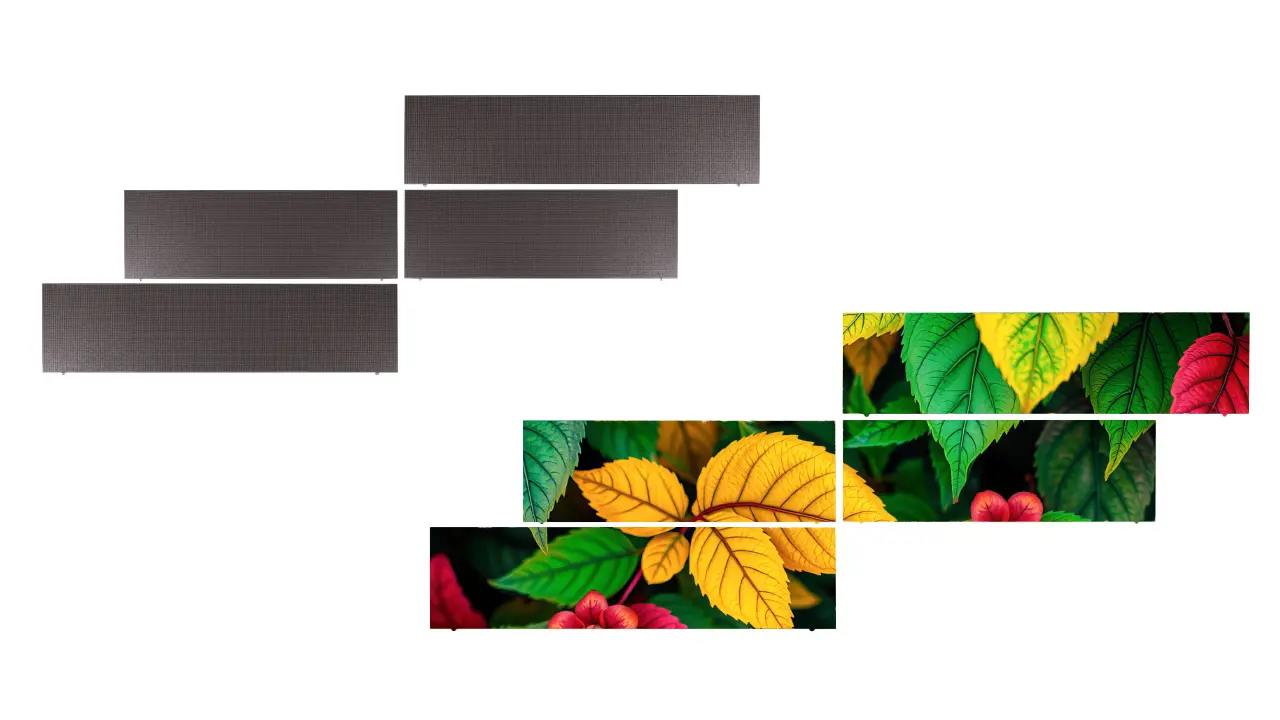

Eye-Catching Architectural Design

Our durable and corrosion-resistant design ensures that our displays will last for years to come. With better heat dissipation, you can rest assured that the Aura Series will remain reliable even in high-stress environments.

Specifications

  • ApplicationIndoor
  • Pixel Pitch (in mm)2.5
  • LED TypeSMD
  • LED Lifetime (In Hours)1,00,000
  • Brightness (cd/m²)800
  • Contrast Ratio8000:1
  • Frame Rate (Hz)60
  • Refresh Rate (Hz)3840
  • Cabinet Dimension W x H x D (in mm)1000 x 250 / 750 x 250
  • Module Dimension (in mm)250 x 250
  • Cabinet Resolution (WxH)384 x 96
  • Weight (kg/Cabinet)6
  • Service AccessFront
  • Optimal Viewing Angle (H/V)160°/160°
  • VoltageAC 220 V
  • Power Consumption (Avg) (in W/m²)160
  • Power Consumption (Max) (in W/m²)640
  • Heat Generation - Max (BTU/m²)1843.5
  • MTBF (in Hours)10,000
  • IP Rating (Front/Rear)IP30 / IP20
  • Pixel Density (Pixels/m²)1,47,456
  • Grey Scale14 bit
  • ApplicationIndoor
  • Pixel Pitch (in mm)4
  • LED TypeSMD
  • LED Lifetime (In Hours)1,00,000
  • Brightness (cd/m²)900
  • Contrast Ratio8000:1
  • Frame Rate (Hz)60
  • Refresh Rate (Hz)3840
  • Cabinet Dimension W x H x D (in mm)1000 x 250 / 750 x 250
  • Module Dimension (in mm)250 x 250
  • Cabinet Resolution (WxH)250 x 64
  • Weight (kg/Cabinet)6
  • Service AccessFront
  • Optimal Viewing Angle (H/V)160°/160°
  • VoltageAC 220 V
  • Power Consumption (Avg) (in W/m²)160
  • Power Consumption (Max) (in W/m²)640
  • Heat Generation - Max (BTU/m²)1536.3
  • MTBF (in Hours)10,000
  • IP Rating (Front/Rear)IP30 / IP20
  • Pixel Density (Pixels/m²)65,536
  • Grey Scale14 bit

Resources

Download Datasheet
