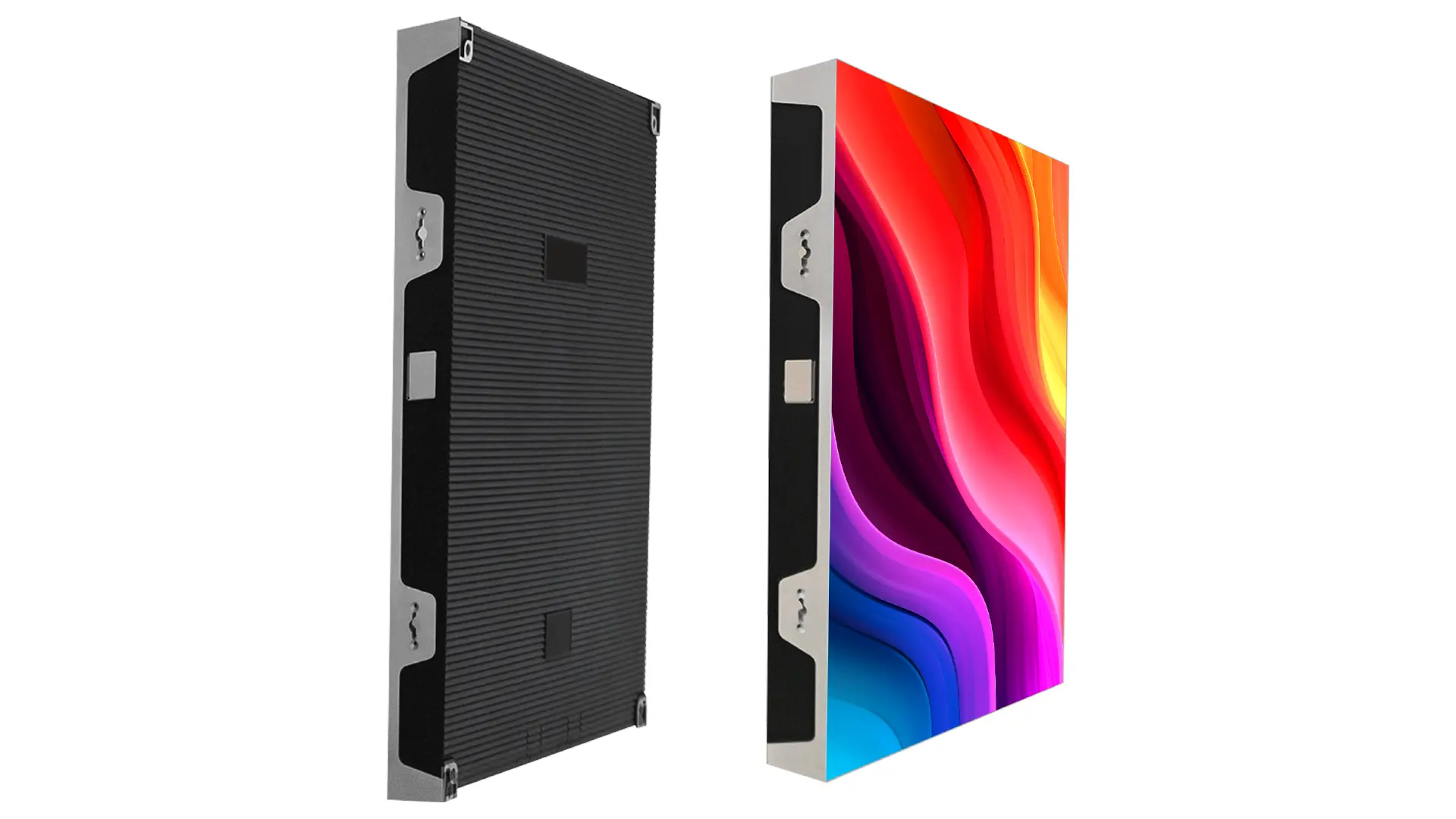

Ebony Series
  • Features
  • Specifications
  • Resources

Features

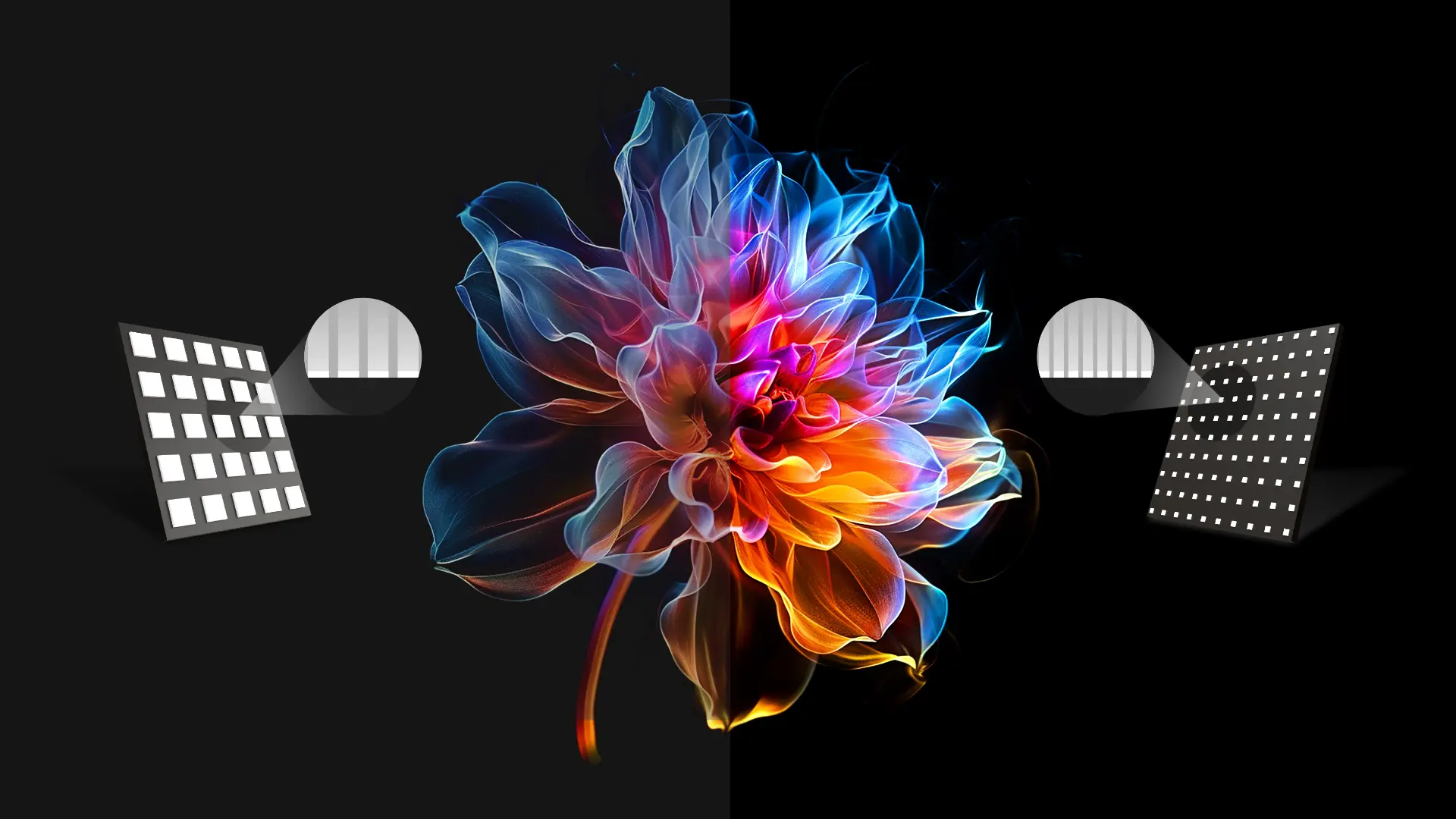

Pure blacks with perfect picture

Experience the ultimate in visual immersion with Ebony's full black coating, eliminating light bleed for deeper blacks and richer colors.

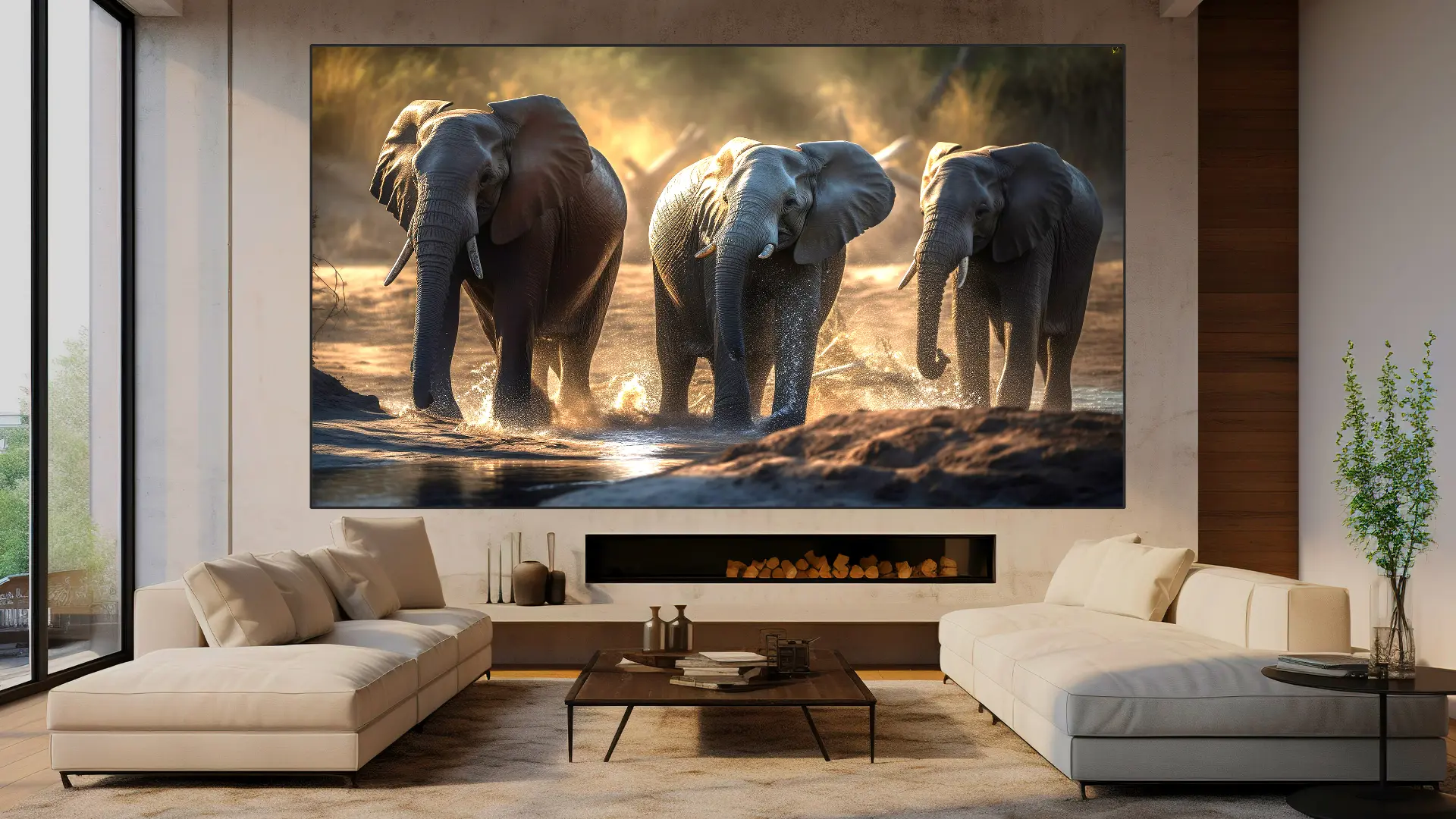

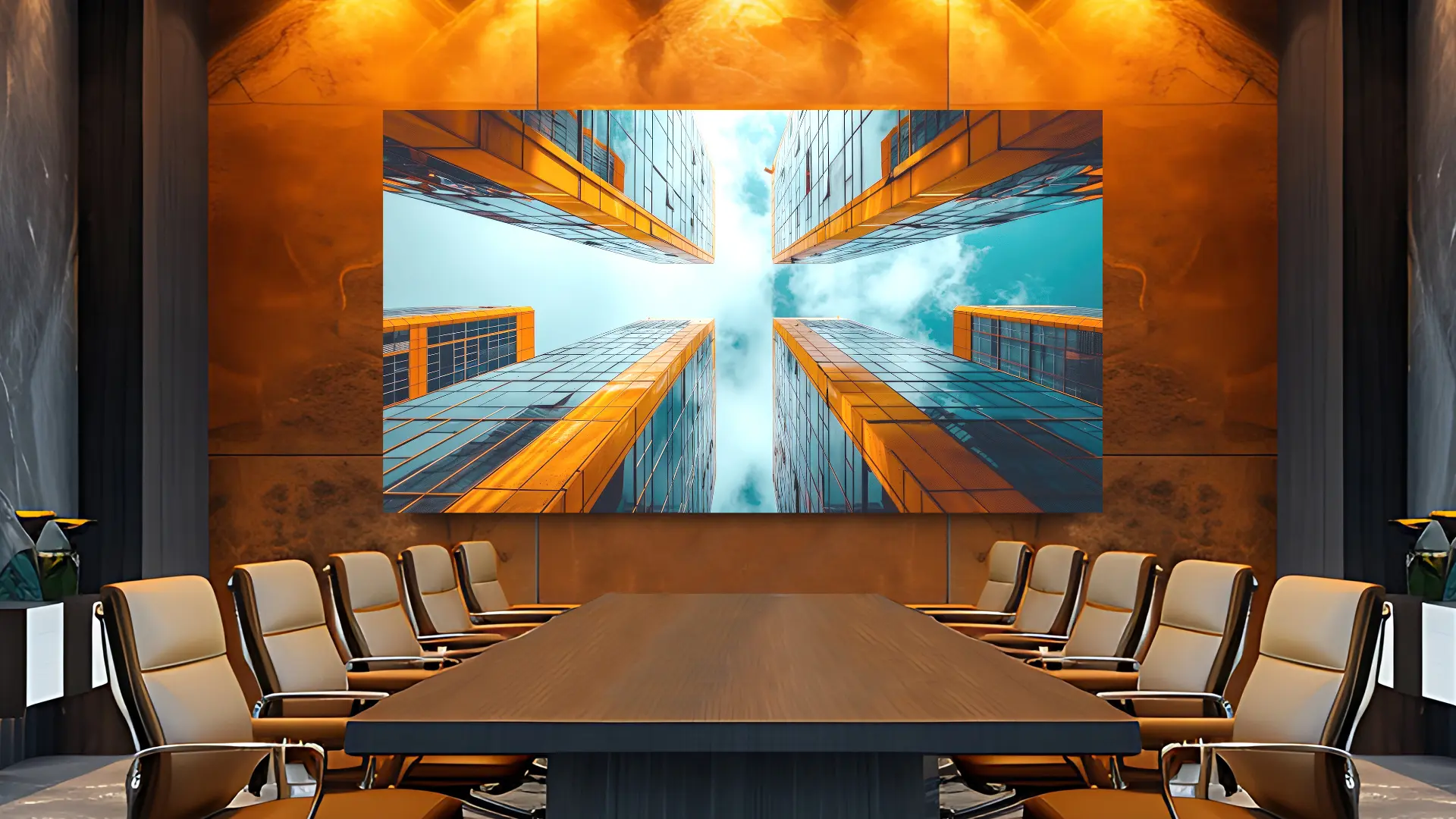

Dominate Any Space

Ebony's 1000 nits of peak brightness defy ambient light, ensuring vibrant colors and sharp images in any environment.

Built to endure

The robust IP65/IP41 rating shields your display from the elements, ensuring reliable performance in any setting.

Sleek And Seamless

The cable-less design simplifies the installation creating a sleek and modern look.

Protection Perfected

Ebony's dust-proof construction safeguards your display, preserving image quality and extending its life.

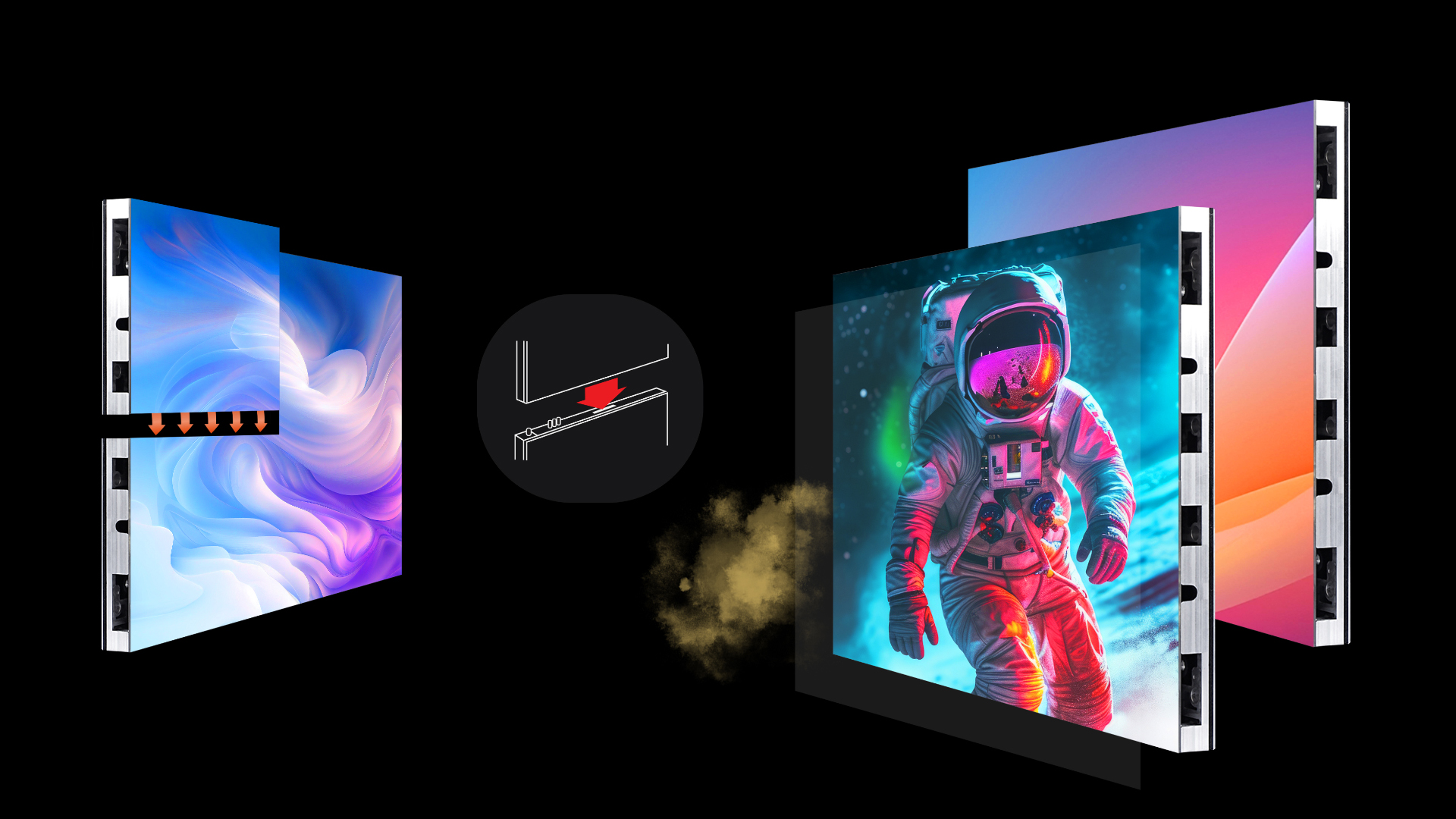

Cable Less Connectivity

A cable less design can simplify installation and enhance the aesthetic appeal of your product. There is no cable is required to connect between modules and cabinets

Specifications

  • ApplicationIndoor
  • Pixel Pitch (in mm)0.9mm
  • LED TypeCOB
  • LED Lifetime (In Hours)≥100,000
  • Brightness (cd/m²)1000 nits
  • Contrast Ratio100000:1
  • Frame Rate (Hz)60
  • Refresh Rate (Hz)3840
  • Cabinet MaterialDie-Casting Aluminum
  • Cabinet Dimension W x H x D (in mm)600 x 337.5 x 28
  • Module Dimension (in mm)150 x 168.75
  • Physical Resolution640 x 360
  • Weight (kg/Cabinet)5
  • Service AccessFRONT
  • Optimal Viewing Angle (H/V)170° / 170°
  • Storage Temperature-10°C ～ +50°C
  • Working Temperature-10°C ～ +40°C
  • Relative Humidity10% ～ 90%, Non-condensing
  • Storage Humidity10% ～ 90%, Non-condensing
  • VoltageAC 110V~240V, 50~60Hz
  • Power Consumption (Avg) (in W/m²)100–200
  • Power Consumption (Max) (in W/m²)400
  • Heat Generation (Max) (BTU/m²)445 BTU/m²
  • MTBF (in Hours)≥120,000
  • Protection LevelIP65
  • Grey Scale16 BIT
  • Physical Density1,137,778 /m²
  • ApplicationIndoor
  • Pixel Pitch (in mm)1.2mm
  • LED TypeCOB
  • LED Lifetime (In Hours)≥100,000
  • Brightness (cd/m²)1000 nits
  • Contrast Ratio100000:1
  • Frame Rate (Hz)60
  • Refresh Rate (Hz)3840
  • Cabinet MaterialDie-Casting Aluminum
  • Cabinet Dimension W x H x D (in mm)600 x 337.5 x 28
  • Module Dimension (in mm)150 x 168.75
  • Physical Resolution480 x 270
  • Weight (kg/Cabinet)5
  • Service AccessFRONT
  • Optimal Viewing Angle (H/V)170° / 170°
  • Storage Temperature-10°C ～ +50°C
  • Working Temperature-10°C ～ +40°C
  • Relative Humidity10% ～ 90%, Non-condensing
  • Storage Humidity10% ～ 90%, Non-condensing
  • VoltageAC 110V~240V, 50~60Hz
  • Power Consumption (Avg) (in W/m²)100–200
  • Power Consumption (Max) (in W/m²)400
  • Heat Generation (Max) (BTU/m²)445 BTU/m²
  • MTBF (in Hours)≥120,000
  • Protection LevelIP65
  • Grey Scale16 BIT
  • Physical Density640,000 /m²
  • ApplicationIndoor
  • Pixel Pitch (in mm)1.5mm
  • LED TypeCOB
  • LED Lifetime (In Hours)≥100,000
  • Brightness (cd/m²)1000 nits
  • Contrast Ratio100000:1
  • Frame Rate (Hz)60
  • Refresh Rate (Hz)3840
  • Cabinet MaterialDie-Casting Aluminum
  • Cabinet Dimension W x H x D (in mm)600 x 337.5 x 28
  • Module Dimension (in mm)150 x 168.75
  • Physical Resolution384 x 216
  • Weight (kg/Cabinet)5
  • Service AccessFRONT
  • Optimal Viewing Angle (H/V)170° / 170°
  • Storage Temperature-10°C ～ +50°C
  • Working Temperature-10°C ～ +40°C
  • Relative Humidity10% ～ 90%, Non-condensing
  • Storage Humidity10% ～ 90%, Non-condensing
  • VoltageAC 110V~240V, 50~60Hz
  • Power Consumption (Avg) (in W/m²)100–200
  • Power Consumption (Max) (in W/m²)400
  • Heat Generation (Max) (BTU/m²)445 BTU/m²
  • MTBF (in Hours)≥120,000
  • Protection LevelIP65
  • Grey Scale16 BIT
  • Physical Density409600 /m²
  • ApplicationIndoor
  • Pixel Pitch (in mm)1.8mm
  • LED TypeCOB
  • LED Lifetime (In Hours)≥100,000
  • Brightness (cd/m²)1000 nits
  • Contrast Ratio100000:1
  • Frame Rate (Hz)60
  • Refresh Rate (Hz)3840
  • Cabinet MaterialDie-Casting Aluminum
  • Cabinet Dimension W x H x D (in mm)600 x 337.5 x 28
  • Module Dimension (in mm)300 x 168.75
  • Physical Resolution320 x 180
  • Weight (kg/Cabinet)5
  • Service AccessFRONT
  • Optimal Viewing Angle (H/V)170° / 170°
  • Storage Temperature-10°C ～ +50°C
  • Working Temperature-10°C ～ +40°C
  • Relative Humidity10% ～ 90%, Non-condensing
  • Storage Humidity10% ～ 90%, Non-condensing
  • VoltageAC 110V~240V, 50~60Hz
  • Power Consumption (Avg) (in W/m²)100–200
  • Power Consumption (Max) (in W/m²)400
  • Heat Generation (Max) (BTU/m²)445 BTU/m²
  • MTBF (in Hours)≥120,000
  • Protection LevelIP65
  • Grey Scale16 BIT
  • Physical Density284444 /m²

Resources

Download Datasheet
