Features

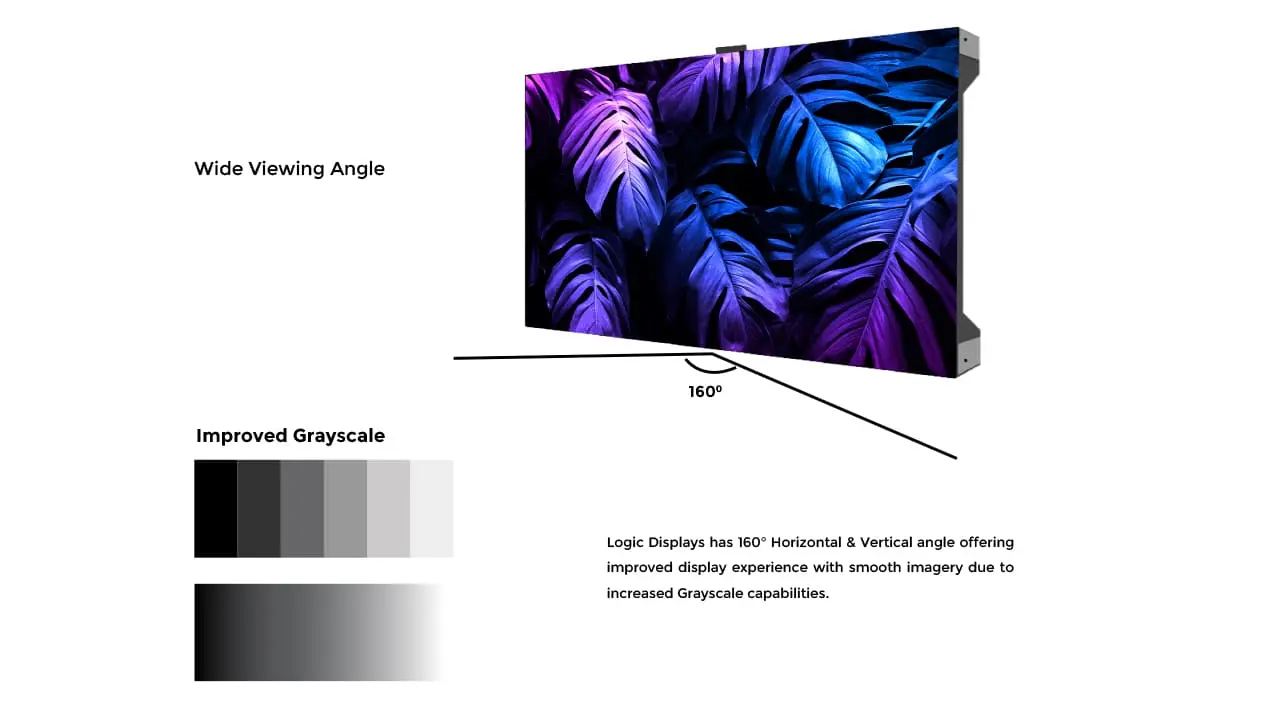

Wide Viewing Angle

Enhance your display experience with the Chroma Series 160° horizontal and vertical viewing angle, delivering smooth imagery and increased grayscale capabilities.

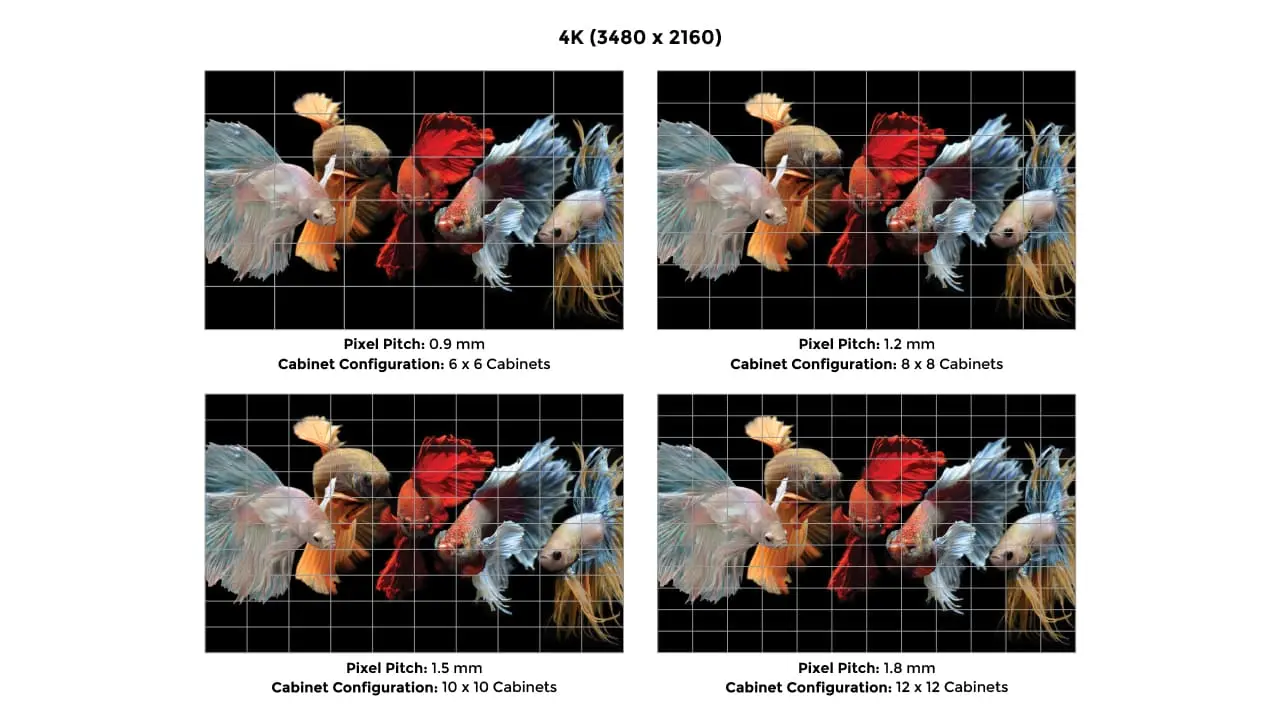

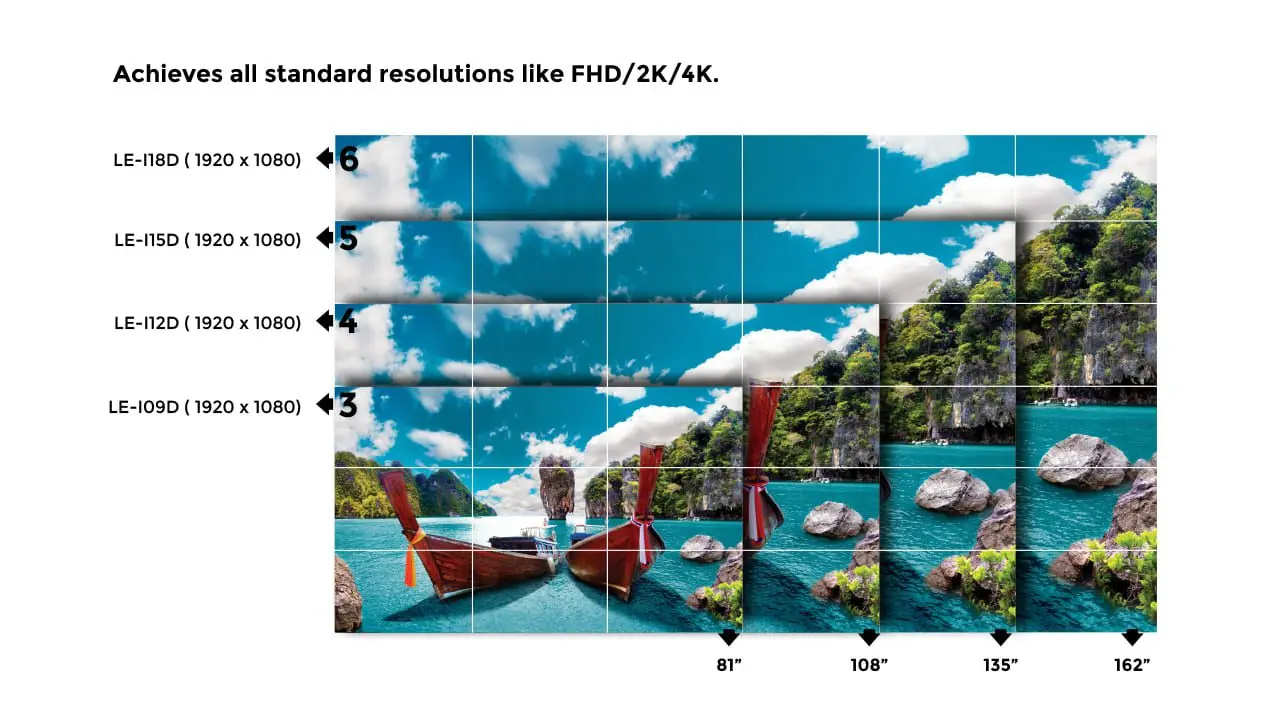

Experience all standard resolutions like FHD/2K/4K.

The Chroma Series achieves standard resolutions like FHD, 2K, and 4K, delivering crisp and clear visuals with outstanding detail and precision. With support for all standard resolutions, the Chroma Series can adapt to a wide range of content, making it an ideal solution for different applications, including gaming, multimedia, and professional tasks.

Effortless and Prompt Maintenance with Quick Serviceability

Our front-serviceable design allows for hassle-free installations with no rear access, and magnetic modules enable easy and secure fixing and removal for service. Plus, quick-release cabling ensures tool-less services.

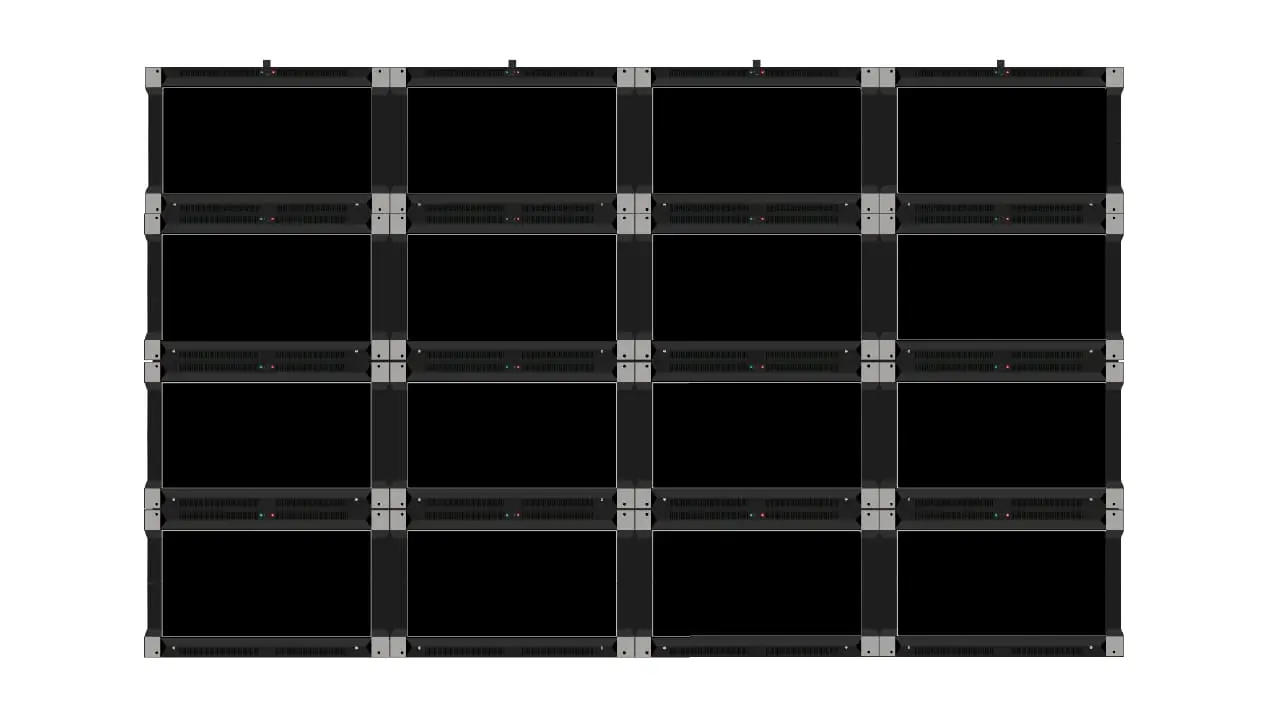

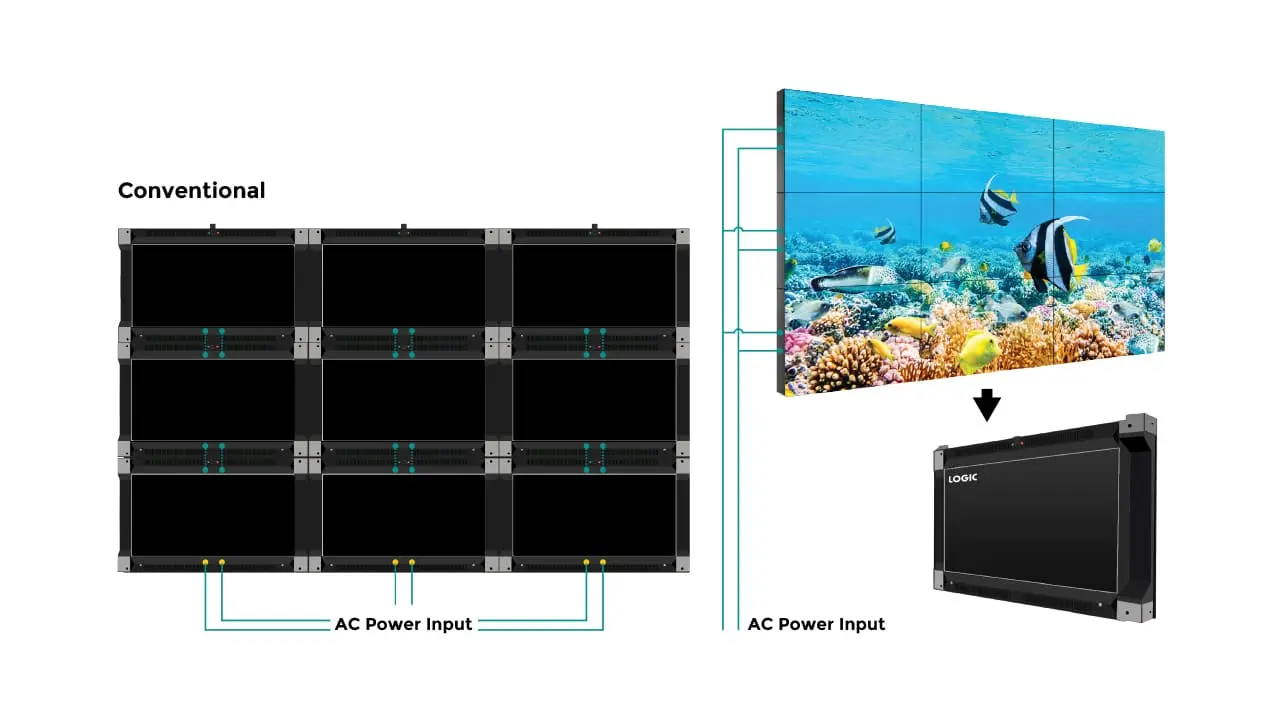

Simplicity is Key

The panel’s clean and minimalist design style is achieved by using a single high-stability connector to connect modules, hub cards, and receiving cards between the panels, eliminating the need for external cables.

Specifications

  • ApplicationIndoor
  • Pixel Pitch (in mm)1.2
  • LED TypeSMD
  • LED Lifetime (In Hours)100,000
  • Brightness (cd/m²)600
  • Contrast Ratio6000:1
  • Frame Rate (Hz)60
  • Refresh Rate (Hz)3840
  • Cabinet Dimension W x H x D (in mm)600x337.5x40
  • Module Dimension (in MM)300 x 168.75
  • Physical Resolution480x270
  • Weight (Kg/Cabinet)4.5
  • Service AccessFRONT
  • Optimal Viewing Angle (H/V)160°/160°
  • Storage Temperature-20°C ～ +60°C
  • Working Temperature-10°C ～ +60°C
  • Relative Humidity10％～80％
  • Storage Humidity10％～80％
  • VoltageAC 110-240V
  • Power Consumption (Avg) (in W/m²)100-250
  • Power Consumption (Max) (in W/m²)500
  • Heat generation-Max (BTU/m²)555
  • MTBF (in hours)120,000
  • Protection LevelFront IP41
  • Grey Scale16 BIT
  • Physical Density640000
  • ApplicationIndoor
  • Pixel Pitch (in mm)1.5
  • LED TypeSMD
  • LED Lifetime (In Hours)100,000
  • Brightness (cd/m²)600
  • Contrast Ratio6000:1
  • Frame Rate (Hz)60
  • Refresh Rate (Hz)3840
  • Cabinet Dimension W x H x D (in mm)600x337.5x40
  • Module Dimension (in MM)300 x 168.75
  • Physical Resolution384x216
  • Weight (Kg/Cabinet)4.5
  • Service AccessFRONT
  • Optimal Viewing Angle (H/V)160°/160°
  • Storage Temperature-20°C ～ +60°C
  • Working Temperature-10°C ～ +60°C
  • Relative Humidity10％～80％
  • Storage Humidity10％～80％
  • VoltageAC 110-240V
  • Power Consumption (Avg) (in W/m²)100-200
  • Power Consumption (Max) (in W/m²)400
  • Heat generation-Max (BTU/m²)445
  • MTBF (in hours)120,000
  • Protection LevelFront IP41
  • Grey Scale16 BIT
  • Physical Density409600
  • ApplicationIndoor
  • Pixel Pitch (in mm)1.8
  • LED TypeSMD
  • LED Lifetime (In Hours)100,000
  • Brightness (cd/m²)600
  • Contrast Ratio6000:1
  • Frame Rate (Hz)60
  • Refresh Rate (Hz)3840
  • Cabinet Dimension W x H x D (in mm)600x337.5x40
  • Module Dimension (in MM)300 x 168.75
  • Physical Resolution320x180
  • Weight (Kg/Cabinet)4.5
  • Service AccessFRONT
  • Optimal Viewing Angle (H/V)160°/160°
  • Storage Temperature-20°C ～ +60°C
  • Working Temperature-10°C ～ +60°C
  • Relative Humidity10％～80％
  • Storage Humidity10％～80％
  • VoltageAC 110-240V
  • Power Consumption (Avg) (in W/m²)100-200
  • Power Consumption (Max) (in W/m²)400
  • Heat generation-Max (BTU/m²)445
  • MTBF (in hours)120,000
  • Protection LevelFront IP41
  • Grey Scale16 BIT
  • Physical Density284444
  • ApplicationIndoor
  • Pixel Pitch (in mm)2.5
  • LED TypeSMD
  • LED Lifetime (In Hours)100,000
  • Brightness (cd/m²)600
  • Contrast Ratio6000:1
  • Frame Rate (Hz)60
  • Refresh Rate (Hz)3840
  • Cabinet Dimension W x H x D (in mm)600x337.5x40
  • Module Dimension (in MM)300 x 168.75
  • Physical Resolution240x135
  • Weight (Kg/Cabinet)4.5
  • Service AccessFRONT
  • Optimal Viewing Angle (H/V)160°/160°
  • Storage Temperature-20°C ～ +60°C
  • Working Temperature-10°C ～ +60°C
  • Relative Humidity10％～80％
  • Storage Humidity10％～80％
  • VoltageAC 110-240V
  • Power Consumption (Avg) (in W/m²)100-200
  • Power Consumption (Max) (in W/m²)400
  • Heat generation-Max (BTU/m²)445
  • MTBF (in hours)120,000
  • Protection LevelFront IP41
  • Grey Scale16 BIT
  • Physical Density160000
