Estilo Luxe

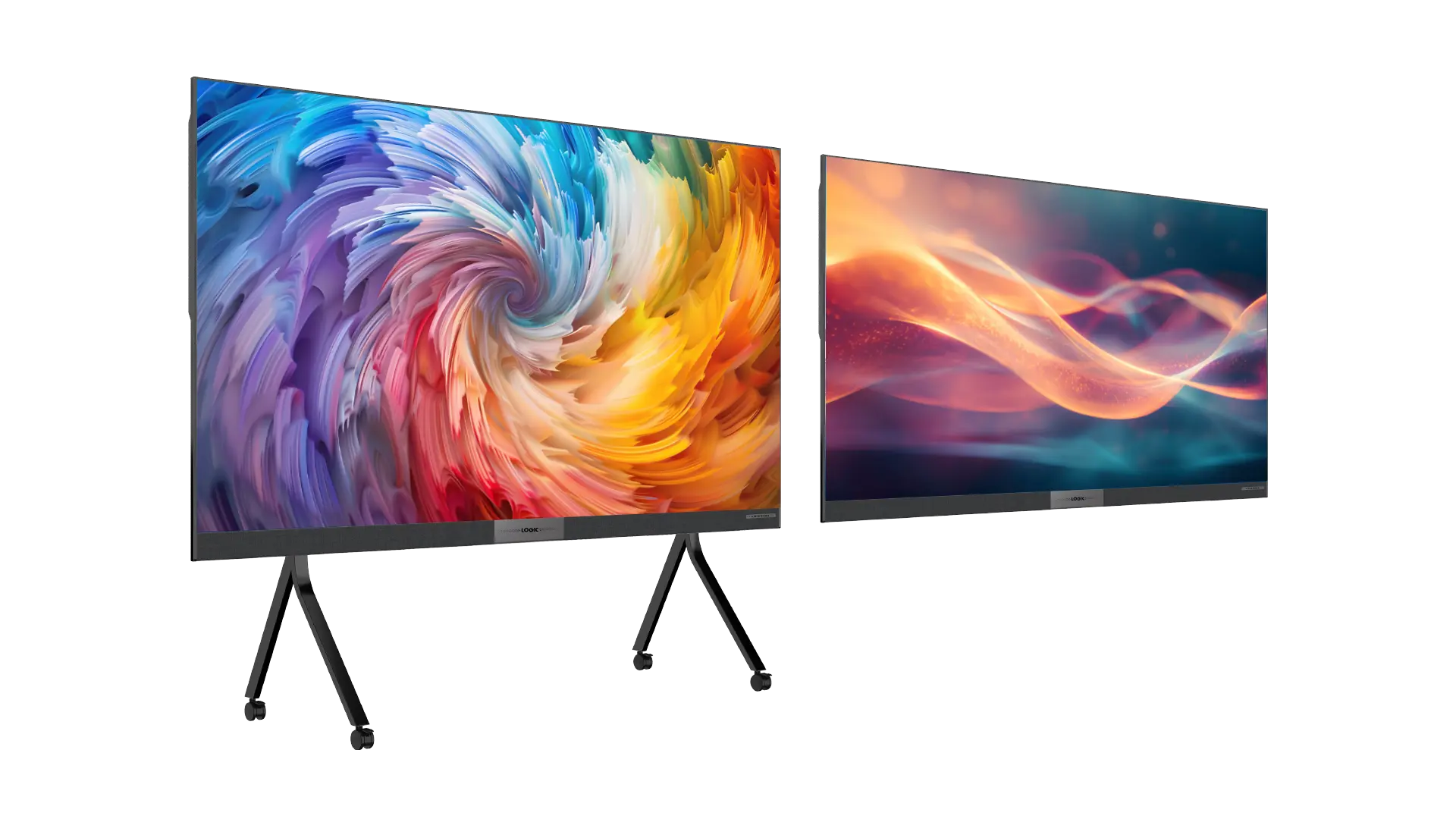

All-in-One COB Displays

Quick Inquiry

Deeper Black and Truer Colours

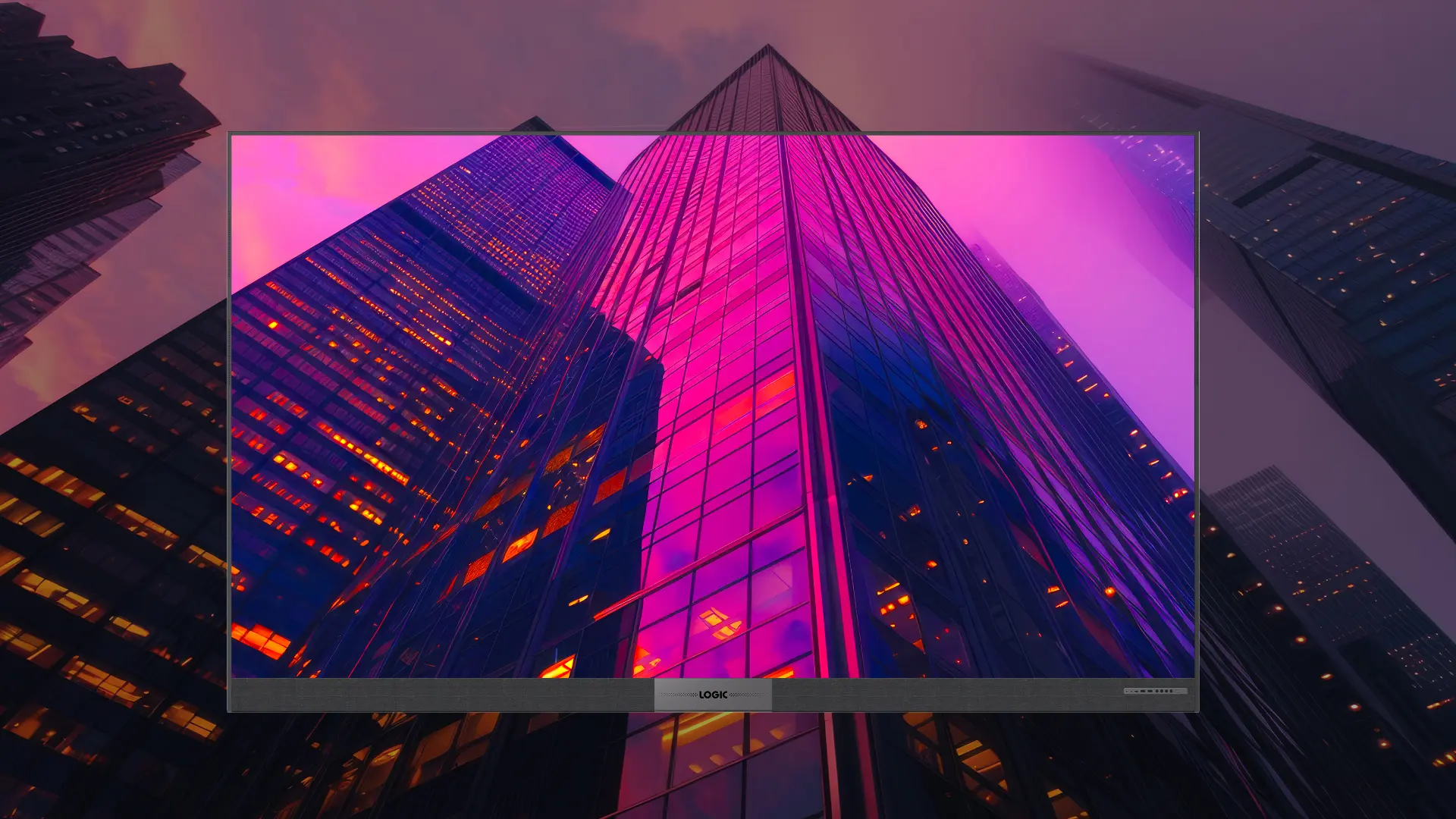

Daylight Brilliance

Colours remain vibrant and viewing stays clear, no matter the glare.

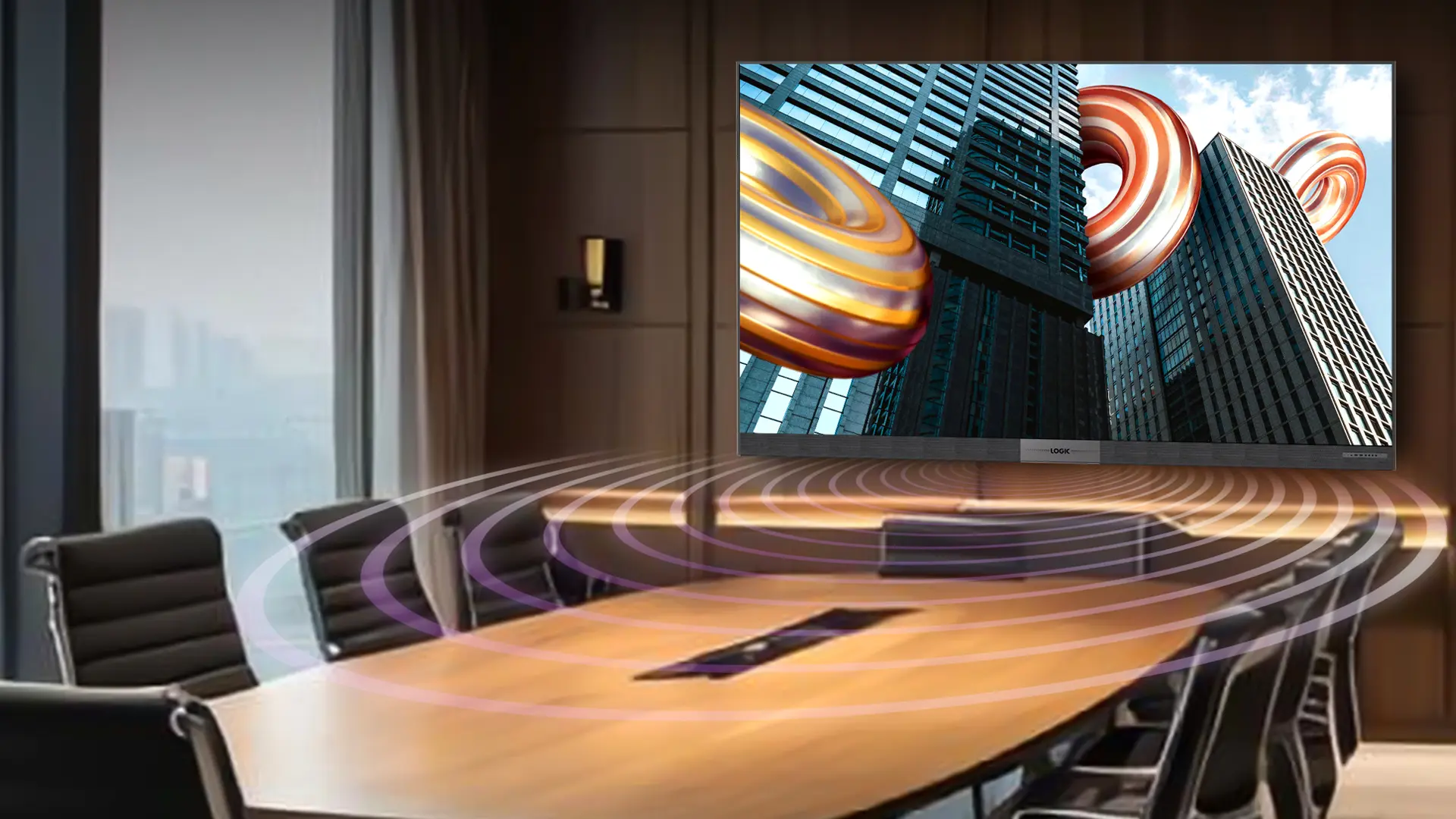

Sound and Vision Perfected

A total immersion guaranteed with powerful built-in speakers.

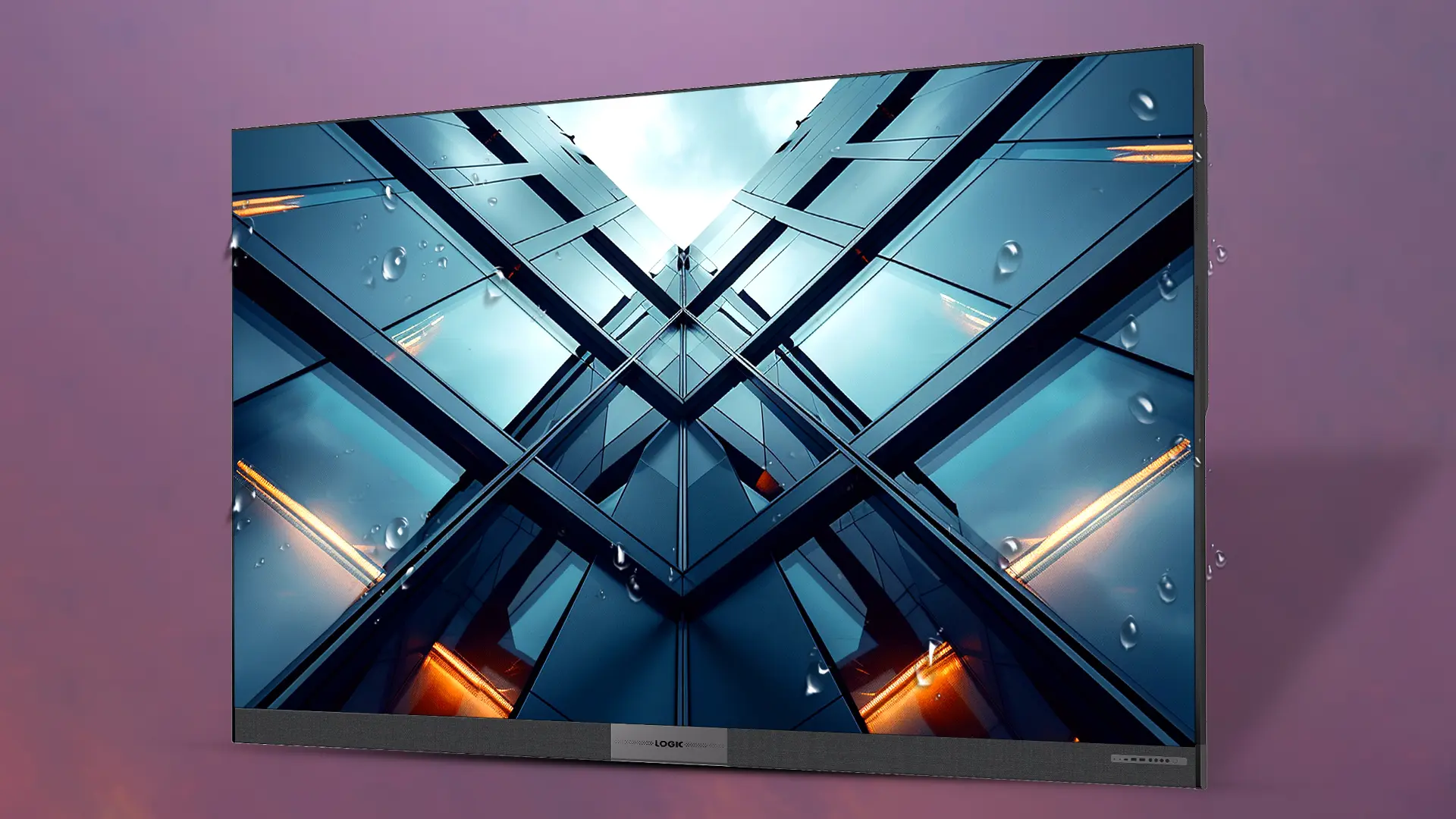

Resilient and Reliable

IP54 rated to power through dust, humidity, and heavy use.

Specifications

  • ApplicationIndoor
  • Screen Size (Inch)135
  • Pixel Pitch (in mm)1.5
  • Screen Size W x H x D (mm)3000x1687.5x31mm
  • LED TypeCOB
  • Colour Gamut DCI-P397%
  • Brightness (cd/m2)600
  • Contrast Ratio15000:1
  • Frame Rate (Hz/sec)60
  • Refresh Rate (Hz/sec)3840
  • Resolution1920x1080
  • Aspect Ratio16:09
  • Android Version13
  • RAM8 GB
  • ROM64 GB
  • Wi-Fi2.4 Ghz / 5 Ghz
  • BluetoothBT5.3
  • HDMI IN4
  • HDMI OUT1
  • USB 2.01
  • USB 3.02
  • USB Type-C1
  • LAN2
  • 3.5 Audio IN & OUT1 & 2
  • USB OUT1
  • Speaker4x15 + 2x30 Watts
  • LED Lifetime (In Hours)1,00,000
  • Weight in Kg110
  • Optimal Viewing Angle (H/V)165° / 165°
  • Grey Scale16 bit
  • Operation Temperature-10°C ～ 40°C
  • Operation Humidity10%-80% RH
  • VoltageAC 100-240 V
  • Unit Power Consumption (Avg)0.483 kw
  • Unit Power Consumption (Max)1.46 kw
  • Protection Level (Front/Rear)IP40/IP30
  • ApplicationIndoor
  • Screen Size (Inch)162
  • Pixel Pitch (in mm)1.25
  • Screen Size W x H x D (mm)3600x2025x31mm
  • LED TypeCOB
  • Colour Gamut DCI-P397%
  • Brightness (cd/m2)600
  • Contrast Ratio15000:1
  • Frame Rate (Hz/sec)60
  • Refresh Rate (Hz/sec)3840
  • Resolution2880x1620
  • Aspect Ratio16:09
  • Android Version13
  • RAM8 GB
  • ROM64 GB
  • Wi-Fi2.4 Ghz / 5 Ghz
  • BluetoothBT5.3
  • HDMI IN4
  • HDMI OUT1
  • USB 2.01
  • USB 3.02
  • USB Type-C1
  • LAN2
  • 3.5 Audio IN & OUT1 & 2
  • USB OUT1
  • Speaker4x15 + 2x30 Watts
  • LED Lifetime (In Hours)1,00,000
  • Weight in Kg165
  • Optimal Viewing Angle (H/V)165° / 165°
  • Grey Scale16 bit
  • Operation Temperature-10°C～40°C
  • Operation Humidity10%-80% RH
  • VoltageAC 100-240 V
  • Unit Power Consumption (Avg)0.688 kw
  • Unit Power Consumption (Max)2.291 kw
  • Protection Level (Front/Rear)IP40/IP30
