Lumina Series
  • Features
  • Specifications
  • Resources

Features

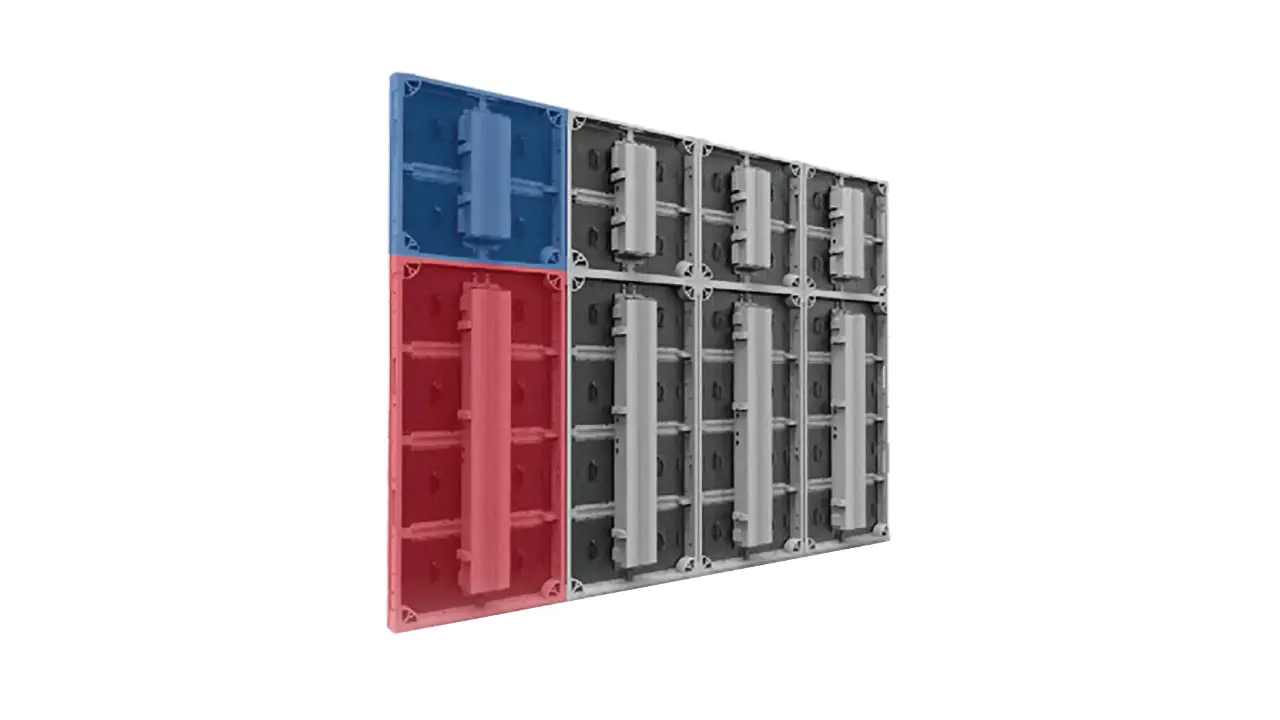

Mix and Match Your Creative Vision

Revolutionise your display game with our cutting-edge technology supporting mixed splicing. Create seamless and captivating visuals by combining different screens and display sizes for an unforgettable viewing experience.

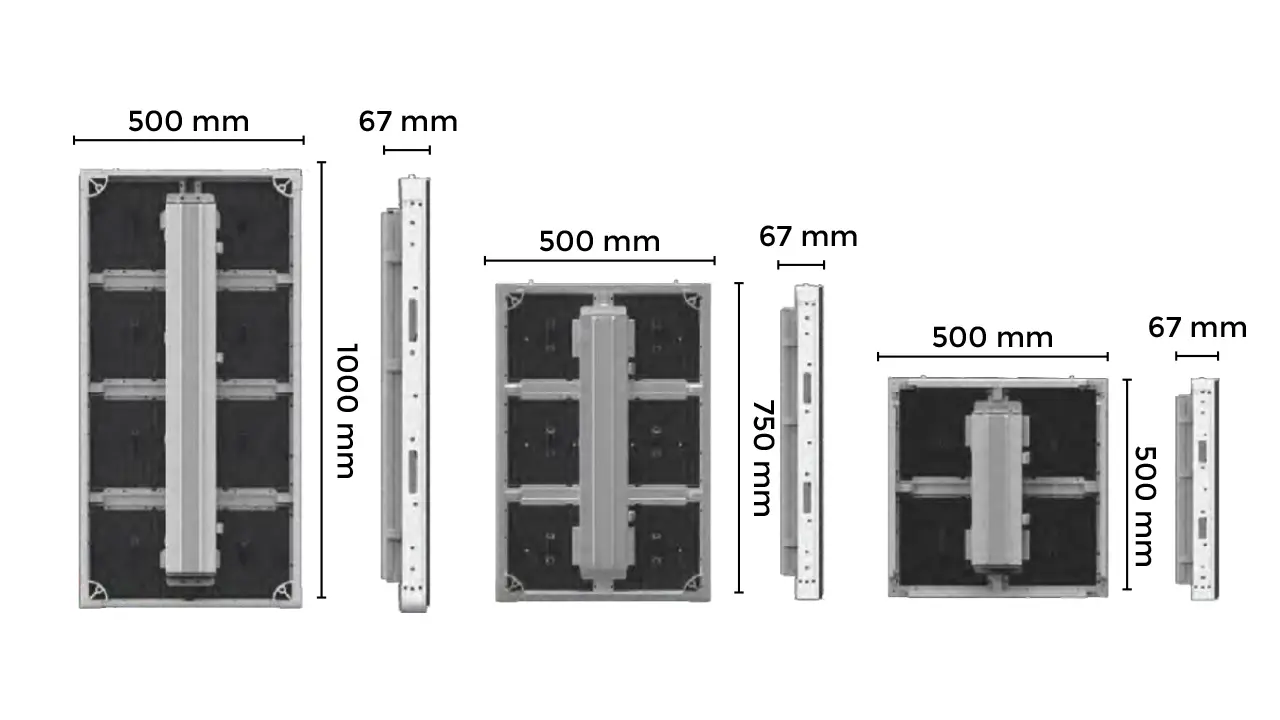

Customize Your Display Cabinet Size

Get the perfect fit for your display needs with our range of different cabinet sizes. From compact to large, we offer customisable options to ensure your display is a perfect match for your unique space.

Specifications

  • ApplicationOutdoor
  • Pixel Pitch (in mm)3.9
  • LED TypeSMD
  • LED Lifetime (In Hours)1,00,000
  • Brightness (cd/m2)4500-5000
  • Contrast Ratio6000:1
  • Frame Rate (Hz)60
  • Refresh Rate (Hz)3840

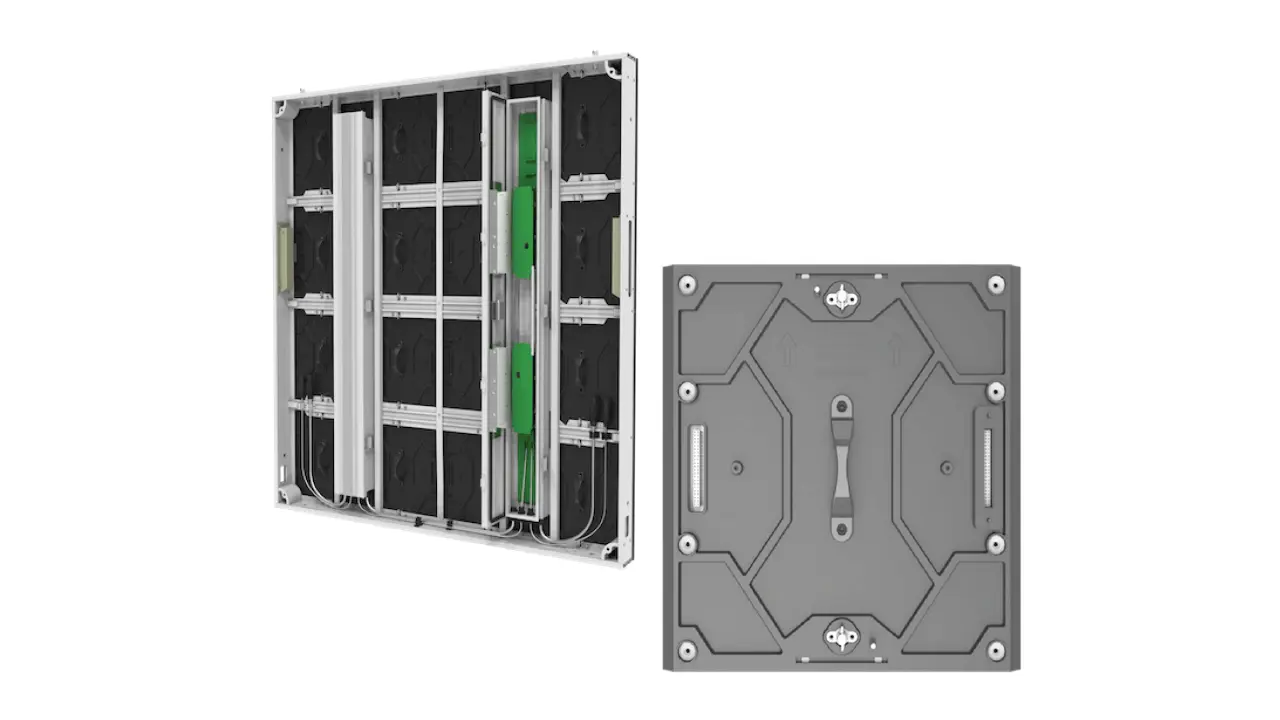

  • Cabinet MaterialDie-Casting Aluminum
  • Cabinet Dimension W x H x D (in mm)500 x 1000 x 92
  • Module Dimension (in mm)250 x 250
  • Cabinet Resolution (WxH)128 x 256
  • Weight (kg/Cabinet)16
  • Service AccessFront / Rear
  • Optimal Viewing Angle (H/V)160° / 160°
  • VoltageAC 100-240 V
  • Power Consumption (Avg) (in W/m2)240
  • Power Consumption (Max) (in W/m2)608
  • Heat Generation - Max (BTU/m2)2074.5
  • MTBF (in Hours)10,000
  • IP Rating (Front/Rear)IP65 / IP65
  • Grey Scale16 bit
  • Pixel Density (Pixels/m2)65,536
  • ApplicationOutdoor
  • Pixel Pitch (in mm)4.8
  • LED TypeSMD
  • LED Lifetime (In Hours)1,00,000
  • Brightness (cd/m2)5000-5500
  • Contrast Ratio6000:1
  • Frame Rate (Hz)60
  • Refresh Rate (Hz)3840
  • Cabinet MaterialDie-Casting Aluminum
  • Cabinet Dimension W x H x D (in mm)500 x 1000 x 92
  • Module Dimension (in mm)250 x 250
  • Cabinet Resolution (WxH)104 x 208
  • Weight (kg/Cabinet)16
  • Service AccessFront / Rear
  • Optimal Viewing Angle (H/V)160° / 140°
  • VoltageAC 100-240 V
  • Power Consumption (Avg) (in W/m2)250
  • Power Consumption (Max) (in W/m2)640
  • Heat Generation - Max (BTU/m2)2183.7
  • MTBF (in Hours)10,000
  • IP Rating (Front/Rear)IP65 / IP65
  • Grey Scale16 bit
  • Pixel Density (Pixels/m2)43,264
  • ApplicationOutdoor
  • Pixel Pitch (in mm)6.8
  • LED TypeSMD
  • LED Lifetime (In Hours)1,00,000
  • Brightness (cd/m²)8000
  • Contrast Ratio7000:1
  • Frame Rate (Hz)60
  • Refresh Rate (Hz)3840
  • Cabinet MaterialDie-Casting Aluminum
  • Cabinet Dimension W x H x D (in mm)1200 x 1200 x 92
  • Module Dimension (in mm)300 x 300
  • Cabinet Resolution (W x H)176 x 176
  • Weight (kg/Cabinet)27
  • Service AccessFront / Rear
  • Optimal Viewing Angle (H/V)160° / 140°
  • VoltageAC 100-240 V
  • Power Consumption (Avg) (W/m²)240
  • Power Consumption (Max) (W/m²)600
  • Heat Generation - Max (BTU/m²)2047.3
  • MTBF (in Hours)10,000
  • IP Rating (Front/Rear)IP65 / IP65
  • Grey Scale16 bit
  • Pixel Density (Pixels/m²)21,511
  • ApplicationOutdoor
  • Pixel Pitch (mm)8.3
  • LED TypeSMD
  • LED Lifetime (Hours)1,00,000
  • Brightness (cd/m²)10,000
  • Contrast Ratio7000:1
  • Frame Rate (Hz)60
  • Refresh Rate (Hz)3840
  • Cabinet MaterialDie-Casting Aluminum
  • Cabinet Size (mm)1200 x 1200 x 92
  • Module Size (mm)300 x 300
  • Resolution (W × H)144 x 144
  • Weight (Kg/Cabinet)27
  • Service AccessFront / Rear
  • Viewing Angle (H/V)150° / 140°
  • VoltageAC 100–240 V
  • Avg. Power (W/m²)240
  • Max. Power (W/m²)600
  • Max. Heat (BTU/m²)2047.3
  • MTBF (Hours)10,000
  • IP Rating (Front/Rear)IP65 / IP65
  • Grey Scale16 bit
  • Pixel Density (Pixels/m²)14,400
