Dazzle Series
  • Features
  • Specifications
  • Resources

Features

Maximize Display Uptime with Dual Cooling

Beat overheating and downtime with our innovative dual cooling channels technology. With longer working hours and increased reliability, our commercial display solutions keep your business running smoothly around the clock.

Specifications

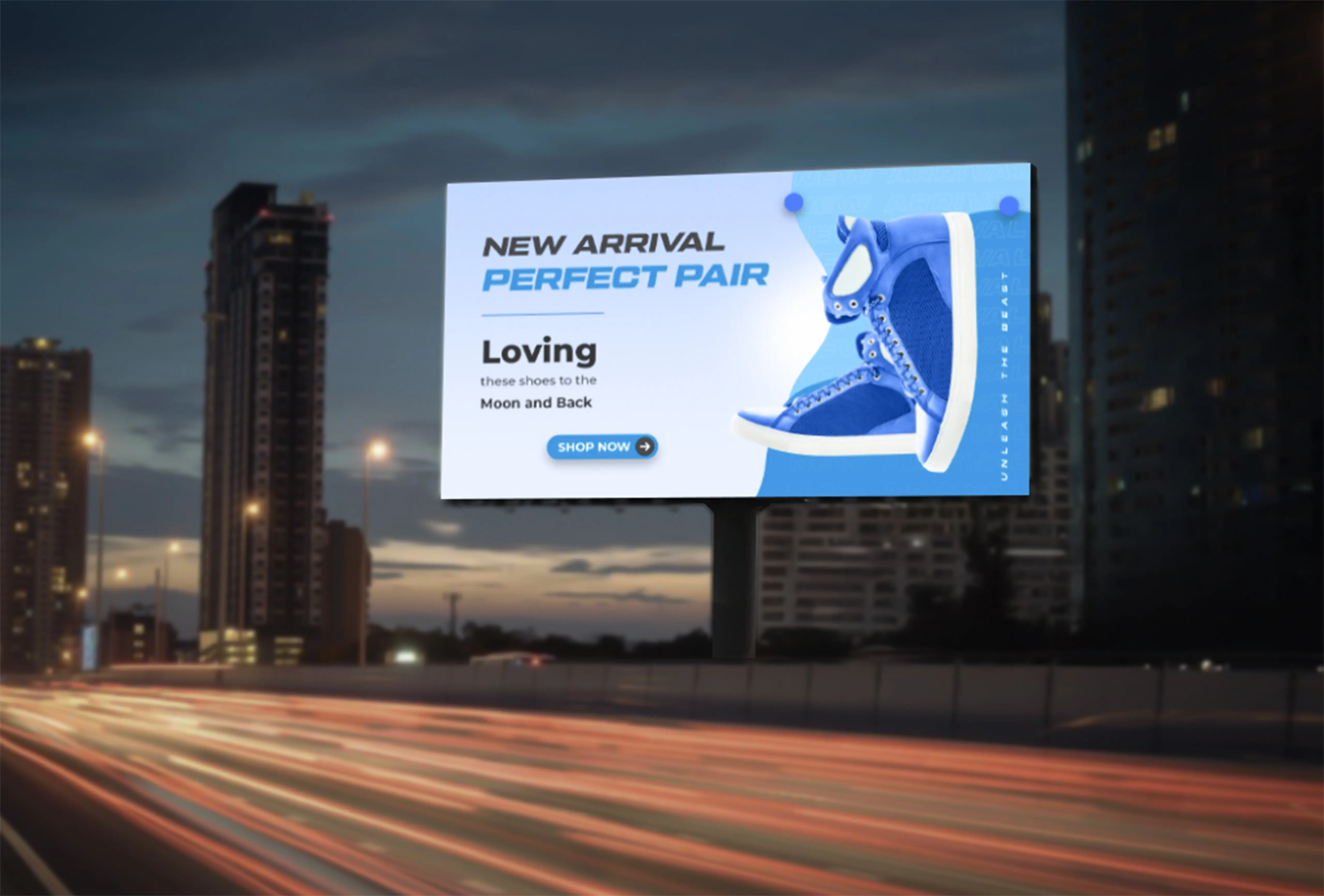

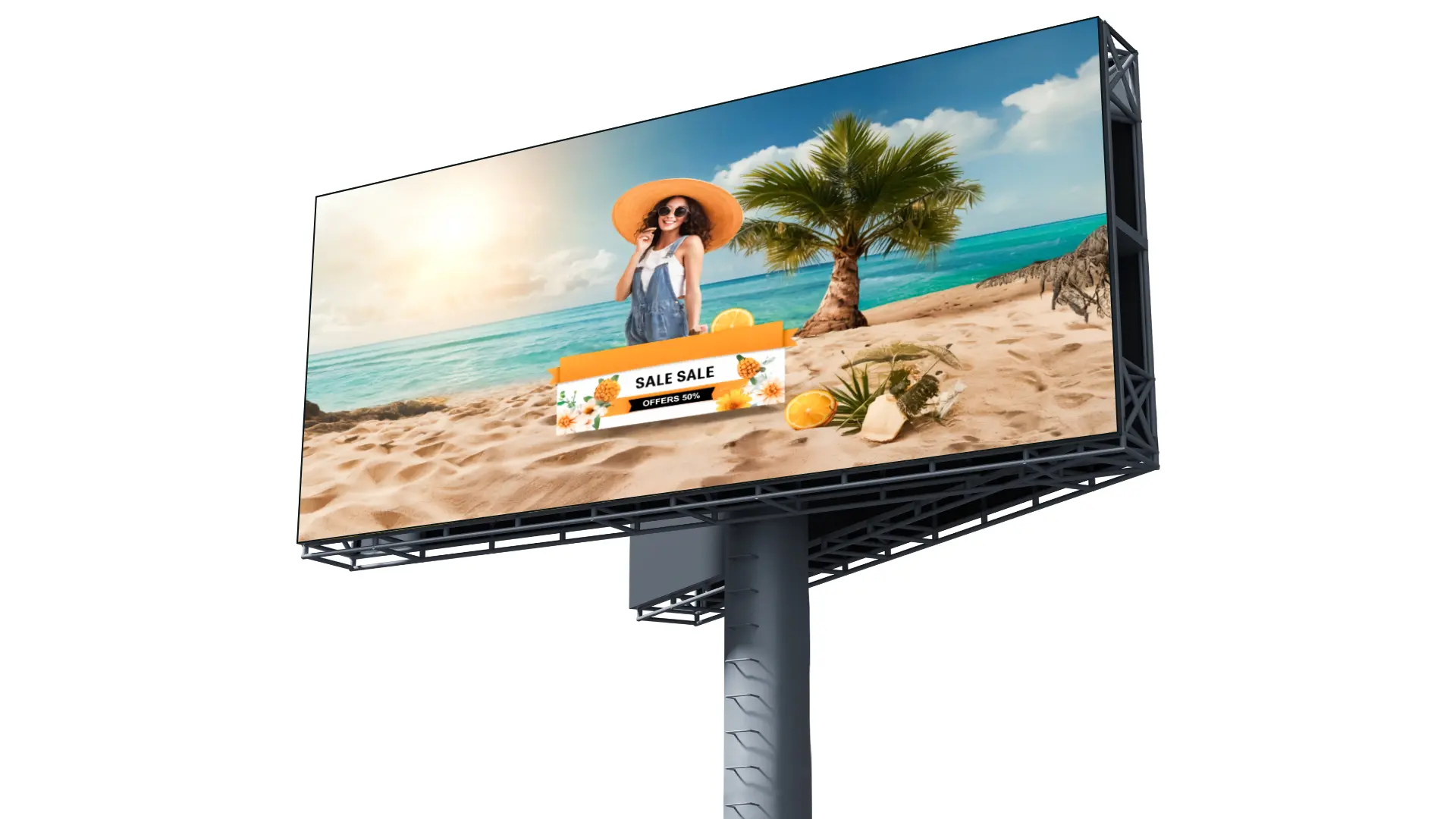

  • ApplicationOutdoor
  • Pixel Pitch (in mm)4
  • LED TypeSMD
  • LED Lifetime (In Hours)1,00,000
  • Brightness (cd/m²)5500
  • Contrast Ratio5000:1
  • Frame Rate (Hz)60
  • Refresh Rate (Hz)3840

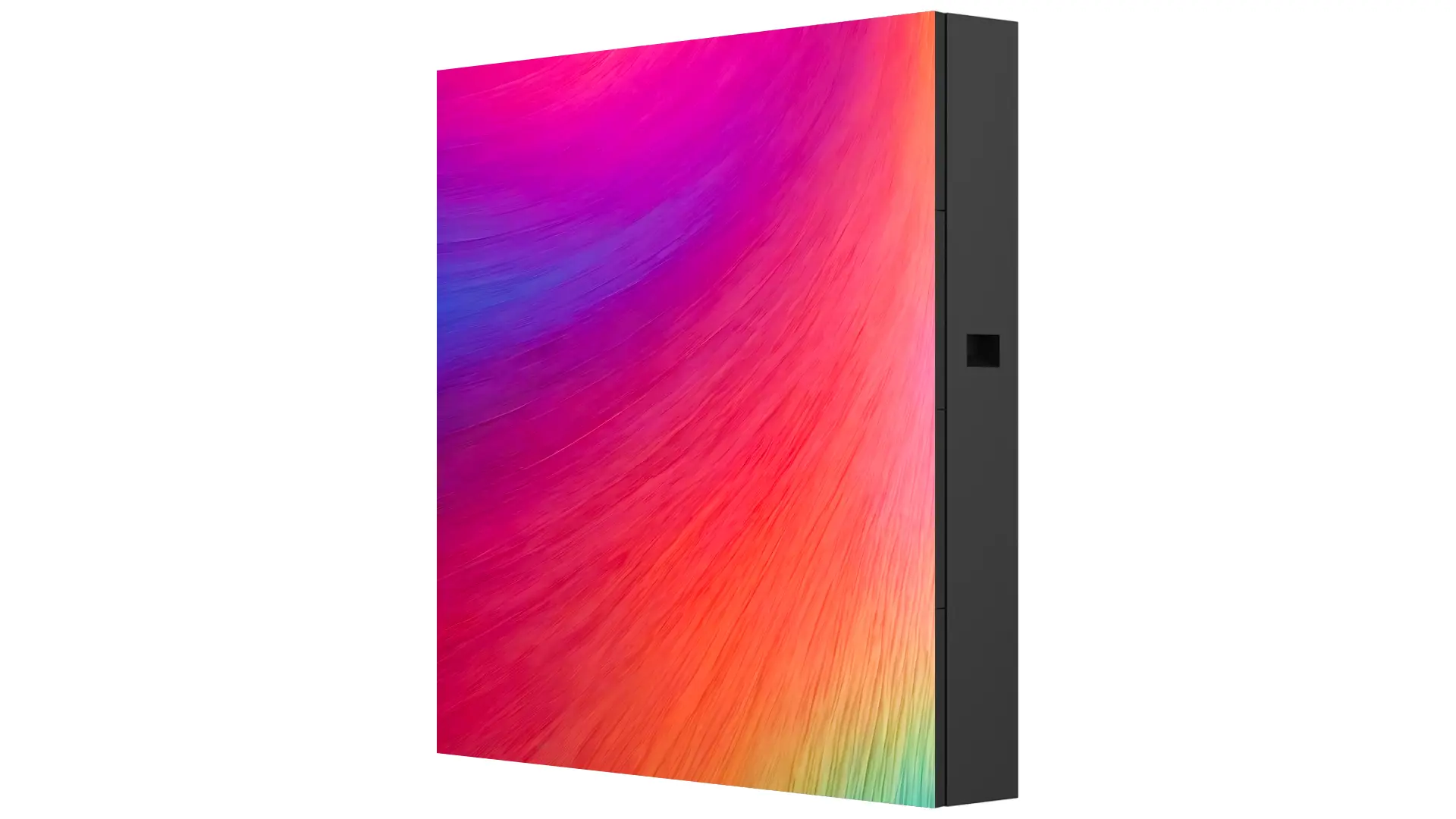

  • Cabinet MaterialMild Steel
  • Cabinet Dimension (W x H x D in mm)960 x 960 x 150
  • Module Dimension (in mm)320 x 160
  • Cabinet Resolution (W x H)240 x 240
  • Weight (kg/Cabinet)40
  • Service AccessRear
  • Optimal Viewing Angle (H/V)160° / 160°
  • Storage Temperature-40°C ~ +60°C
  • Working Temperature-20°C ~ +60°C
  • Relative Humidity0~90% RH
  • Storage Humidity0~50% RH
  • VoltageAC 100-240 V
  • Power Consumption (Avg) (in W/m²)263
  • Power Consumption (Max) (in W/m²)850
  • Heat Generation-Max (BTU/m²)2900.32
  • MTBF (in Hours)10,000
  • IP Rating (Front/Rear)IP65 / IP54
  • Grey Scale16 bit
  • Pixel Density (Pixels/m²)62,500
  • ApplicationOutdoor
  • Pixel Pitch (in mm)6
  • LED TypeSMD
  • LED Lifetime (In Hours)1,00,000
  • Brightness (cd/m²)6000
  • Contrast Ratio5000:1
  • Frame Rate (Hz)60
  • Refresh Rate (Hz)1920
  • Cabinet MaterialMild Steel
  • Cabinet Dimension (W x H x D in mm)961 x 960 x 150
  • Cabinet Resolution (W x H)192 x 192
  • Module Dimension (in mm)160 x 160
  • Weight (kg/Cabinet)40
  • Service AccessRear
  • Optimal Viewing Angle (H/V)160° / 140°
  • Storage Temperature-40°C ~ +60°C
  • Working Temperature-20°C ~ +60°C
  • Relative Humidity0~90% RH
  • Storage Humidity0~50% RH
  • VoltageAC 100-240 V
  • Power Consumption (Avg) (in W/m²)263
  • Power Consumption (Max) (in W/m²)800
  • Heat Generation-Max (BTU/m²)2729.71
  • MTBF (in Hours)10,000
  • IP Rating (Front/Rear)IP65 / IP54
  • Grey Scale16 bit
  • Pixel Density (Pixels/m²)27,777
  • ApplicationOutdoor
  • Pixel Pitch (in mm)10
  • LED TypeSMD
  • LED Lifetime (In Hours)1,00,000
  • Brightness (cd/m²)8000
  • Contrast Ratio5000:1
  • Frame Rate (Hz)60
  • Refresh Rate (Hz)1920
  • Cabinet MaterialMild Steel
  • Cabinet Dimension (W x H x D in mm)962 x 960 x 150
  • Module Dimension (in mm)320 x 160
  • Cabinet Resolution (W x H)96 x 96
  • Weight (kg/Cabinet)40
  • Service AccessRear
  • Optimal Viewing Angle (H/V)160° / 140°
  • Storage Temperature-40°C ~ +60°C
  • Working Temperature-20°C ~ +60°C
  • Relative Humidity0~90% RH
  • Storage Humidity0~50% RH
  • VoltageAC 100-240 V
  • Power Consumption (Avg) (in W/m²)256
  • Power Consumption (Max) (in W/m²)800
  • Heat Generation-Max (BTU/m²)2729.71
  • MTBF (in Hours)10,000
  • IP Rating (Front/Rear)IP65 / IP54
  • Grey Scale16 bit
  • Pixel Density (Pixels/m²)10,000

Resources

Download Datasheet
