Radiant Series
  • Features
  • Specifications
  • Resources

Features

Simplified Assembly, Fast Installation

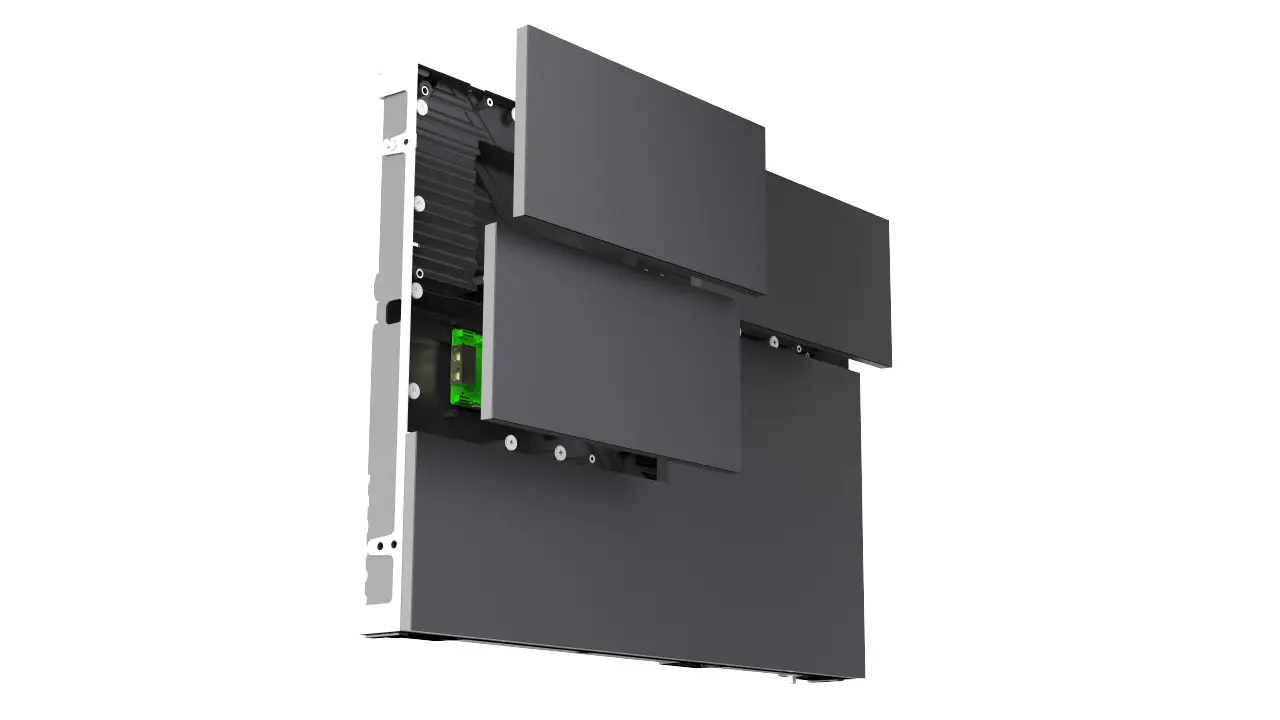

Our front-serviceable design allows for hassle-free installations with no rear access, and magnetic modules enable easy and secure fixing and removal for service. Plus, quick-release cabling ensures tool-less services..

Specifications

  • ApplicationIndoor
  • Pixel Pitch (in mm)1.5mm
  • LED TypeSMD
  • LED Lifetime (In Hours)≥100,000
  • Brightness (cd/m2)≤600 nits
  • Contrast Ratio6000:1
  • Frame Rate (Hz/sec)60
  • Refresh Rate (Hz/sec)3840
  • Cabinet Material & GradeDie-Casting Aluminum
  • Cabinet Dimension W x H x D (in mm)640 x 480 x 61
  • Module Dimension (in mm)320x160
  • Physical Resolution416x312
  • Weight (Kg/Cabinet)5.5
  • Service AccessFRONT
  • Optimal Viewing Angle (H/V)160°/160°
  • Storage Temperature-10°C ～ +50°C
  • Working Temperature-10°C ～ +40°C
  • Relative Humidity10％～80％, Non-condensing
  • Storage Humidity10％～70％, Non-condensing
  • VoltageAC：110V~240V, 50~60Hz
  • Power Consumption (Avg) (in W/m2)100-250
  • Power Consumption (Max) (in W/m2)450
  • Heat generation-Max (BTU/m2)555
  • MTBF (in hours)≥12000
  • Protection LevelIP41/IP65
  • Grey Scale13 BIT
  • Physical density422500/㎡
  • ApplicationIndoor
  • Pixel Pitch (in mm)2.5mm
  • LED TypeSMD
  • LED Lifetime (In Hours)≥100,000
  • Brightness (cd/m2)≤600 nits
  • Contrast Ratio6000:1
  • Frame Rate (Hz/sec)60
  • Refresh Rate (Hz/sec)3840
  • Cabinet Material & GradeDie-Casting Aluminum
  • Cabinet Dimension W x H x D (in mm)640 x 480 x 61
  • Module Dimension (in mm)320x160
  • Physical Resolution256x192
  • Weight (Kg/Cabinet)5.5
  • Service AccessFRONT
  • Optimal Viewing Angle (H/V)160°/160°
  • Storage Temperature-10°C ～ +50°C
  • Working Temperature-10°C ～ +40°C
  • Relative Humidity10％～80％, Non-condensing
  • Storage Humidity10％～70％, Non-condensing
  • VoltageAC：110V~240V, 50~60Hz
  • Power Consumption (Avg) (in W/m2)80-150
  • Power Consumption (Max) (in W/m2)350
  • Heat generation-Max (BTU/m2)333
  • MTBF (in hours)≥12000
  • Protection LevelIP41/IP65
  • Grey Scale12 BIT
  • Physical density160000/㎡
