GL-AOC-H100MM

GRAND LOGIC PROFESSIONAL AV CABLES

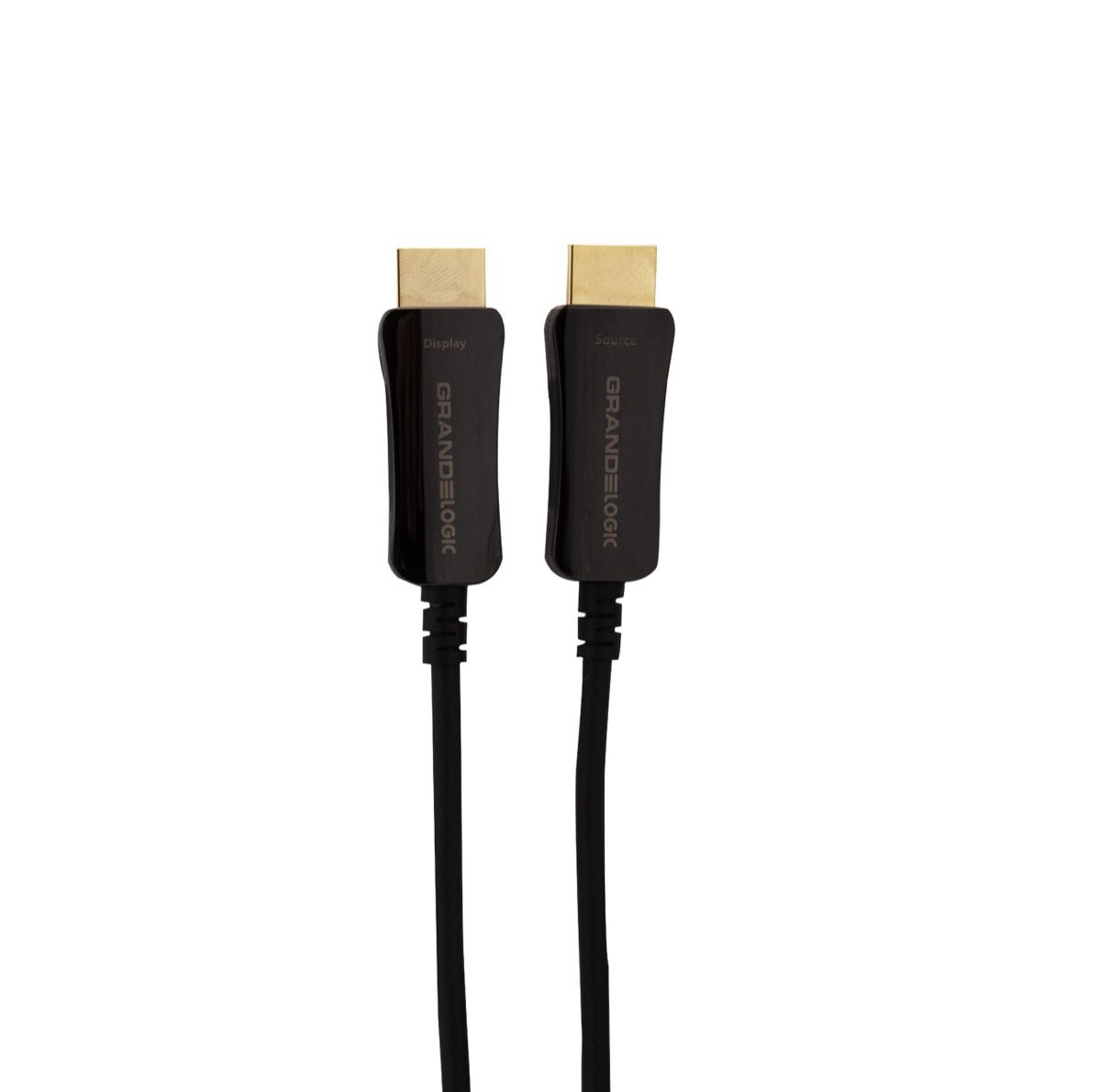

With 24k gold-flash HDMI Connectors, this cable supports resolutions up to 4K@60 Hz(2160p) over an active optical link to extend to longer distances.

Features

  • Type-A HDMI Male to Type-A HDMI Male Active Optical Cable
  • Supports 2.0V with a data transfer rate 18 Gbps
  • Supports Max. 4K@60Hz Resolutions with a Chroma Sampling 4:4:4
  • Supports HDCP 2.2, EDID, CEC, 3D
  • Uni-Directional Signal Transmission

Specifications

  • Resolution & Refresh rate 3840×2160 @ 60Hz
  • Frame rate 24, 25, 30, 50, 60
  • Chroma sampling 4:4:4, 4:2:2, 4:2:0
  • Color bit depth 8 and 12 bits per color
  • Max. video data rate 18 Gbps
  • Ethernet Channel Compatible
  • Signal Transmission Unidirectional

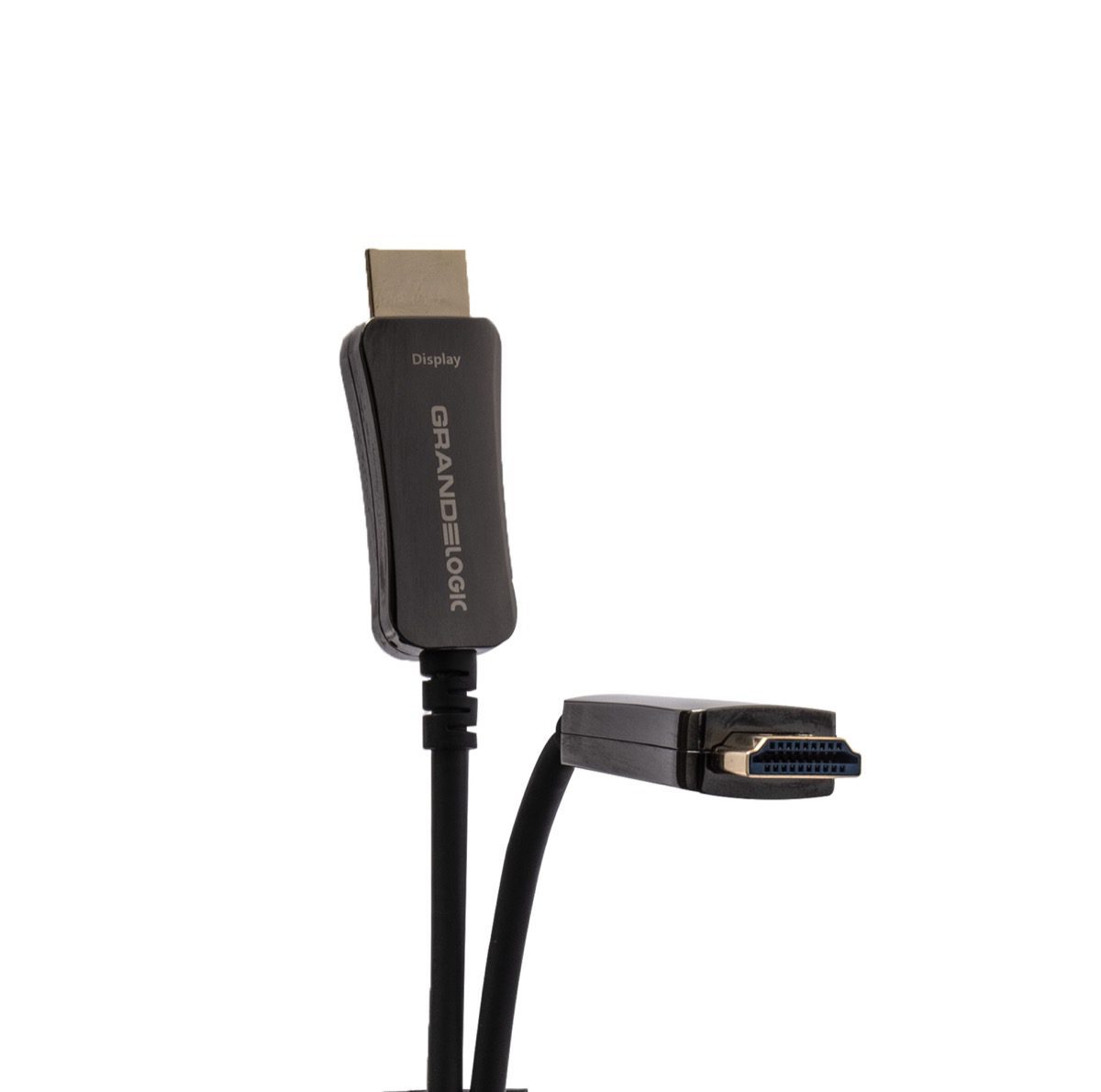

  • Marking Source & Display

Performance

  • Resolution range Up to 4K @ 60 Hz (4096×2160), UHD @ 60 Hz (3840×2160) 8 bit color depth, max. 18 Gbps data rate
  • Voltage 30 V
  • Conductor Resistance 400 Ω/km
  • HDMI 2.0 V
  • HDCP 2.2
  • EDID Compatible
  • CEC Compatible
  • Audio Return Channel Compatible
  • 3D Compatible @ 1080P
  • Embedded Audio Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio™, DVD Audio, SA-CD
  • Max. Audio Sampling rate 24 bits

General – Physical Parameters

  • Connector Type Male type A HDMI to male type A HDMI
  • Contacts Gold flash

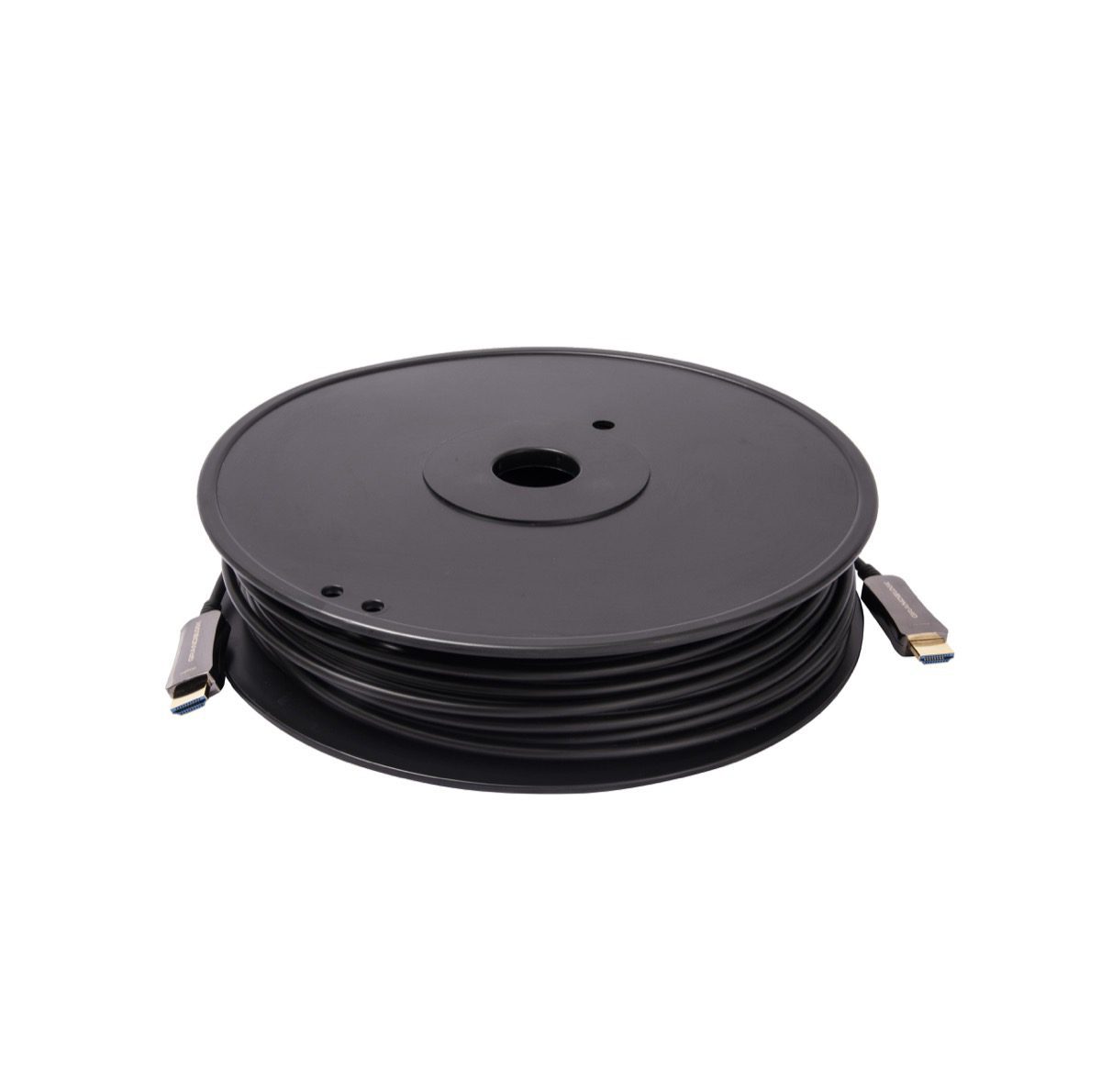

  • Cable Length 100m (328 ft)
  • Temperature Rating 80 °C
  • AWG 24
