HDMI (Detachable Connectors)

GL-AOC-H10MM-8K

HDMI AOC CABLES ( DETACHABLE CONNECTOR TYPE )

With 24k gold-flash HDMI Connectors, this cable supports resolutions up to 8K@60Hz(2160p) over an active optical link to extend to longer distances.

Features

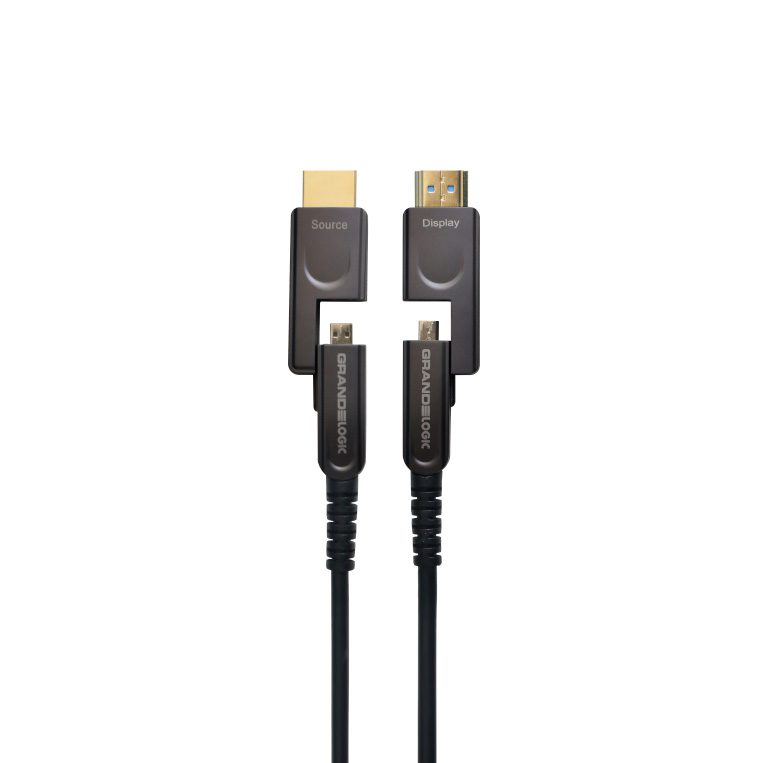

  • Type-A HDMI Male to Type-A HDMI Male (HDMI Type-D Male to HDMI Type-D Male with Detachable connectors / Type-D Female to Type-D Female)
  • Supports 2.1V with a data transfer rate 48 Gbps
  • Supports Max. 8K@60Hz Resolutions with a Chroma Sampling 4:4:4
  • Supports HDCP 2.3, EDID, CEC, 3D
  • Uni-Directional Signal Transmission

Specifications

  • Model Number GL-AOC-H10MM-8K
  • Description GrandLogic HDMI Active Cable 10 m Male to Male
  • Resolution & Refresh rate 7680 x 4320@60Hz
  • Frame rate 8K@60 Hz
  • Chroma sampling 4:4:4
  • Min & Max Colour Bit Depth 8 Bit & 10 Bit
  • Max. video data rate 48 Gbps
  • Ethernet Channel Compatible
  • ARC Compatible
  • Signal Transmission Unidirectional

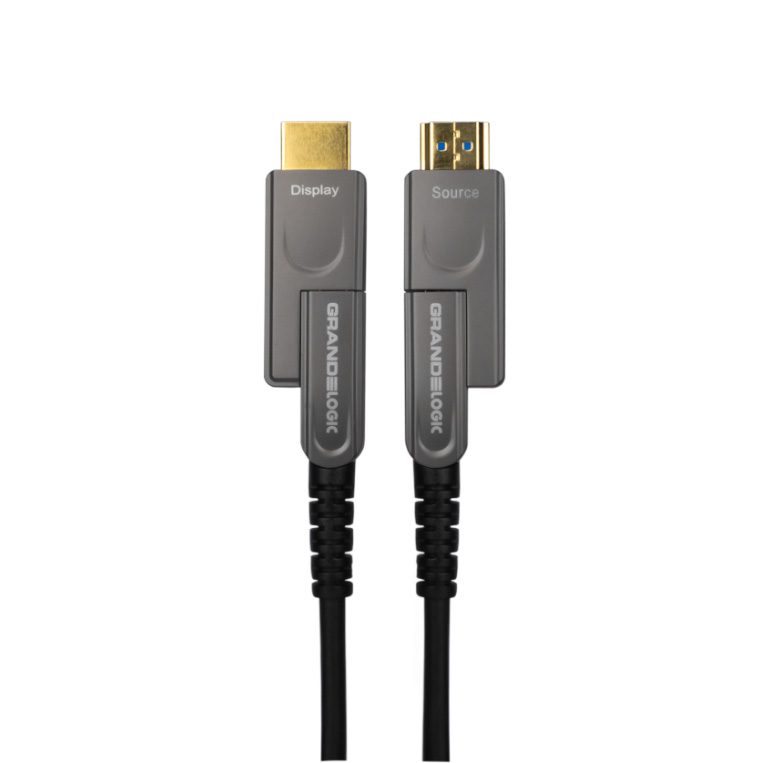

  • Marking SOURCE & DISPLAY

Performance

  • Resolution range Upto 8k@60Hz (7680 x 4320), 4K@60Hz (4096 x 2160)
  • Voltage Max 5.5V
  • HDMI 2.1
  • HDCP 2.3
  • EDID Compatible
  • CEC Compatible
  • 3D Compatible
  • Embedded Audio Dolby True HD, DTS-HD Master Audio
  • Max. Audio Sampling rate 1536KHz

General – Physical Parameters

  • Connector Type HDMI Type-A Male to Type-A Male ( HDMI Type-D Male to Type-D Male with Detachable connectors / Type-D Female to Type-D Female )
  • Contacts Gold flash

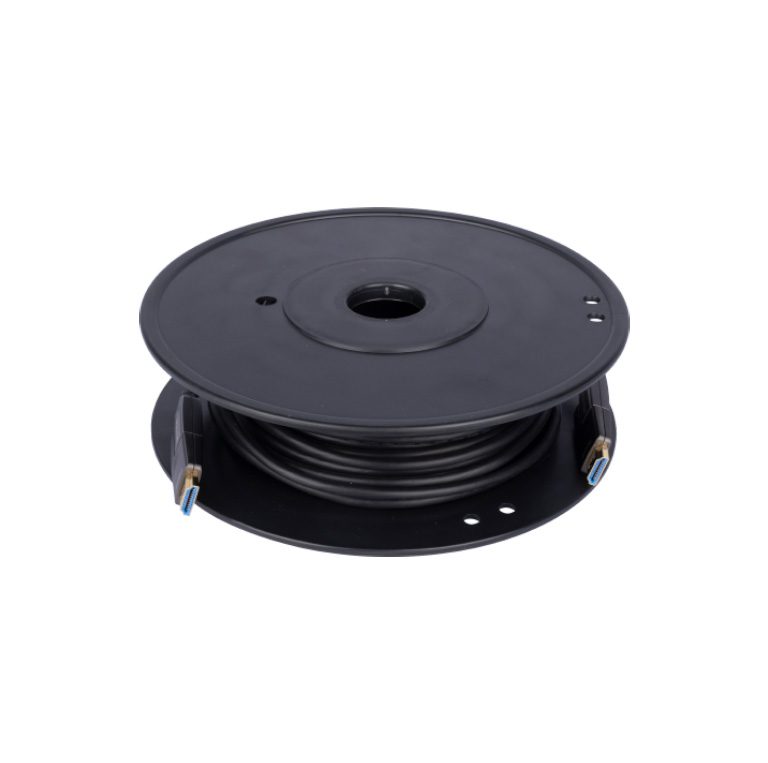

  • Cable Length 10m (32.80ft)
  • Temperature Rating 50 °C
