USB Type A Male to Type A Male

GL-PR-H10MM-4K

GRAND LOGIC PROFESSIONAL AV CABLES

With 24k gold-flash HDMI Connectors, this cable supports resolutions up to 4K@60 Hz(2160p) and both ARC and CEC

Features

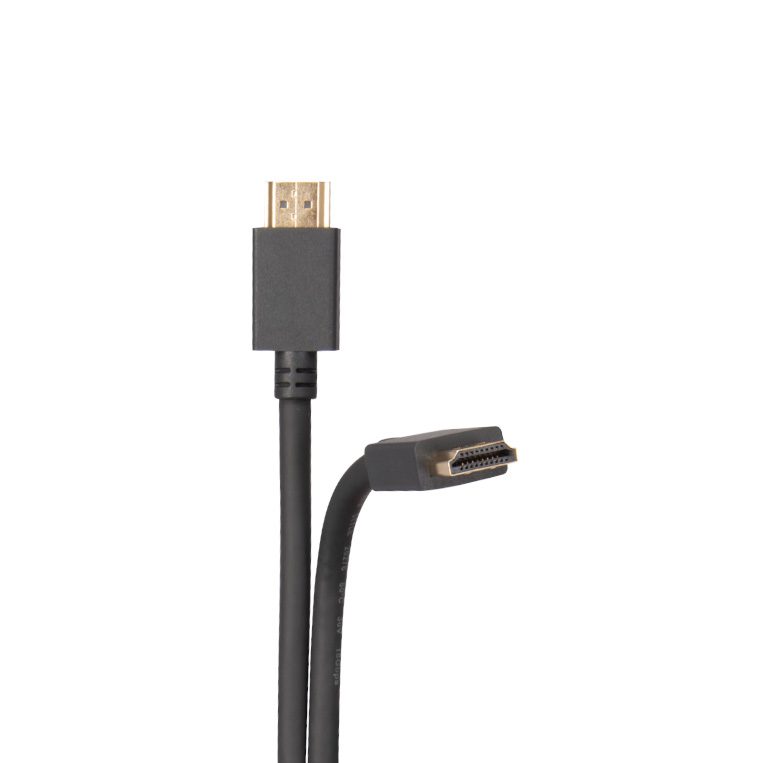

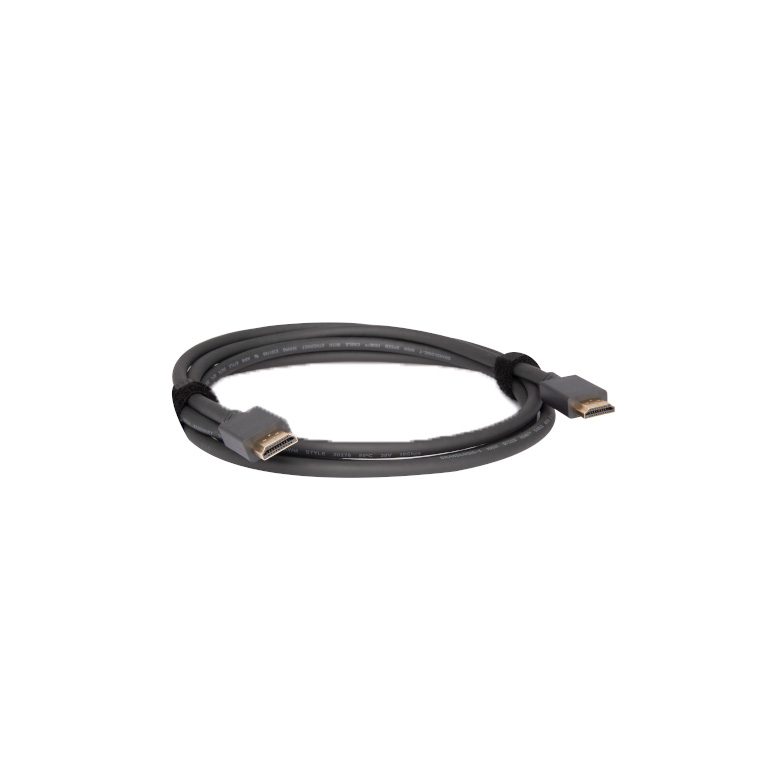

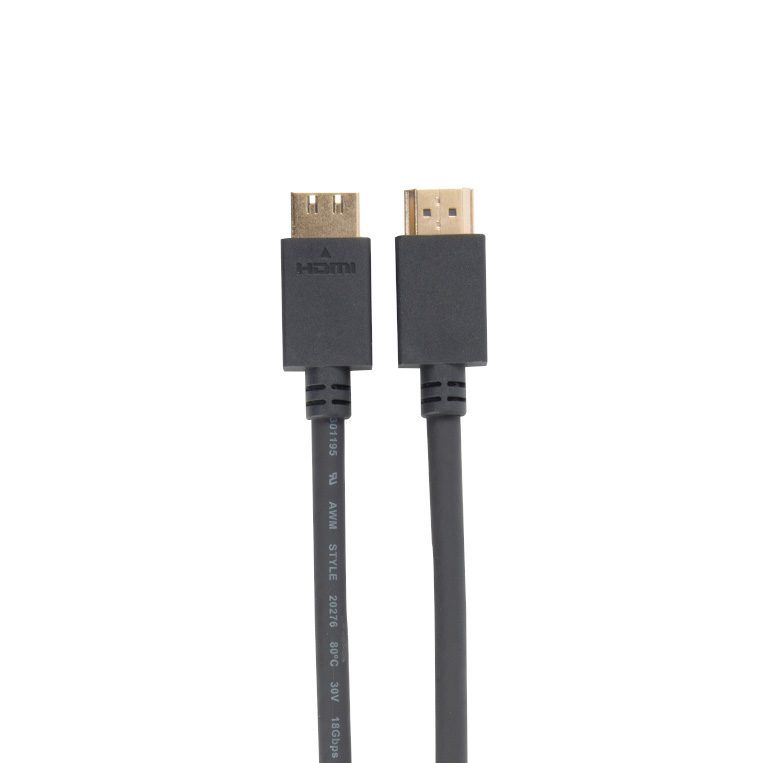

  • Type-A HDMI Male to Type-A HDMI Male Copper Cable
  • Supports 2.0V with a data transfer rate 18 Gbps
  • Supports Max. 4K@60Hz Resolutions with a Chroma Sampling 4:4:4
  • Supports HDCP 2.2, EDID, CEC
  • Bi-Directional Signal Transmission

Specifications

  • Model Number GL-PR-H10MM-4K
  • Description GRAND LOGIC HDMI 10m Male to Male – 4K
  • Resolution & Refresh Rate 3840×2160 @ 30Hz
  • Frame Rate 24, 25, 30
  • Chroma sampling 4:4:4
  • Color bit depth 8 and 12 bits per color
  • Max. video data rate 18 Gbps
  • Ethernet Channel Compatible
  • Signal Transmission Unidirectional
  • Marking SOURCE & DISPLAY

Performance

  • Resolution range Up to 4K @ 30 Hz (3840×2160), FHD @ 60 Hz (1920×1080) 8 bit color depth, max. 18 Gbps data rate
  • Voltage 30 V
  • Conductor Resistance 400Œ©/km
  • HDMI 2.0
  • HDCP 2.2
  • EDID Compatible
  • CEC Compatible
  • 3D Compatible @ 1080P
  • Max. LPCM Audio Channels 8 channels
  • Max. Audio Sampling rate 24 bits

General – Physical Parameters

  • Connector Type Male type A HDMI to Male type A HDMI
  • Contacts Gold flash
  • Cable Length 10m (32.8ft)
  • Temperature Rating 80 ℃
  • AWG 28
