USB Type A Male to Type A Male

GL-PR-H1.8MM-8K

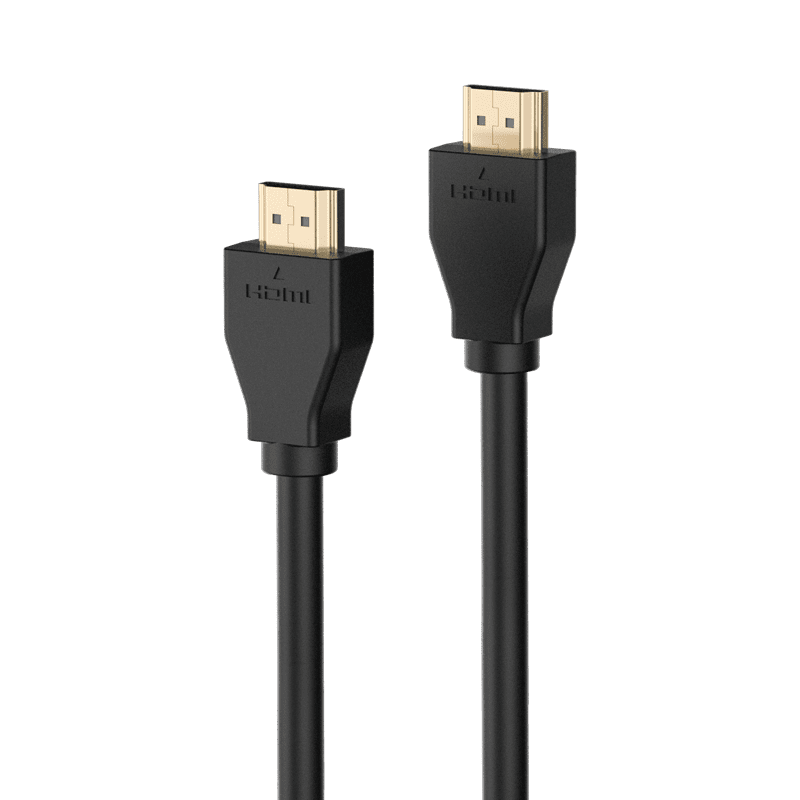

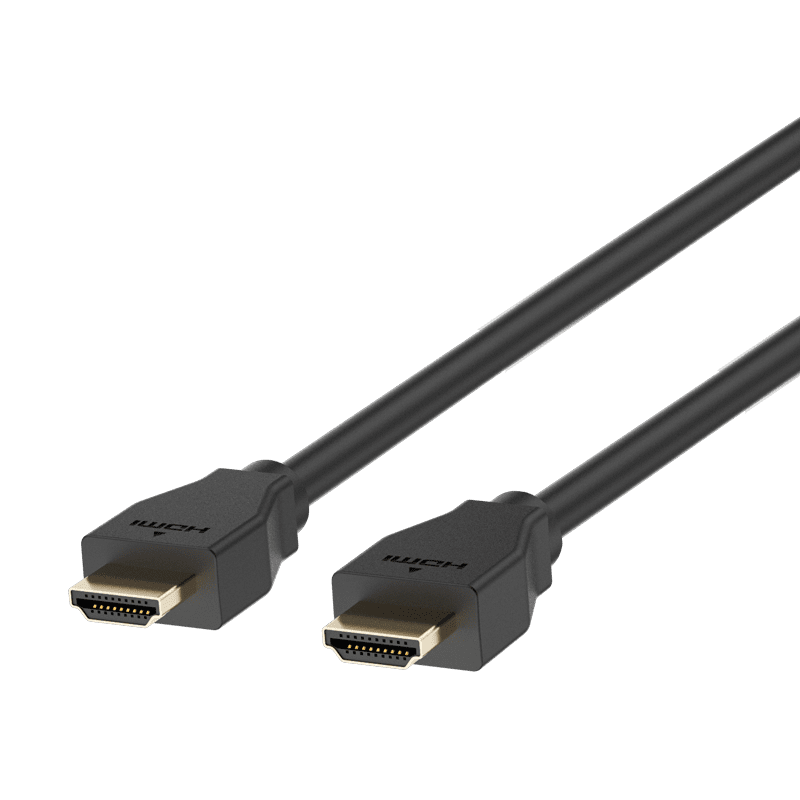

Grand Logic HDMI Cable 1.8 m

Male to Male Copper Cable – 8K

Features

  • Type-A HDMI Male to Type-A HDMI Male Copper Cable
  • Supports 2.1V with a data transfer rate 48 Gbps
  • Supports Max. 8K@60Hz Resolutions with a Chroma Sampling 4:4:4
  • Supports HDCP 2.3, EDID
  • Bi-Directional Signal Transmission

Specifications

  • Resolution & Refresh Rate 7680 x 4320 @60Hz or 4K@120Hz
  • Frame Rate 23, 25, 30, 50, 60 or 120 fps
  • Chroma sampling 4:4:4, 4:2:2, 4:2:0
  • Color bit depth 8 and 12 bits per color
  • Max. video data rate 48 Gbps
  • Ethernet Channel Compatible
  • Signal Transmission Bi-Directional

Performance

  • Resolution range Up to 8K@60Hz (7680 x 4320), 4K@60Hz (4096 x 2160)
  • Voltage 30 V
  • Conductor Resistance <381Ω/km
  • HDMI V 2.1
  • HDCP 2.3 V
  • EDID Compatible
  • CEC Compatible
  • 3D Compatible
  • Max. LPCM Audio Channels 32 channels
  • Max. Audio Sampling rate 1536 KHz

General – Physical Parameters

  • Connector Type Male Type A HDMI to Male Type A HDMI
  • Contacts Gold plated
  • Cable Length 1.8 m
  • Temperature Rating 80 ℃
  • Material Bare Copper
  • Jacket PVC
  • AWG 30
