HX Series

Launchpad for Young Minds

Discover the HX Series, a Google EDLA-certified interactive display built for classrooms, boardrooms and online teaching, with 4K ultra-clear visuals and a full multi-touch experience.

Quick Inquiry

4K Ultra-Clear Visuals and Precision

The IFPD supports a stunning 3840x2160 resolution with a 4K UI and 4K annotation, delivering ultra-clear visuals and precise detailing. This high-definition display ensures exceptional clarity for presentations, annotations, and multimedia, enhancing both productivity and engagement.

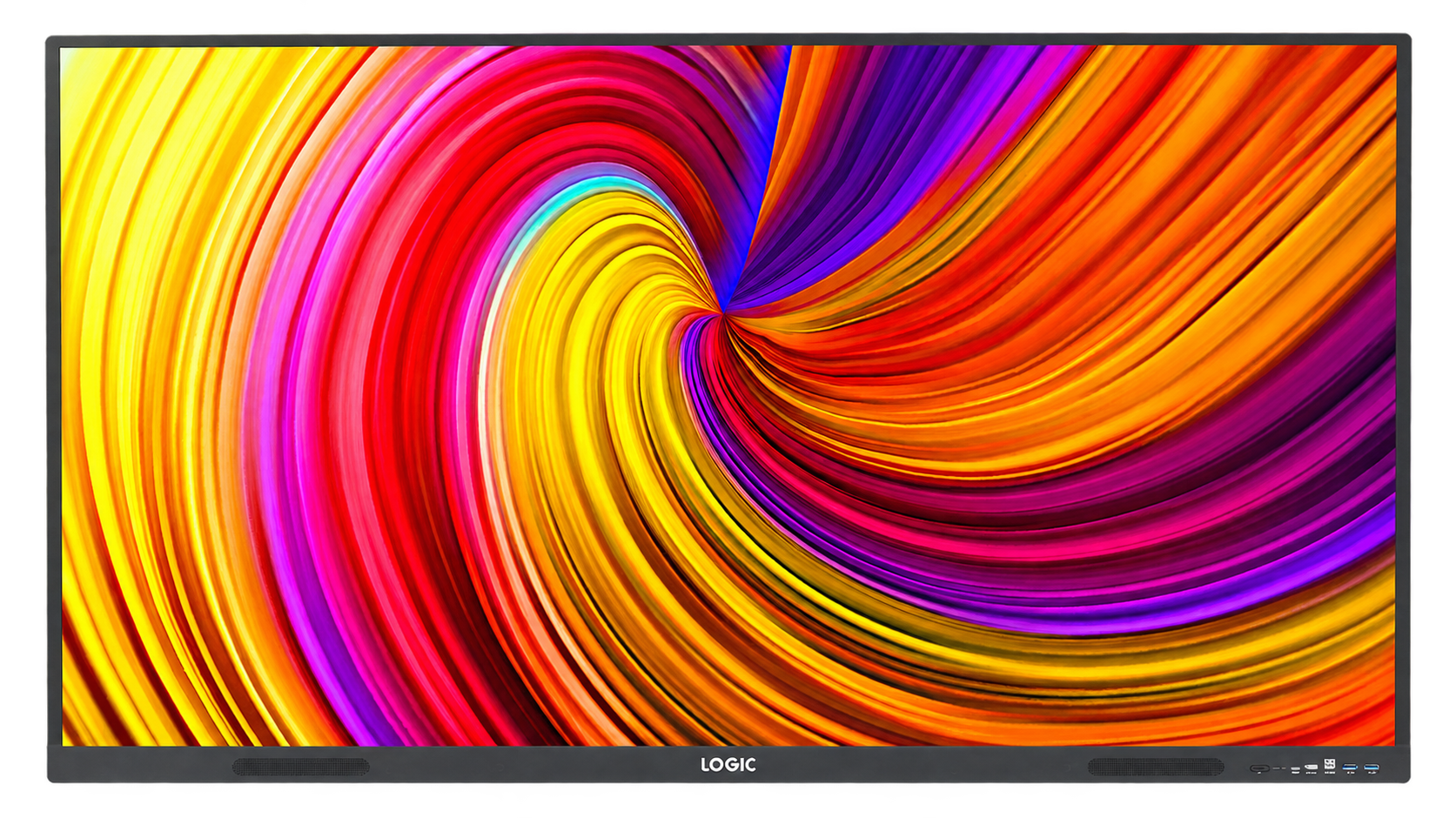

HX Series 4K UHD display showing vivid swirling colours

Google EDLA Certified

4K Ultra HD Display

Device Management System

Wireless Screen Share

Google EDLA Certified

4K Ultra HD Display

Device Management System

Wireless Screen Share

Collaboration

Wireless Sharing, Limitless Collaboration

The IFPD's built-in wireless sharing application allows seamless content sharing across up to 9 screens simultaneously, regardless of the operating system. Teams can easily share media, photos, documents, and even live camera feeds, enhancing real-time collaboration. Users can also sync their desktop for full-screen mirroring, making presentations and group work more efficient and dynamic. This cross-platform compatibility ensures smooth interactions between different devices without the need for additional cables or adapters.

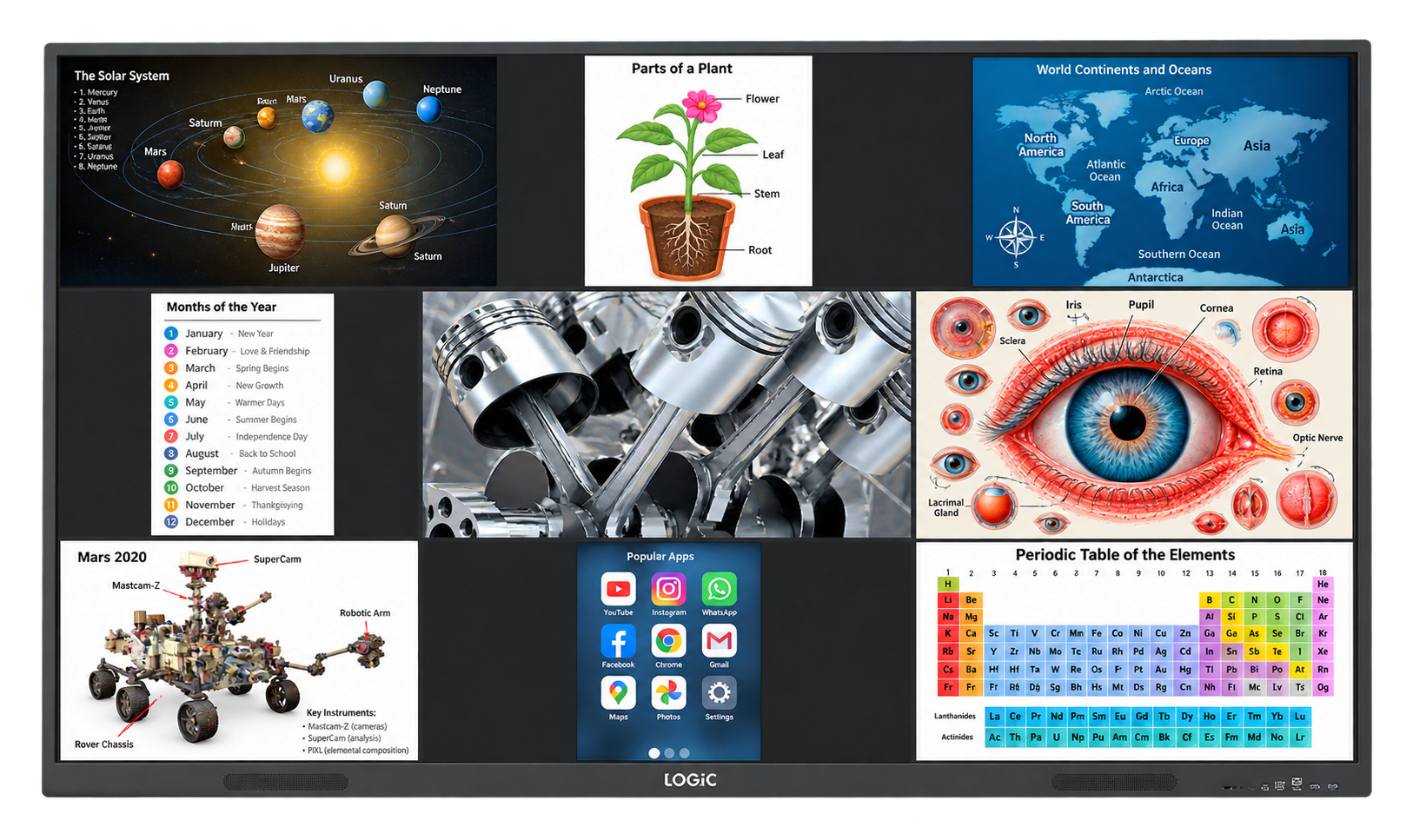

Nine screens showing different content shared wirelessly to the HX Series display
Laptop, tablet, iPad and mobile devices connected to the HX Series display

Note Pro: Revolutionizing Ideas with Digital Innovation

SMART WORKSPACE

Your Ideas, Limitless Canvas

The built-in Note Pro application revolutionizes collaboration, creativity, and productivity by blending the ease of a traditional whiteboard with advanced digital tools. This dynamic platform enhances ideation, planning, and communication for a seamless user experience.

Handwriting Recognition
Geometric Tools
Translate & Text-to-Speech
NOTE PRO

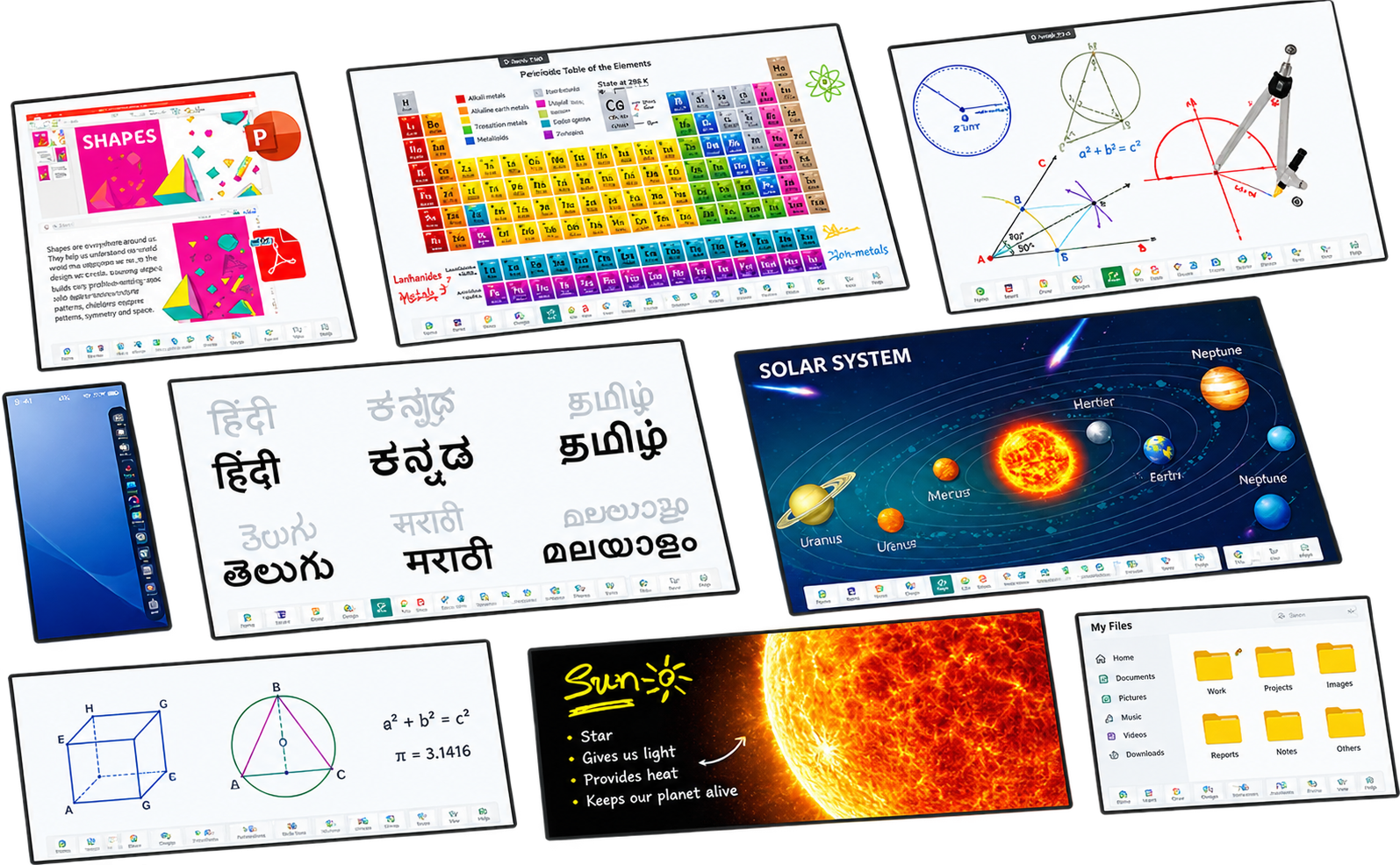

Note Pro on the HX Series showing shapes, the periodic table, geometry tools, regional languages and the solar system

Note Pro

Your ideas, limitless canvas.

Advanced Search

Seamlessly explore images and videos with powerful search capabilities.

Versatile Content Import

Effortlessly import files such as PPT, PDF, audio, video, notebooks, and flipcharts to enhance learning sessions.

Subject-Specific Simulation Tools

Utilize tools designed for various subjects to enrich interactive teaching experiences.

Regional Language Compatibility

Support for multiple regional languages, ensuring inclusivity and accessibility.

Effortless Note-Taking

Easily capture and share notes through QR codes in both image and PDF formats, simplifying the process for students and educators alike.

On-Board Geometric Tools

Access a variety of built-in geometric tools directly on the board for precise shapes, measurements, and diagrams.

Text-to-Speech Integration

Enable on-board text-to-speech functionality to cater to diverse learning needs.

Translate Feature

Instantly translate content into multiple languages, making learning accessible to a diverse audience.

Gamified Quizzes Creation

Design engaging quizzes with the activity tool to create interactive and fun learning experiences.

Cloud Storage

Convenient cloud storage options for saving and accessing resources anytime, anywhere.

Built-in 2D & 3D Shapes

Includes pre-built 2D and 3D shape libraries for dynamic content creation.

NCERT e-Book Integration

Direct access to built-in NCERT e-books for seamless curriculum alignment.

GeoGebra Mathematics Tool

Integrated dynamic mathematics tool for advanced mathematical learning and visualization.

150+ Additional Features

Explore a comprehensive suite of tools to enhance teaching and learning experiences.

Advanced Monitoring, Simplified Control

Device Management System illustration
Device Management System

The web-based software provides advantageous solutions to handle your interactive flat panels. You can enjoy multiple management functions which include real-time monitoring, panel grouping, brightness & volume control, flashing the notification & multimedia messages in one go and many more functions.

Impressive Data Insights and Analytics illustration
Impressive Data Insights & Analytics

View the operations information for each device in a straightforward interface. Using a web-based DMS application you can collect statistics for useful insights or to inspect panels for errors.

Unified Control, Instant Notifications

Manage all applications effortlessly from a single interface with absolute control. Enable, disable, install, and update apps across multiple panels simultaneously with quick remote access. Instantly share important notifications without interrupting ongoing classes, ensuring smooth and uninterrupted learning.

HX Series displays broadcasting an instant class notification

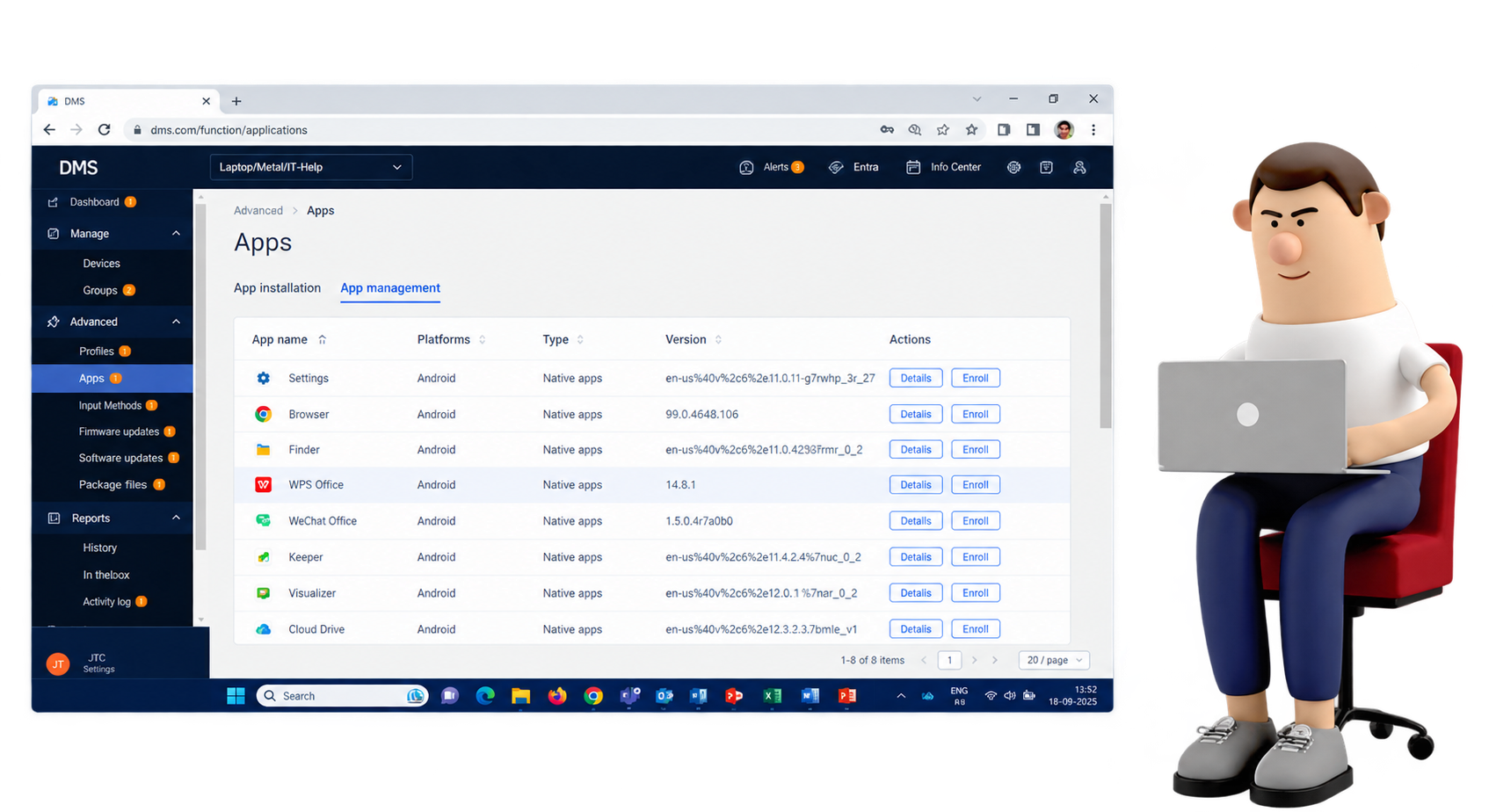

Device Management System dashboard showing app management

Product Specification

Display
MODEL LT-IR65HX
Size 65 Inch
Panel Type VA
Back Light Unit DLED
Response Time 6.5ms
Aspect Ratio 16:09
Display Area (H x V) 1428.48 x 803.52 mm
Pixel Pitch 0.372 x 0.372 mm
Resolution 3840 x 2160
Refreshing Frequency 60Hz
Display Color 1.07B
Bit Rate 10 bit
NTSC Gamut 72%
Surface Hardness 4mm Anti-Glare (Toughened Glass)
Contrast Ratio 5000:1
Viewing Angle 178° (H/V)
Brightness with glass (min) 400 cd/m²
Brightness with glass (typ) 450 cd/m²
Life Time ≥50000 Hours
Operating System
System Version Android 14.0
RAM 8 GB
ROM 128 GB On-Board + (Expandable Memory up to 256/512GB)
CPU ARM Core Cortex-A73 x 4
GPU Mali G52 MC1
Touch System
Sensing Type Infrared recognition
Touch Recognition Passive stylus
Response Time ≤8ms
Accuracy ±1.5mm
Touch Point 40
Writing Point 20
Minimum Object Size 3mm
Writing Height ≤2mm
Interpolation Resolution (WxH) 32768 x 32768
Gesture Support Yes
Supporting OS Windows 11 / Windows 10 / Windows 8 / Windows 7 / Windows XP / Linux / Mac OS X / Android / Chrome
Audio
Audio Output 2.0
Output Power (Typ) 2 x 16W
Output Power (Max) 2 x 20W
Power
Power Supply 100-240V~ 50/60Hz 4.0A
Power Consumption (Typ/Max) 180W / 335W
I/O Interface
Standby Power ≤0.5W
HDMI IN 3
HDMI OUT 1
USB 2.0 2
USB Player (Media) type-C (65W) 2
USB 3.0 3
TOUCH 2.0 3
VGA IN 1
DP IN 1
AUDIO IN 1
AUDIO OUT 1
SPDIF 1
RS232 1
RJ45 IN 1
RJ45 OUT 1
TF Card 1
Physical Specifications
Product Dimension (L x H x D) 1491 x 898 x 87 mm
Package Dimension (L x W x H) 1628 x 185 x 1005 mm
VESA 600 x 400 mm
Net Weight 36.15 Kg
Accessories
Gross Weight 41.70 Kg
Power Cord 1
HDMI Cable 1
USB Touch Cable (Type A-B) 1
Remote Control 1
Wall Mount Bracket 1
Writing Pen / Stylus 1 Pair SW30
Environmental Conditions
Wireless Module Wi-Fi 802.11ax/ac (2.4 GHz/5 GHz)
Bluetooth (5.2) Yes
Operation Temperature 0°C - 40°C
Operation Humidity 10% - 90% RH
Storage Temperature -20°C - 60°C
Storage Humidity 10% - 90% RH
Optional PC Module
Altitude Up to 5000 meters
PC Module OPS
Certification
Certification BIS, ROHS
Display
MODEL LT-IR75HX
Size 75 Inch
Panel Type VA
Back Light Unit DLED
Response Time 6.5ms
Aspect Ratio 16:09
Display Area (H x V) 1650.24 x 928.26 mm
Pixel Pitch 0.42975 x 0.42975 mm
Resolution 3840 x 2160
Refreshing Frequency 60Hz
Display Color 1.07B
Bit Rate 10 bit
NTSC Gamut 72%
Surface Hardness 4mm Anti-Glare (Toughened Glass)
Contrast Ratio 5000:1
Viewing Angle 178° (H/V)
Brightness with glass (min) 400 cd/m²
Brightness with glass (typ) 450 cd/m²
Life Time ≥50000 Hours
Operating System
System Version Android 14.0
RAM 8 GB
ROM 128 GB On-Board + (Expandable Memory up to 256/512GB)
CPU ARM Core Cortex-A73 x 4
GPU Mali G52 MC1
Touch System
Sensing Type Infrared recognition
Touch Recognition Passive stylus
Response Time ≤8ms
Accuracy ±1.5mm
Touch Point 40
Writing Point 20
Minimum Object Size 3mm
Writing Height ≤2mm
Interpolation Resolution (WxH) 32768 x 32768
Gesture Support Yes
Supporting OS Windows 11 / Windows 10 / Windows 8 / Windows 7 / Windows XP / Linux / Mac OS X / Android / Chrome
Audio
Audio Output 2.0
Output Power (Typ) 2 x 16W
Output Power (Max) 2 x 20W
Power
Power Supply 100-240V~ 50/60Hz 4.0A
Power Consumption (Typ/Max) 230W / 385W
I/O Interface
Standby Power ≤0.5W
HDMI IN 3
HDMI OUT 1
USB 2.0 2
USB Player (Media) type-C (65W) 2
USB 3.0 3
TOUCH 2.0 3
VGA IN 1
DP IN 1
AUDIO IN 1
AUDIO OUT 1
SPDIF 1
RS232 1
RJ45 IN 1
RJ45 OUT 1
TF Card 1
Physical Specifications
Product Dimension (L x H x D) 1712 x 1022 x 87 mm
Package Dimension (L x W x H) 1863 x 225 x 1148 mm
VESA 800 x 400 mm
Net Weight 49.15 Kg
Accessories
Gross Weight 56.60 Kg
Power Cord 1
HDMI Cable 1
USB Touch Cable (Type A-B) 1
Remote Control 1
Wall Mount Bracket 1
Writing Pen / Stylus 1 Pair SW30
Environmental Conditions
Wireless Module Wi-Fi 802.11ax/ac (2.4 GHz/5 GHz)
Bluetooth (5.2) Yes
Operation Temperature 0°C - 40°C
Operation Humidity 10% - 90% RH
Storage Temperature -20°C - 60°C
Storage Humidity 10% - 90% RH
Optional PC Module
Altitude Up to 5000 meters
PC Module OPS
Certification
Certification BIS, ROHS
Display
MODEL LT-IR86HX
Size 86 Inch
Panel Type IPS
Back Light Unit DLED
Response Time 8ms
Aspect Ratio 16:09
Display Area (H x V) 1895.04 x 1065.96 mm
Pixel Pitch 0.4935 x 0.4935 mm
Resolution 3840 x 2160
Refreshing Frequency 60Hz
Display Color 1.07B
Bit Rate 10 bit
NTSC Gamut 72%
Surface Hardness 4mm Anti-Glare (Toughened Glass)
Contrast Ratio 5000:1
Viewing Angle 178° (H/V)
Brightness with glass (min) 400 cd/m²
Brightness with glass (typ) 450 cd/m²
Life Time ≥50000 Hours
Operating System
System Version Android 14.0
RAM 8 GB
ROM 128 GB On-Board + (Expandable Memory up to 256/512GB)
CPU ARM Core Cortex-A73 x 4
GPU Mali G52 MC1
Touch System
Sensing Type Infrared recognition
Touch Recognition Passive stylus
Response Time ≤8ms
Accuracy ±1.5mm
Touch Point 40
Writing Point 20
Minimum Object Size 3mm
Writing Height ≤2mm
Interpolation Resolution (WxH) 32768 x 32768
Gesture Support Yes
Supporting OS Windows 11 / Windows 10 / Windows 8 / Windows 7 / Windows XP / Linux / Mac OS X / Android / Chrome
Audio
Audio Output 2.0
Output Power (Typ) 2 x 16W
Output Power (Max) 2 x 20W
Power
Power Supply 100-240V~ 50/60Hz 4.0A
Power Consumption (Typ/Max) 245W / 400W
I/O Interface
Standby Power ≤0.5W
HDMI IN 3
HDMI OUT 1
USB 2.0 2
USB Player (Media) type-C (65W) 2
USB 3.0 3
TOUCH 2.0 3
VGA IN 1
DP IN 1
AUDIO IN 1
AUDIO OUT 1
SPDIF 1
RS232 1
RJ45 IN 1
RJ45 OUT 1
TF Card 1
Physical Specifications
Product Dimension (L x H x D) 1957 x 1159.9 x 97.4 mm
Package Dimension (L x W x H) 2110 x 225 x 1291 mm
VESA 800 x 600 mm
Net Weight 53.55 Kg
Accessories
Gross Weight 63.75 Kg
Power Cord 1
HDMI Cable 1
USB Touch Cable (Type A-B) 1
Remote Control 1
Wall Mount Bracket 1
Writing Pen / Stylus 1 Pair SW30
Environmental Conditions
Wireless Module Wi-Fi 802.11ax/ac (2.4 GHz/5 GHz)
Bluetooth (5.2) Yes
Operation Temperature 0°C - 40°C
Operation Humidity 10% - 90% RH
Storage Temperature -20°C - 60°C
Storage Humidity 10% - 90% RH
Optional PC Module
Altitude Up to 5000 meters
PC Module OPS
Certification
Certification BIS, ROHS

** Images used are for illustration purposes only.
