FLOOR MOUNT TROLLEY

  • Features
  • Specifications
  • Resources

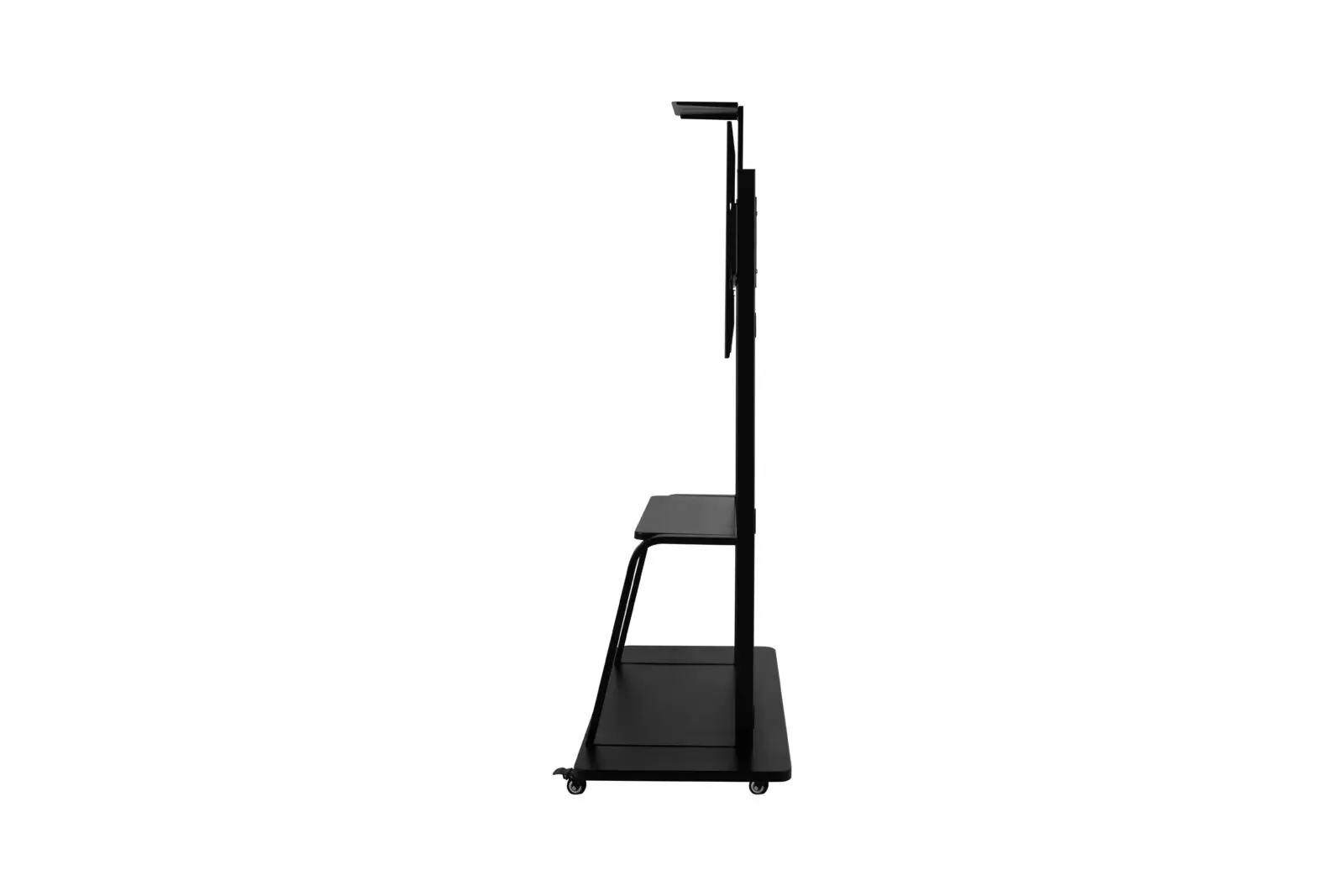

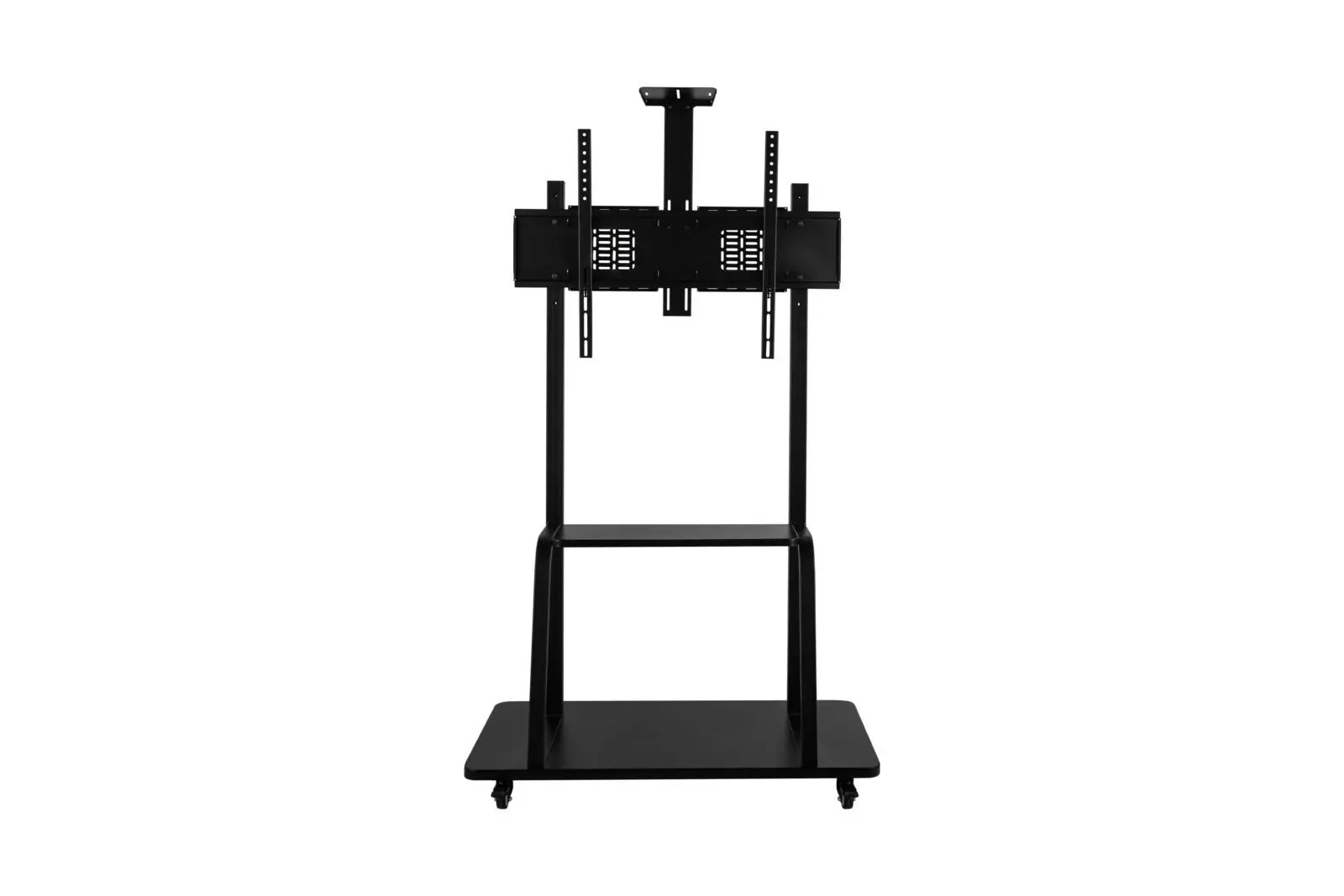

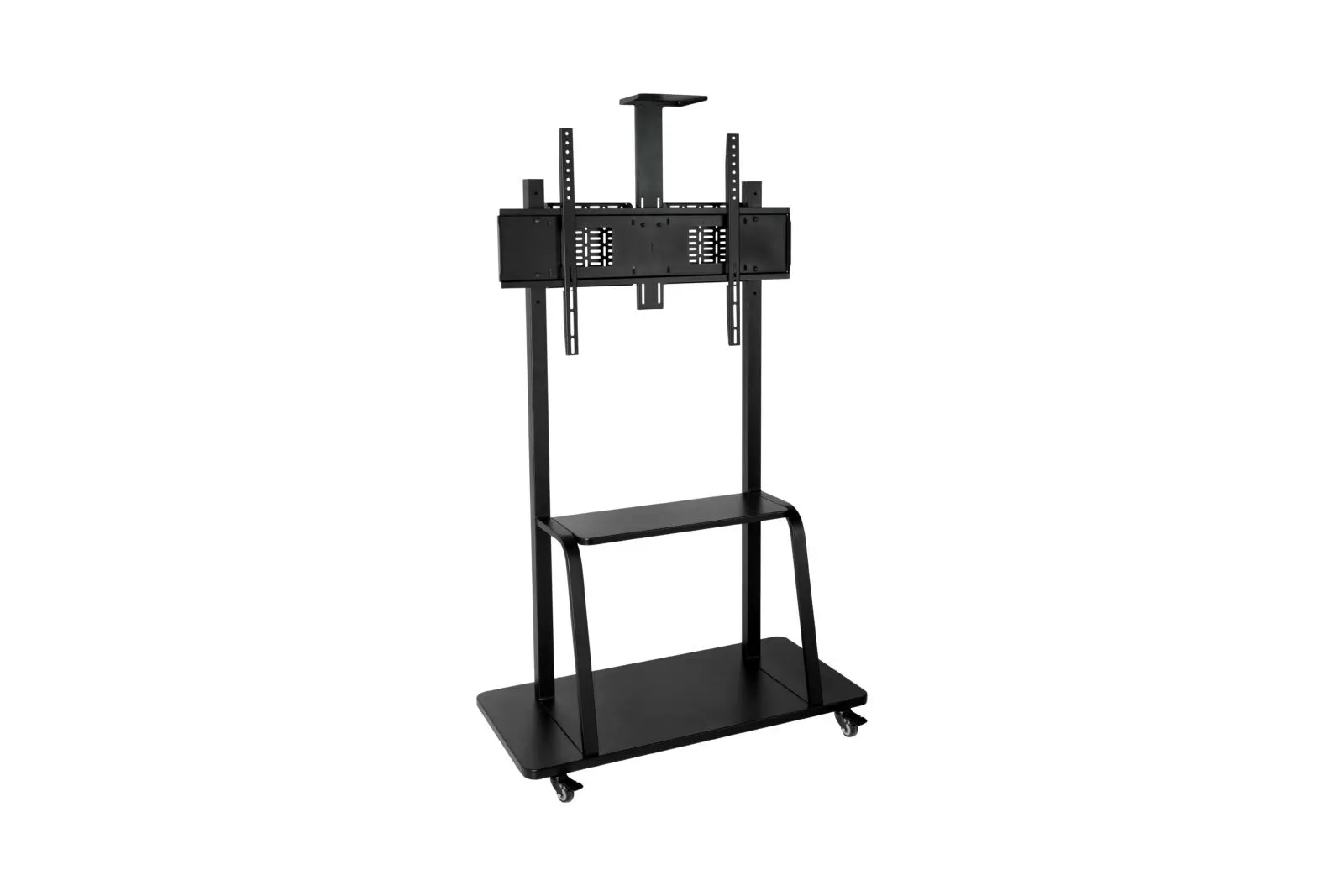

FLOOR MOUNT TROLLEY

LGFS-5586-N23

FLOOR MOUNT TROLLEY

Suitable to fit 55″ to 86″ displays, this floor mount trolley is capable of holding the weight up to 75 kg. Comes with the equipment rack and camera ledge as optional accessories, this trolley is ideal for corporate and other commercial spaces.

Features

  • Universal in design to fit 55” to 86” displays
  • The Floor mount can hold the weight up to 75 kg
  • Sleek, sturdy and seamless performance for years
  • Optional accessories include a camera ledge and Two equipment racks
  • Quick and easy installation
  • VESA compliant
  • Colours available – Black

Specifications

  • Max. Load 165 lbs (75 kg)
  • VESA 200 x 200 to 800 x 600
  • Display Sizes 55” to 86”
  • Material Steel
  • Product Weight 29 kg
  • Shipping Weight 33 kg
  • Shipping Dimension (LxWxH) 1520 x 770 x 85 (L x W x H) mm

Optional Accessories Specification

ER-LGFS-5586-N23 (Equipment Rack)

  • Max. Load 22 lbs (10 kg)
  • Height Adjustment No
  • Product Weight 0.86 kg

CL-LGFS-5586-N23 (Camera Ledge)

  • Max. Load 6.6 lbs (3 kg)
  • Height Adjustment Yes
  • Product Weight 1.3 Kg

Resources

Download Datasheet Download User Manual Download CAD Drawings
