FLOOR MOUNT TROLLEY

LGFS-6598

FLOOR MOUNT TROLLY

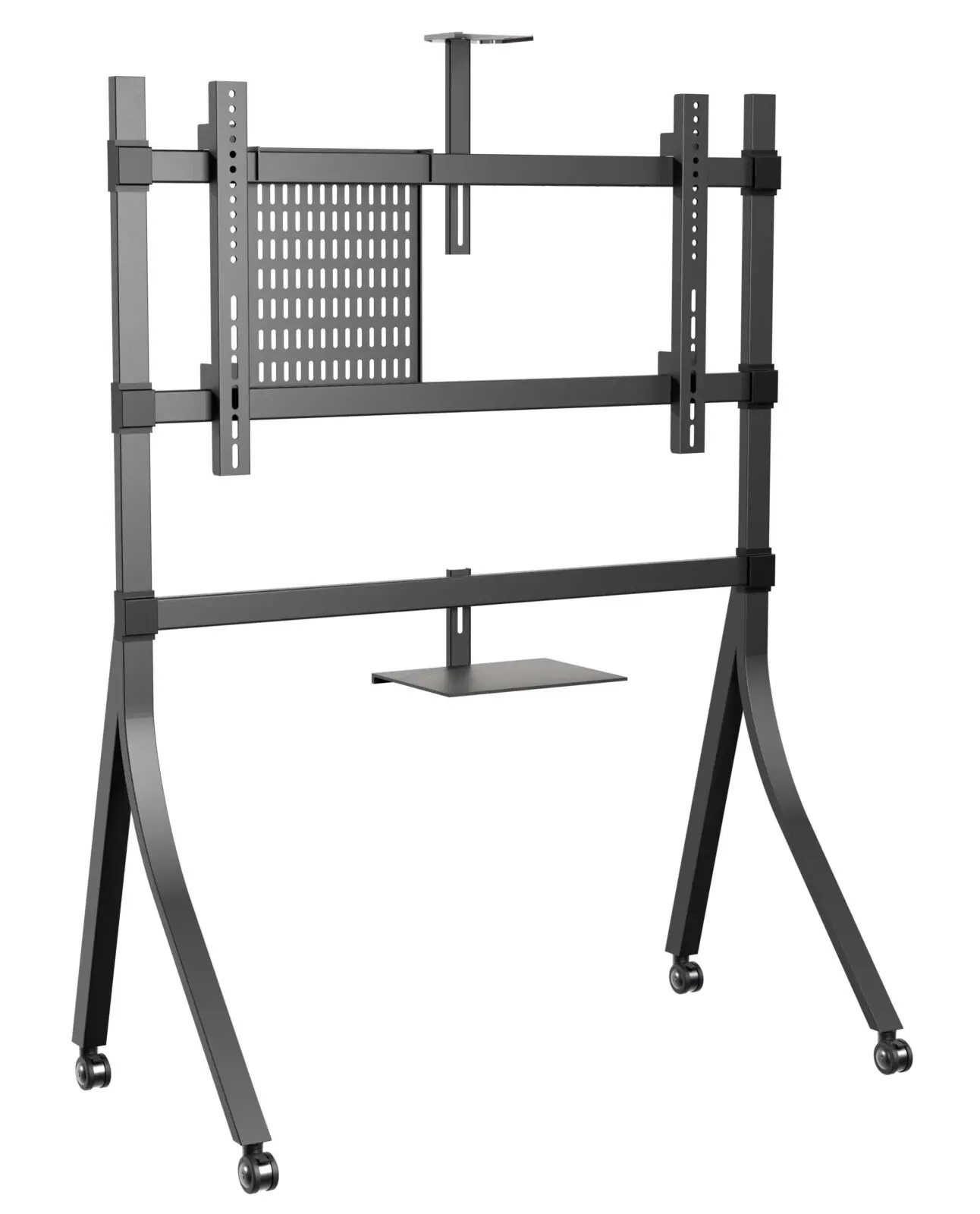

LGFS-6598, a sleek and curved structure Floor Mount Trolley designed for weighty displays, is just perfect for any kind of presentation that demands uninterrupted performance in the setting of corporate and training with a minimal space.

Features

  • Universal in design to fit 65″ to 98″ displays
  • The Floor mount can hold weight up to 120 kg
  • Convenient curved design to withstand weight without shaking
  • Sleek, sturdy and seamless performance for years
  • Quick and easy installation
  • VESA compliant
  • Colours available: LGFS-6598B (Black) & LGFS-6598W (White)

Specifications

  • Max. Load 265 lbs (120 kg)
  • VESA 400 x 400 to 900 x 600
  • Display Sizes 65″ to 98″
  • Material Steel
  • Product Weight 24 kg
  • Shipping Weight 30 kg
  • Shipping Dimension (LxWxH) 1760 x 740 x 160 mm

Optional Accessories Specification

ER-LGFS-6598 (Equipment Rack)

  • Max. Load 22 lbs (10 kg)
  • Height Adjustment No
  • Product Weight 1.5 kg

ET-LGFS-6598 (Equipment Tray)

  • Max. Load 15.4 lbs (7 kg)
  • Height Adjustment Yes
  • Product Weight 1.5 kg

CL-LGFS-6598 (Camera Ledge)

  • Max. Load 6.6 lbs (3 kg)
  • Height Adjustment Yes
  • Product Weight 1.1 kg
