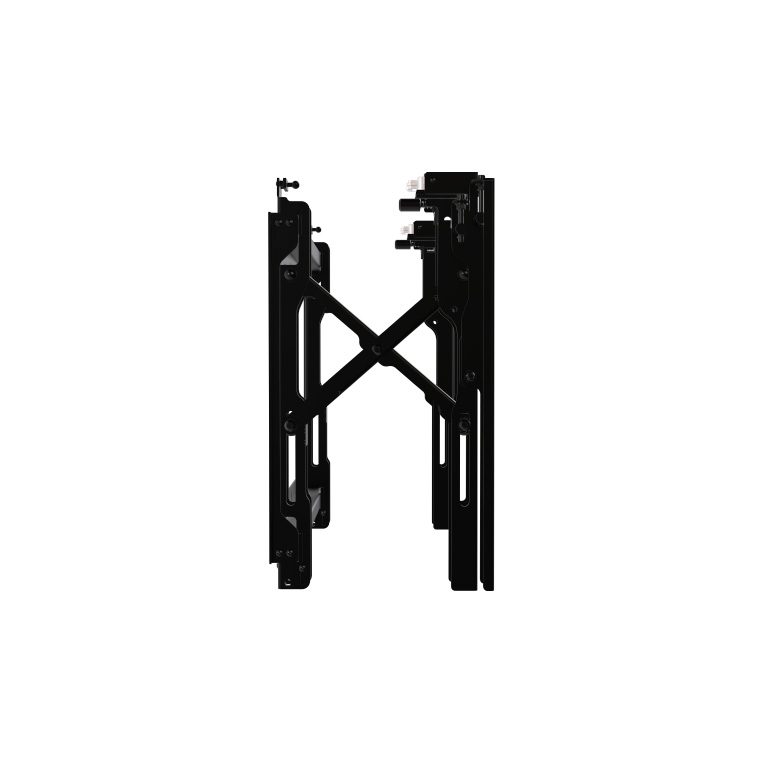

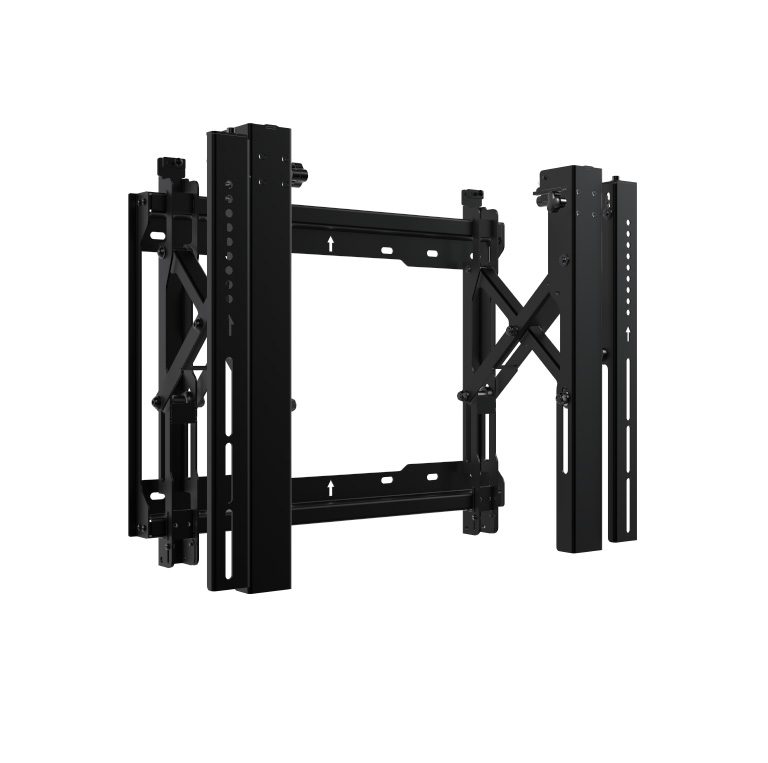

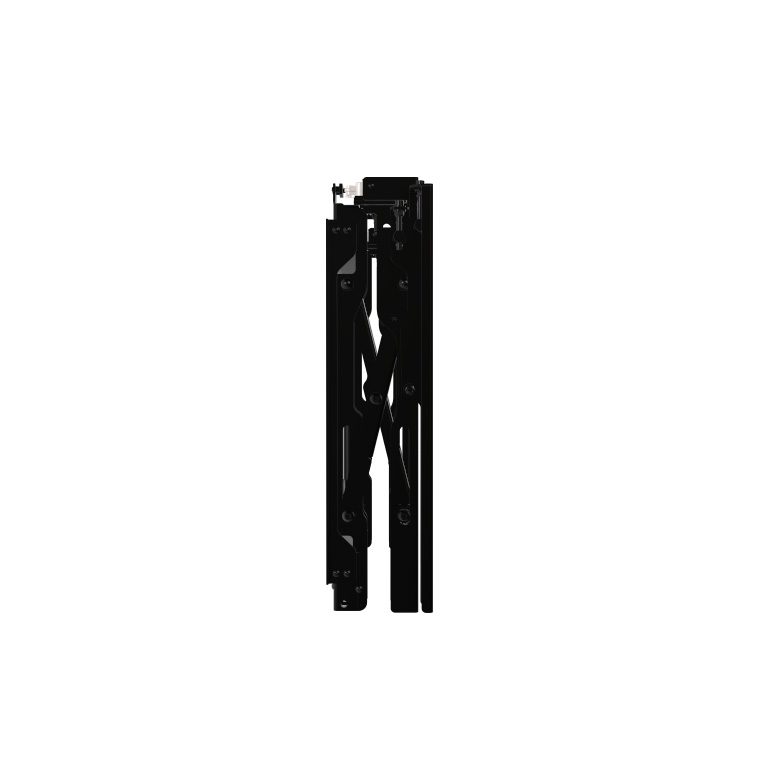

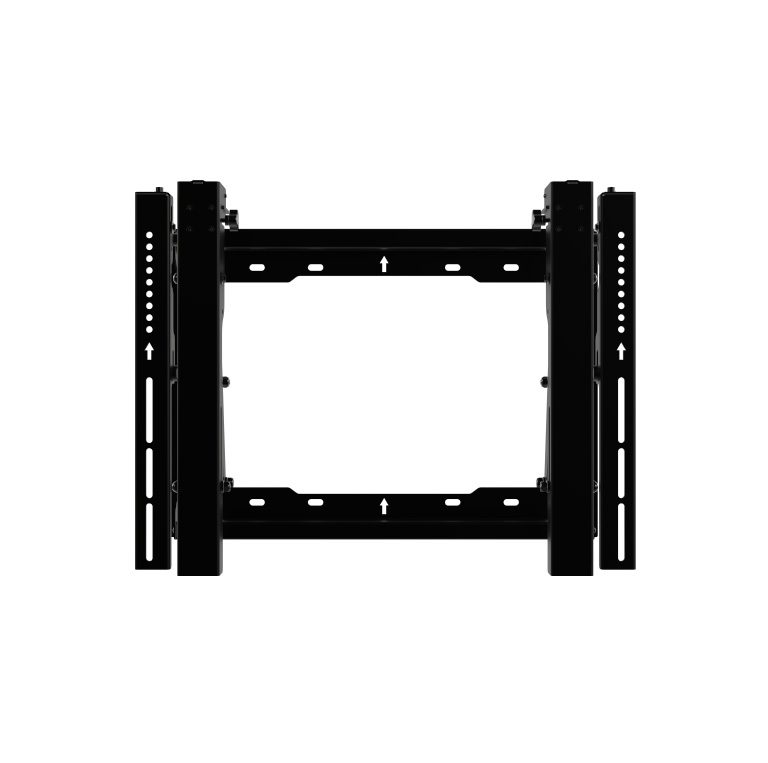

LG-VW04-IN

VIDEOWALL BRACKET

Comes with a precise alignment due to multi-dimensional micro adjustment facility, this video wall bracket allows the users to adjust depth, height, and tilt.

Features

  • Quick-release latch easily activates the lock & unlock the mode to secure display in place firmly
  • Multi-dimensional Micro Adjustment enables precision alignment of the video wall configuration, including depth, height and tilt
  • Anti-theft design offers an additional insurance against theft (a padlock required)
  • Pop-out extension easily pulls out for installation and maintenance
  • Pop – out Lock System ensures safety use by reducing the possibility of accidential pop-outs via the additional plastic plug – in pieces

Specifications

Landscape

  • Max. Load 88.2 lbs (40 kg)
  • Display Sizes 49″ to 65″
  • VESA 200×200 to 600×400
  • Product Weight 8.976 kg
  • Shipping Weight 10.076 kg
  • Shipping Dimension (LxWxH) 652 x 385 x 280

Portrait

  • Max. Load 55.1 lbs (25 kg)
  • Display Sizes 49″ to 55″
  • VESA 200×200 to 400×400

ER-01

  • Orientation Portrait
  • Max.Load 22 lbs (10 kg)
  • Product Weight 2.6 kg
  • Shipping Weight 3.6 kg
