Push-Pull Wall Mount Brackets

  • Features
  • Specifications
  • Resources

USB Type A Male to Type A Male

LGC-5586

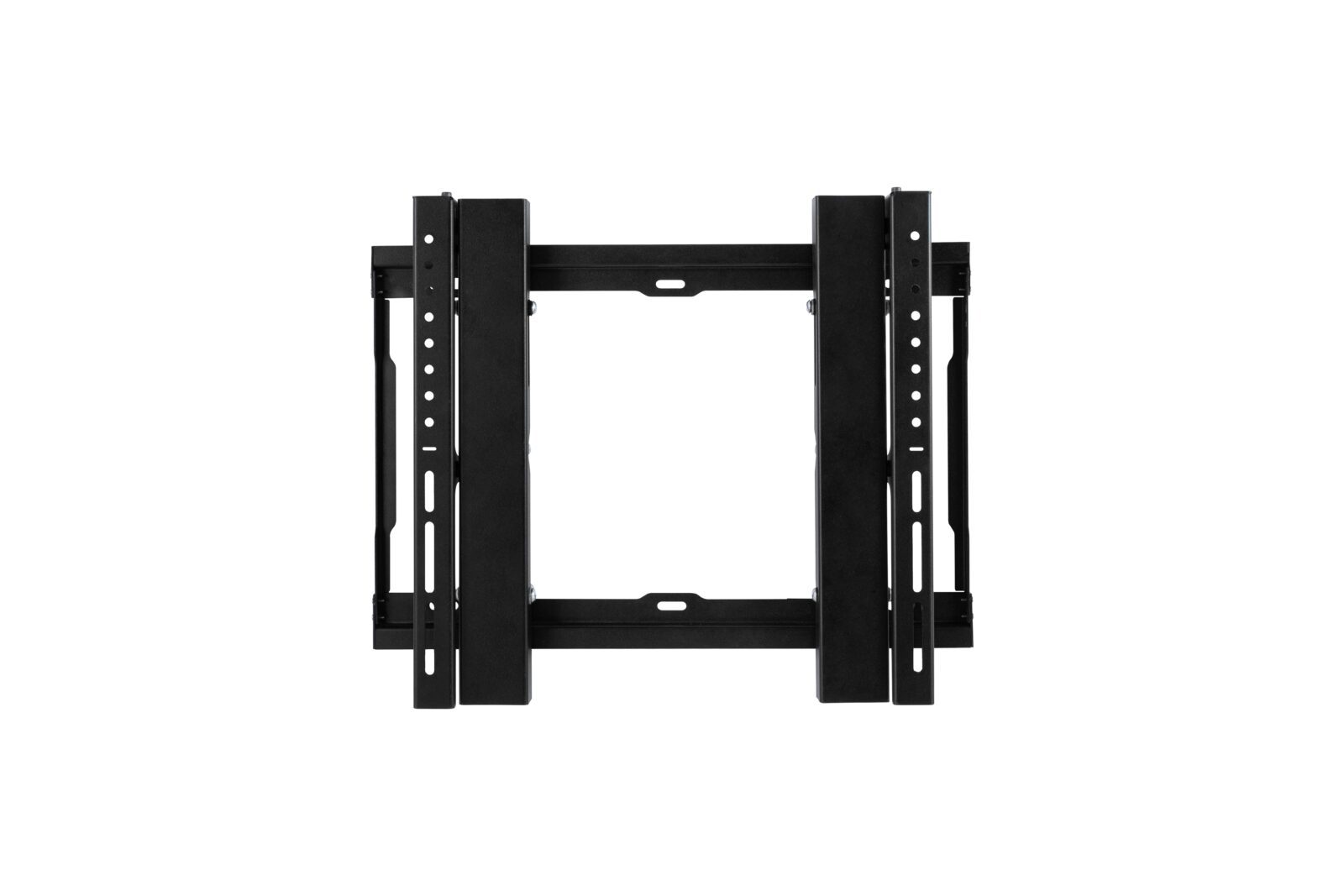

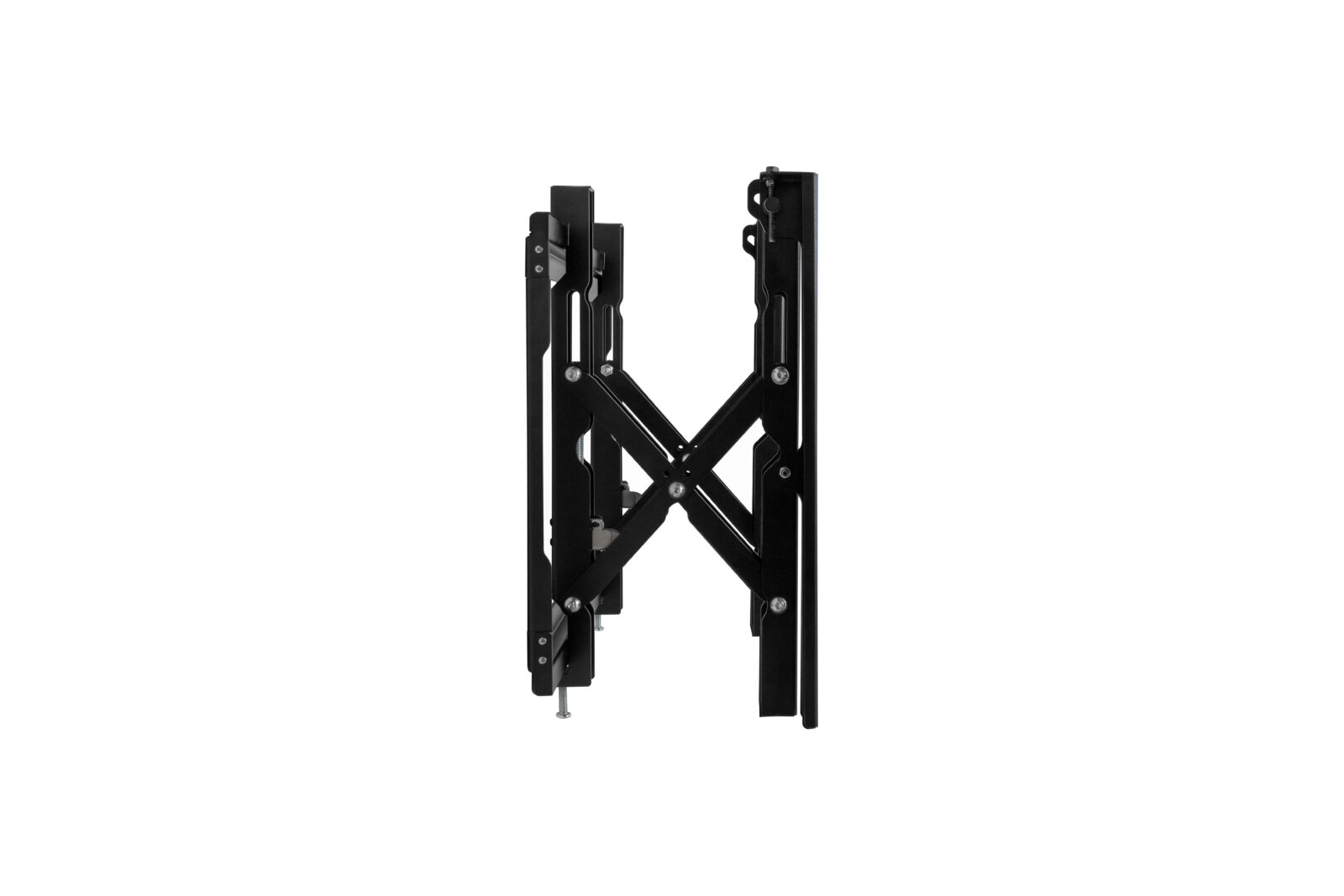

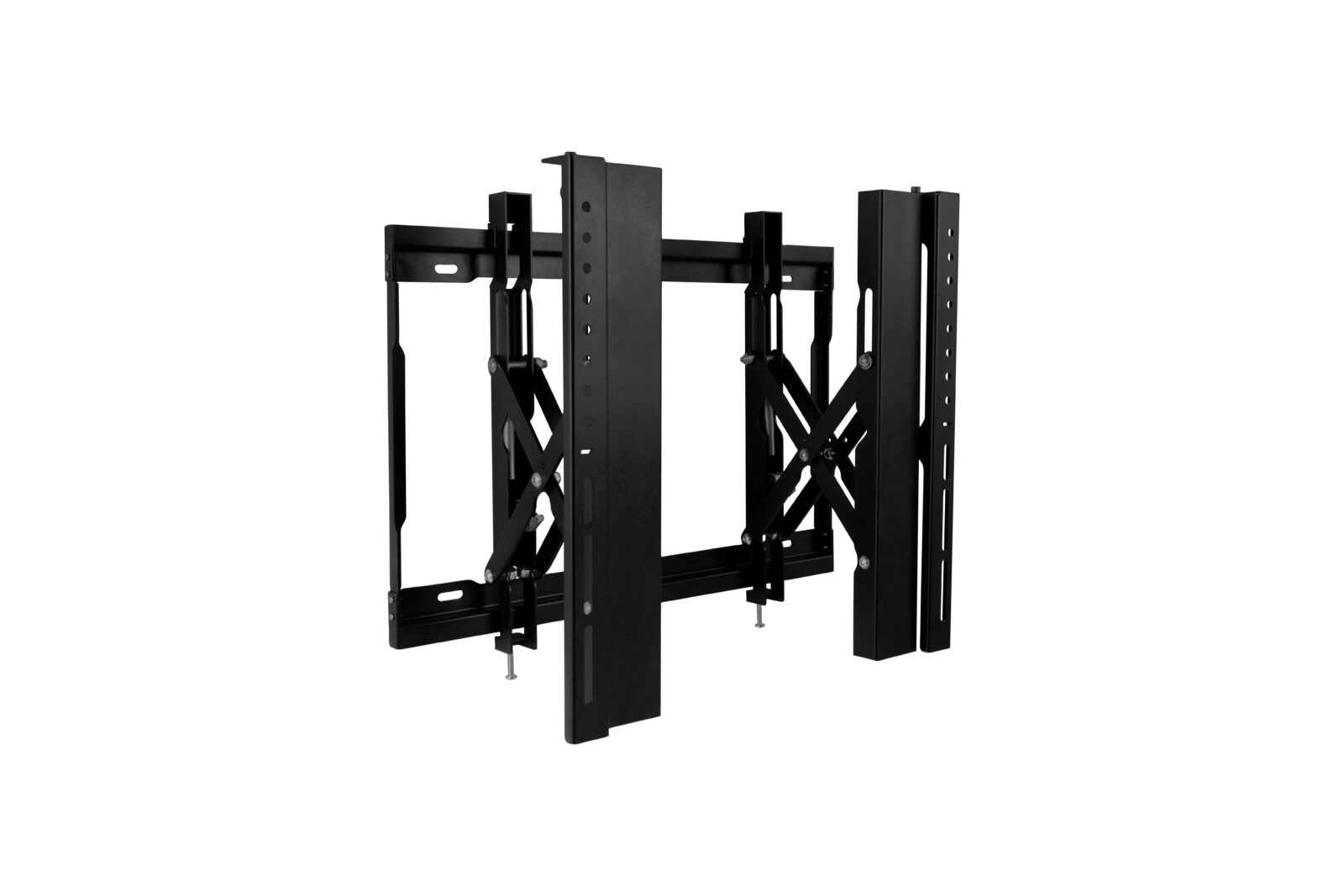

PUSH-PULL WALL MOUNT BRACKET

With pull to open and push to close system, this wall mount provides exclusive performance with a weight capacity of 50 kg (110 lbs) and a substantial display size from 55” to 86”. It is a VESA compliant product with smooth functionality that makes your presentation uninterrupted in any corporate or training environment.

Features

  • Pull to open / push to close system provides quick and easy service
  • Universal in design to fit 55” to 86” displays
  • Tilt (+/- 50) adjustment feature is included
  • The mount can hold up to 50kg
  • Colours available :- Black
  • VESA compliant

Specifications

  • Max. Load 110 lbs (50 kg)
  • VESA 100 x 100 to 600 x 400
  • Display Sizes 55” to 86”
  • Material Steel
  • Product Weight 14.2 kg
  • Shipping Weight 17.5 kg
  • Shipping Dimension (L x W x H) 640 x 300 x 130

Resources

Download CAD Drawings Download User Manual Download Datasheet
