Push-Pull Wall Mount Brackets

  • Features
  • Specifications
  • Resources

USB Type A Male to Type A Male

LGC-98110

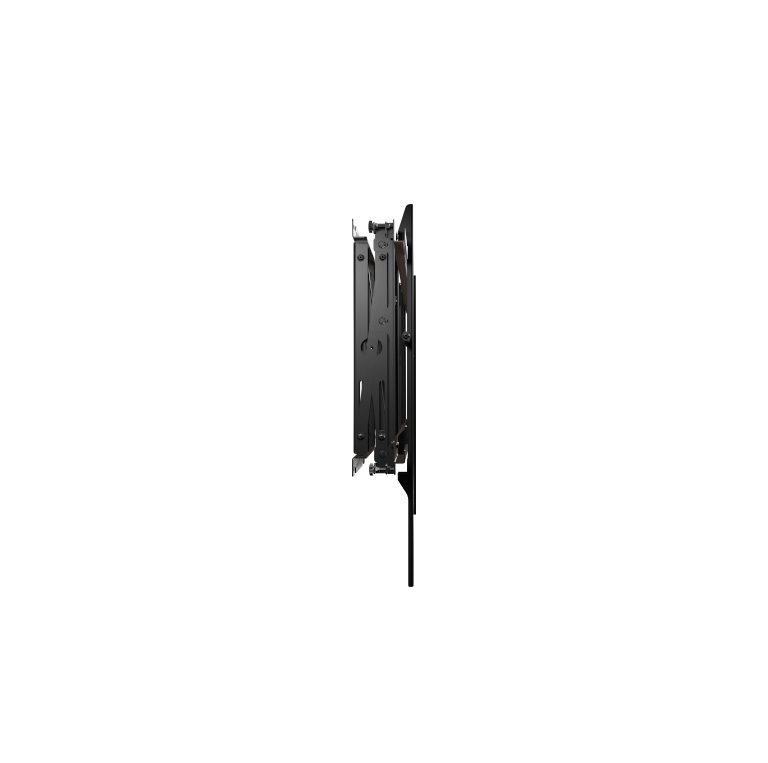

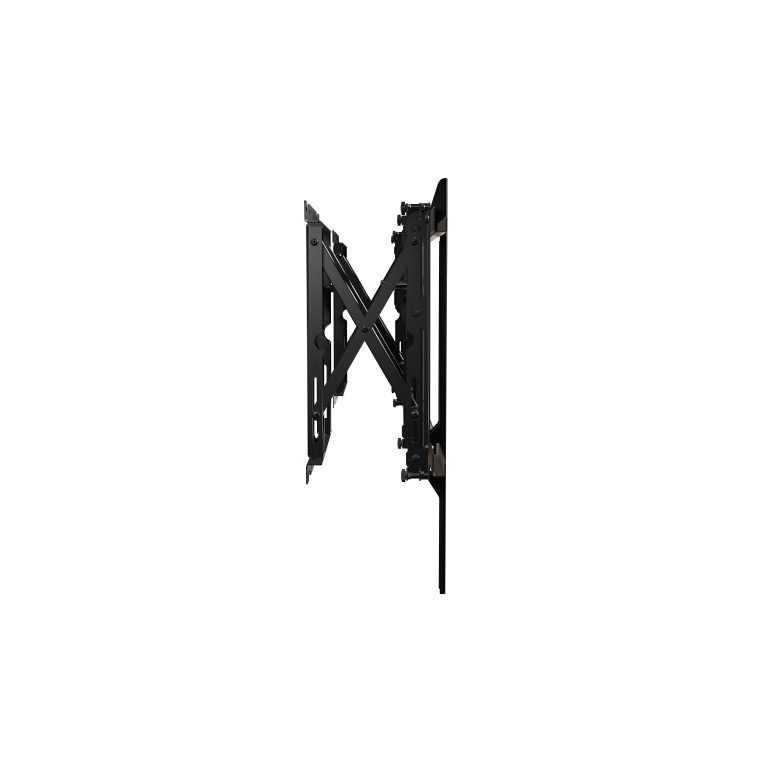

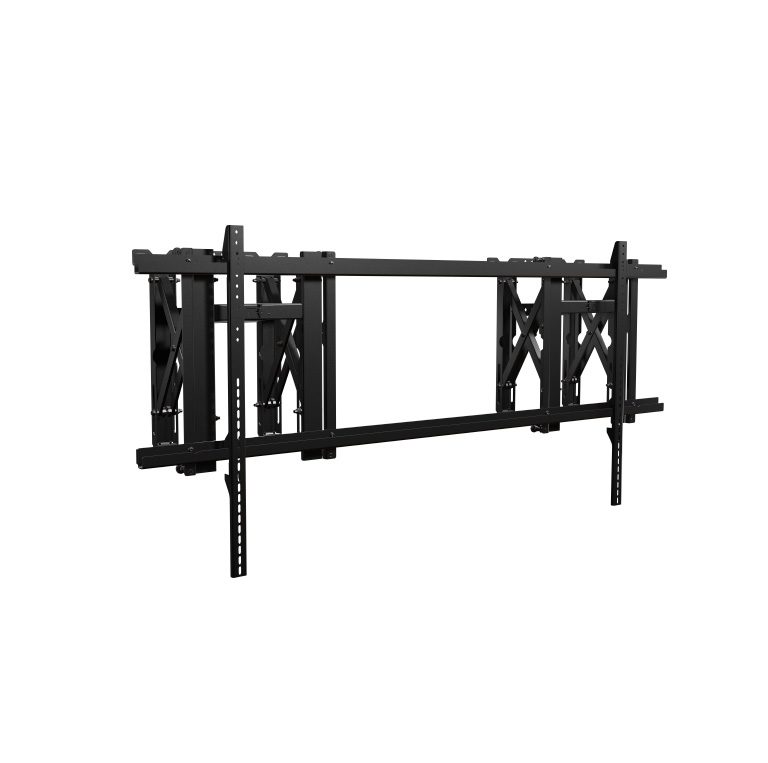

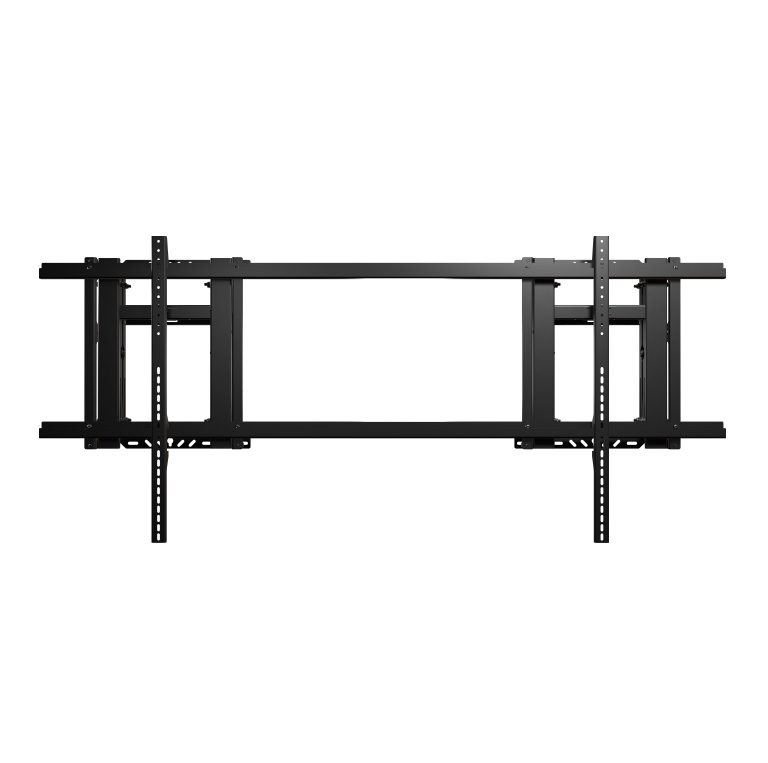

PUSH-PULL WALL MOUNT BRACKET

With pull to open and push to close system, this wall mount provides exclusive performance with a weight capacity of 130 kg (286.6 lbs) and a substantial display size from 98” to 110”. It is a VESA compliant product with smooth functionality that makes your presentation uninterrupted in any corporate environment.

Features

  • Push to open / push to close system provides quick and easy to service access
  • Universal in design to fit 98” to 110” displays
  • Adjustable tilt ±2° and height ±5mm
  • The mount can hold up to 130 kg
  • Colours available : Black
  • VESA compliant

Specifications

  • Max. Load 285.6 lbs (130 kg)
  • VESA 400 x 400 to 1600 x 800
  • Display Sizes 98” to 110”
  • Material Steel
  • Product Weight 31 kg
  • Shipping Weight 36 kg
  • Shipping Dimension (L x W x H) 1020 x 750 x 160

Resources

Download CAD Drawings Download User Manual Download Datasheet
