USB Type A Male to Type A Male

LGWM-4970FST-N22

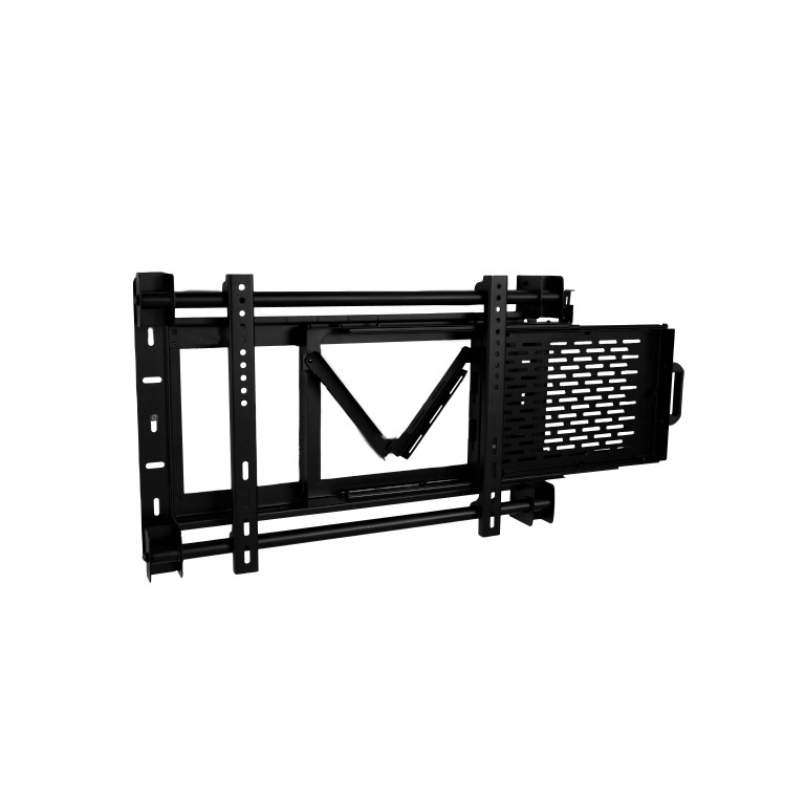

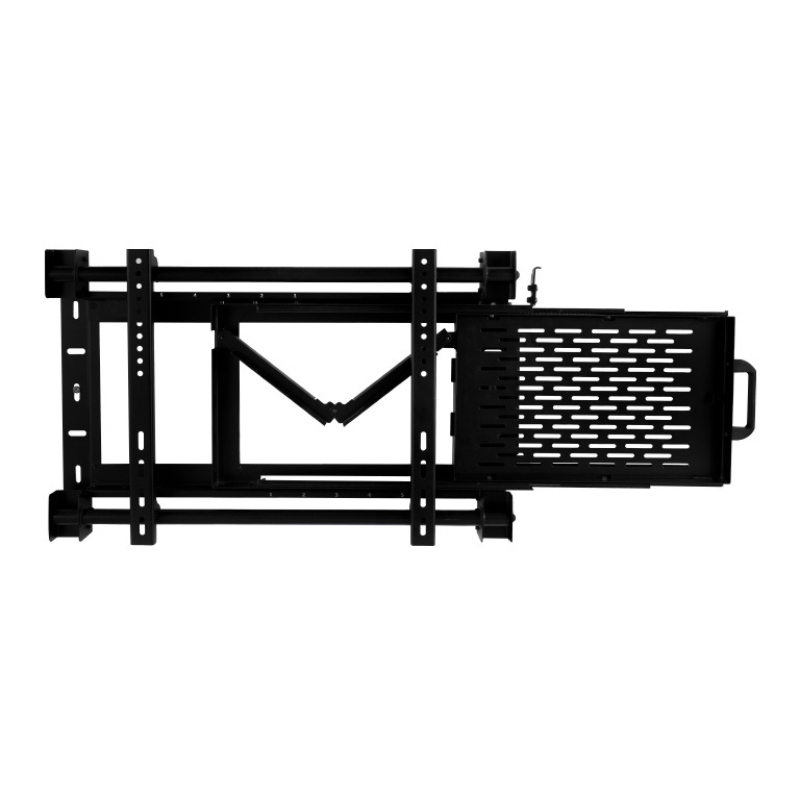

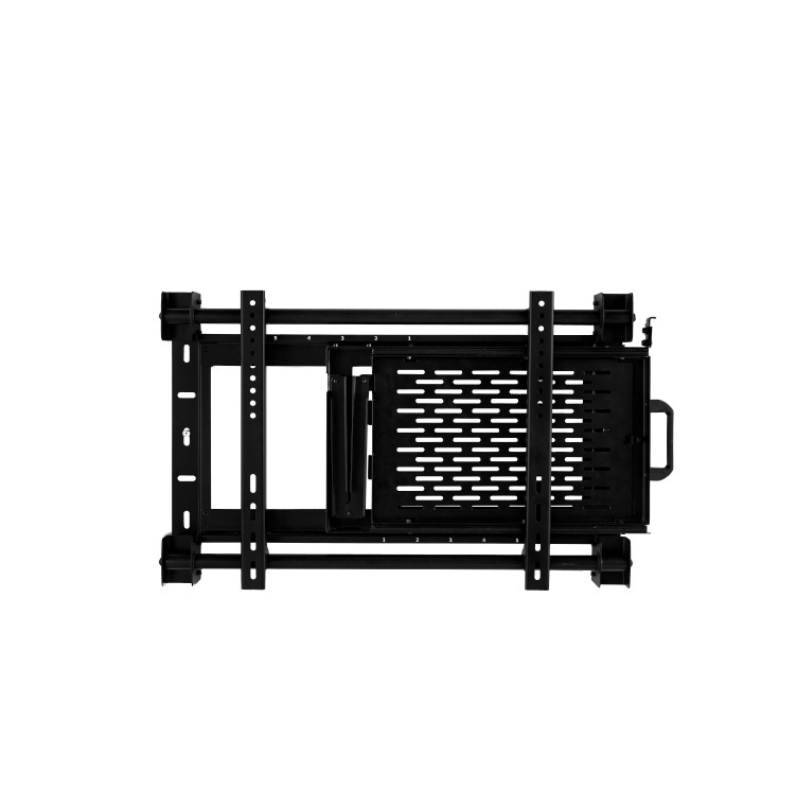

FIXED WALL MOUNT BRACKET - SIDE SLIDING TRAY

To fix the flat-panel displays on the wall, This type of wall mount comes with an in-built sliding tray that is universally designed to fit 49′′ to 70′′ displays and holds up to 70 kg.

Features

  • Desgined to hold and hide AV Products & Accessories behind a screen
  • Sliding Tray to escape from the equipment rack and lengthy cables
  • Tool-less Operation of tray movement
  • Universal in design to fit 49” to 70” displays
  • Mount can hold upto 70 Kg
  • Colours available – Black
  • VESA compliant

Specifications

  • Max. Load 154.3 lbs (70 kg)
  • VESA 100 x 100 to 600 x 400
  • Display Sizes 49” to 70”
  • Material MS Steel
  • Product Weight 21 kg
  • Shipping Weight 25 kg
  • Shipping Dimension (L x W x H) 845 x 155 x 30 (L x W x H) mm

Resources

Download CAD Drawings Download User Manual Download Datasheet
