USB Type A Male to Type A Male

LGWM-4986FDT-N22

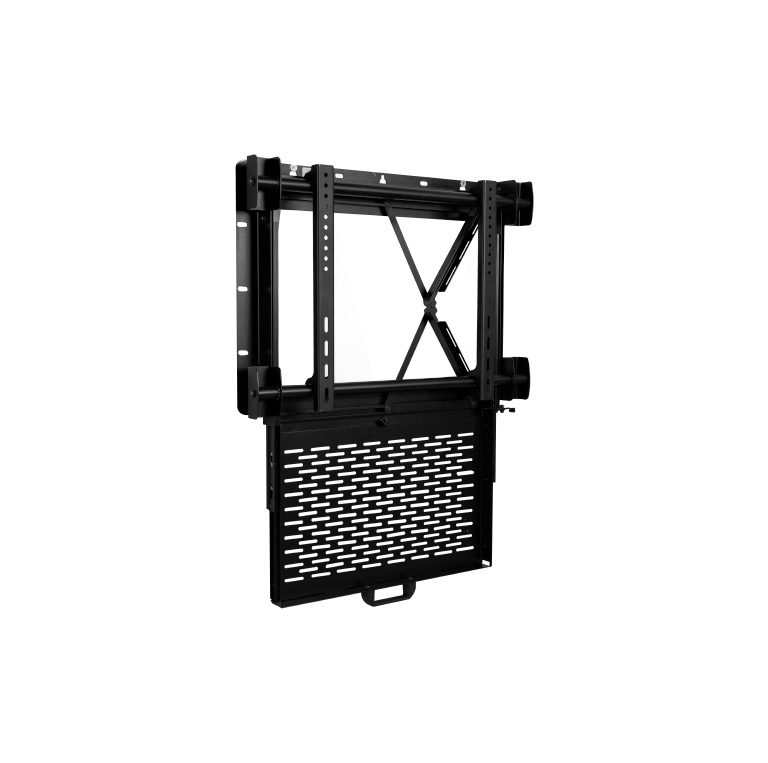

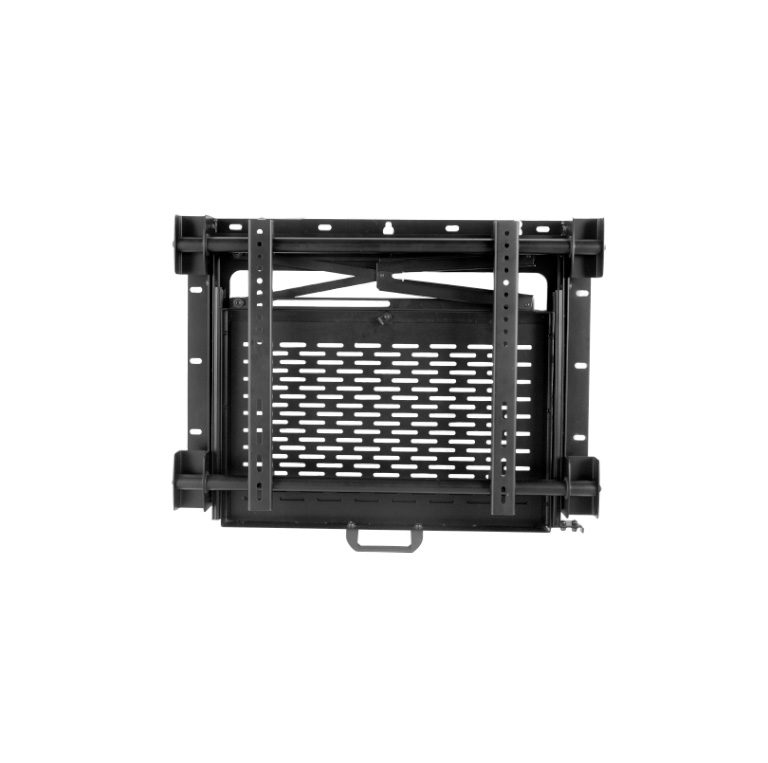

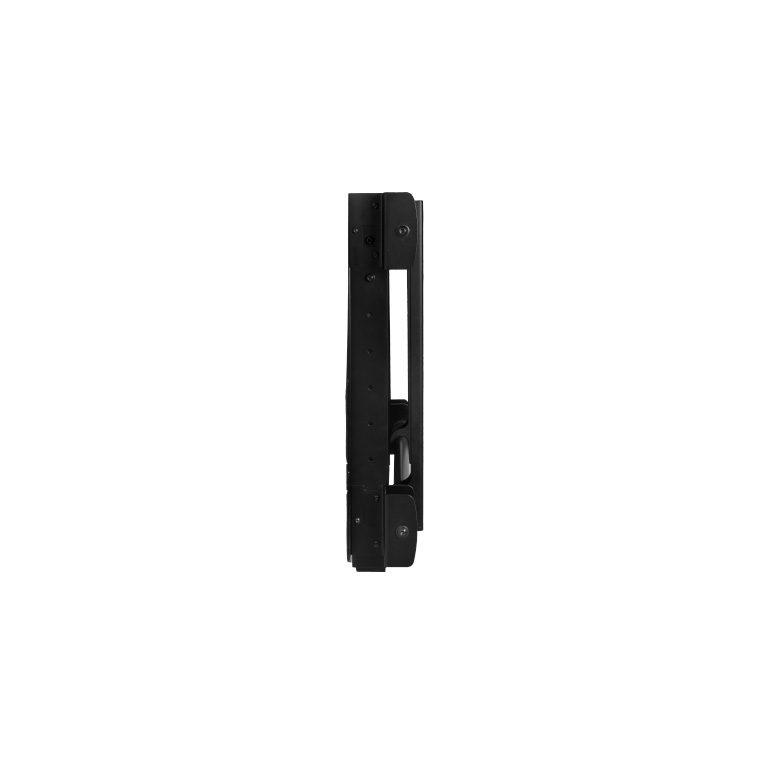

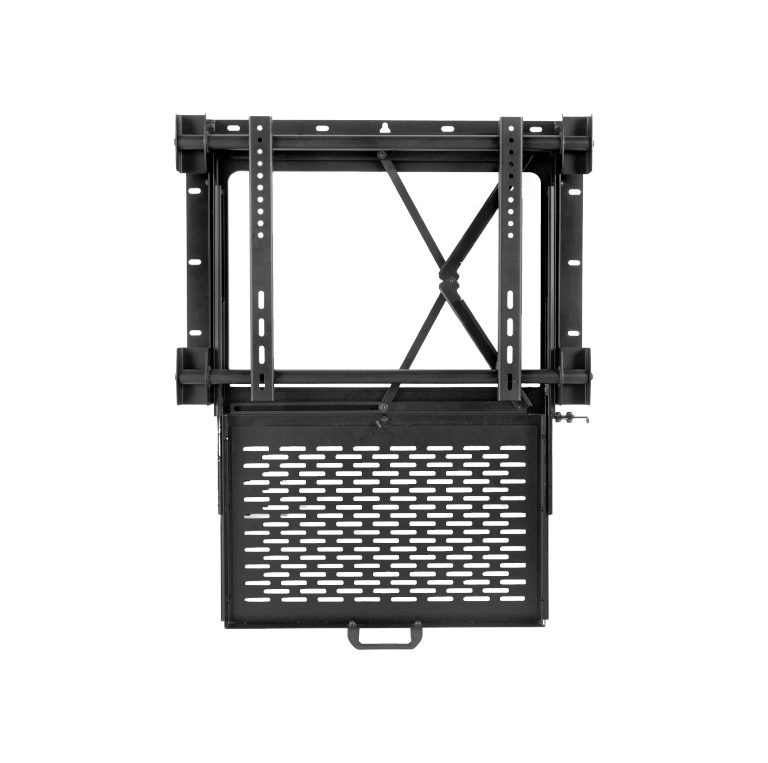

FIXED WALL MOUNT BRACKET - DOWN SLIDING TRAY

To fix the flat-panel displays on the wall, This type of wall mount comes with an in-built sliding tray that is universally designed to fit 49′′ to 86′′ displays and holds up to 80 kg.

Features

  • Desgined to hold and hide AV Products & Accessories behind a screen
  • Sliding Tray to escape from the equipment rack and lengthy cables
  • Tool-less Operation of tray movement
  • Universal in design to fit 49” to 86” displays
  • Mount can hold upto 80 Kg
  • Colours available – Black
  • VESA compliant

Specifications

  • Max. Load 176.3 lbs (80 kg)
  • VESA 100 x 100 to 600 x 400
  • Display Sizes 49” to 86”
  • Material MS Steel
  • Product Weight 18 kg
  • Shipping Weight 22 kg
  • Shipping Dimension (L x W x H) 845 x 155 x 30 (L x W x H) mm

Resources

Download CAD Drawings Download User Manual Download Datasheet
