Professional Displays

Vista Series

The Vista Series delivers pixel-perfect digital signage that works as hard as you do, with zero compromise on impact or uptime.

Quick Inquiry

Vista Series professional display with colourful ribbon artwork

Slim & Symmetrical Design

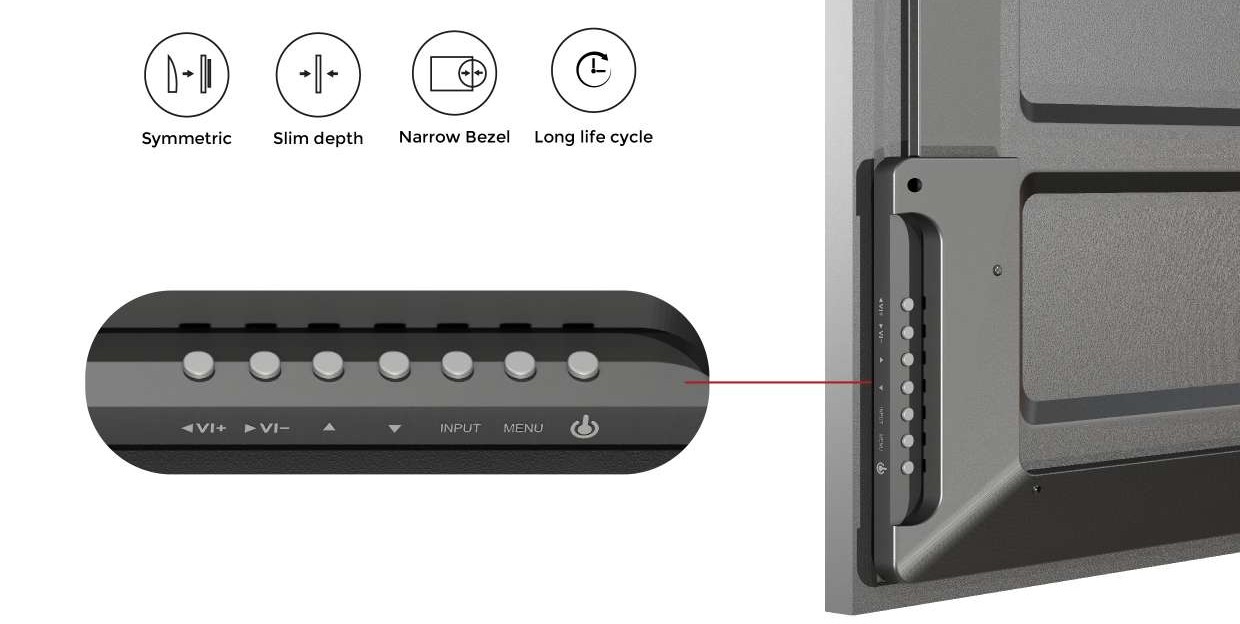

Slim symmetrical bezel and front control buttons on the Vista Series display

The sleek bezel gives a redefined, luxurious look that matches your surroundings — symmetric, slim depth, narrow bezel, and a long life cycle.

Narrow Bezel

9.9

mm (43″, 55″)

Narrow Bezel

15.9

mm (65″, 75″, 86″)

The 98″ model has a 25.9 mm bezel. An invisible IR signal receiver keeps the remote sensor out of sight.

Key Features

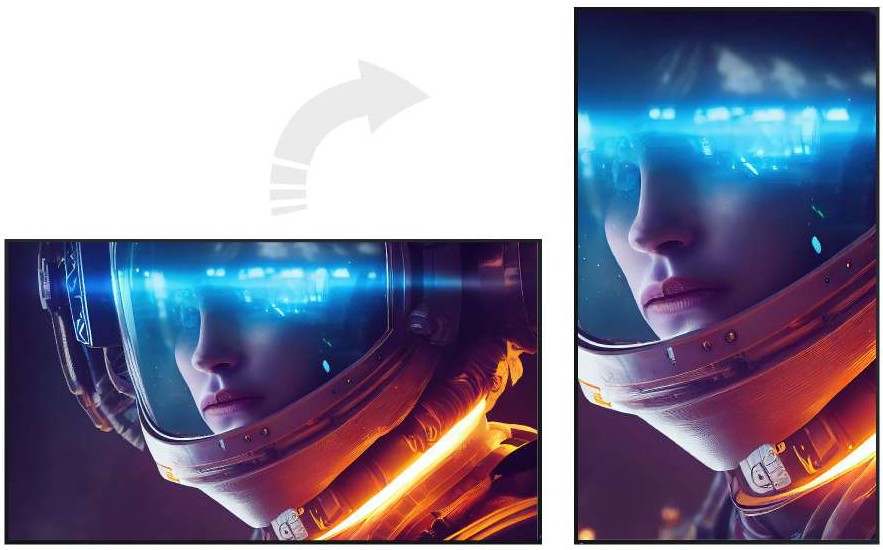

Landscape and portrait mode on a Vista Series display with auto-rotation

Flawless Display Orientation Management

Landscape & Portrait Mode. Built-in gravity sensor enables content auto-rotation.

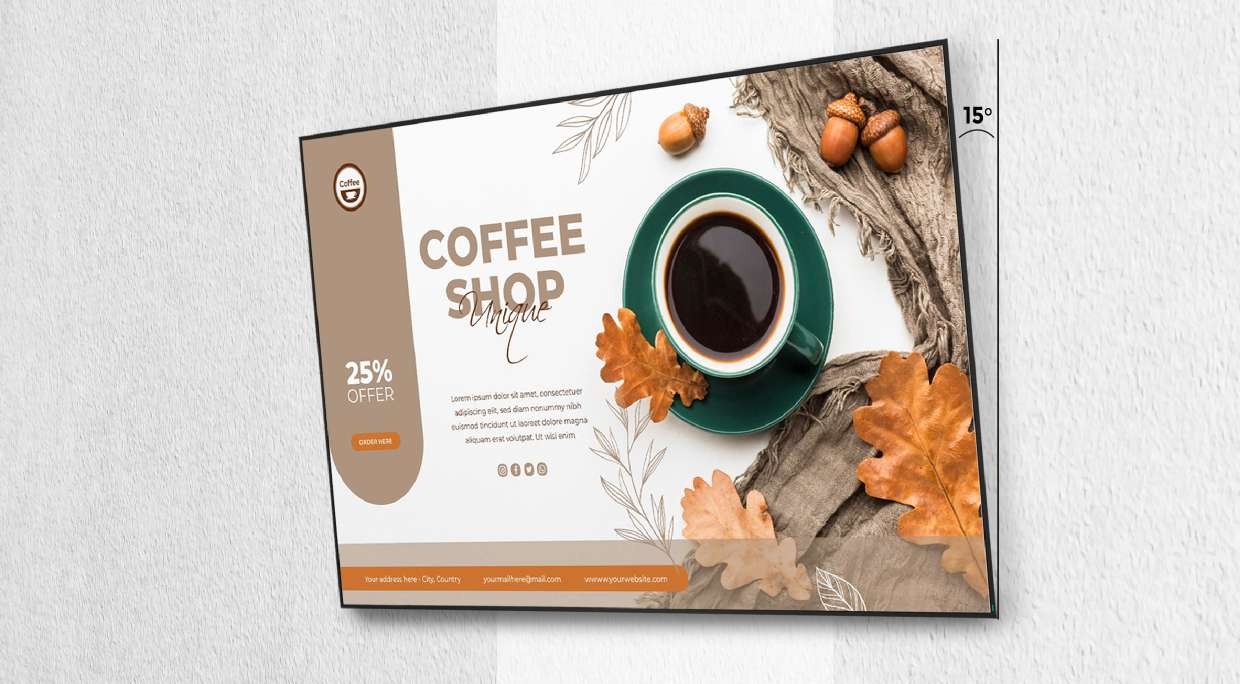

Vista Series display tilted 15 degrees on a high wall installation

15° Tilting Installation

Supports 15° of tilt adjustment for easy viewing when screens are installed in high places.

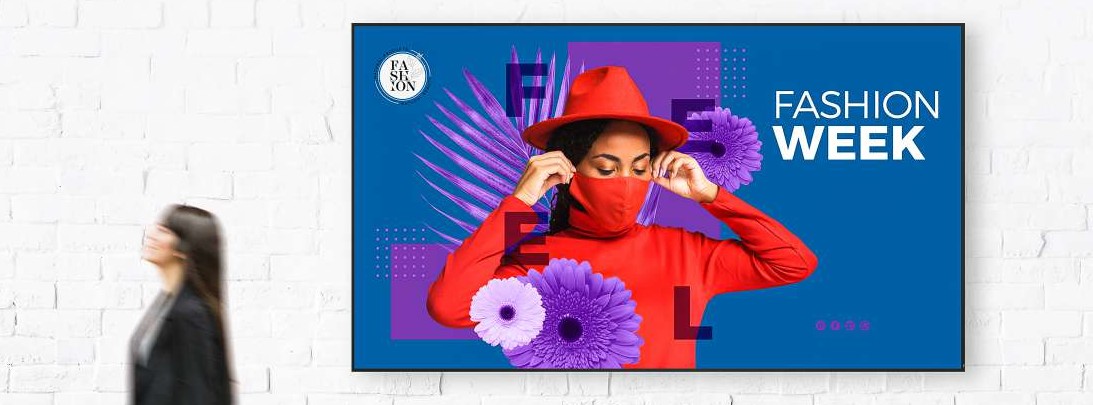

Multi Media Playback

A simplified way to access & play multimedia files directly from USB.

USB Auto Play

Auto Play After Start-up

Playlist Scheduling

Instant Mobile Content Transfer

Scan a QR code to instantly send content from your phone straight to the display.

4K Ultra HD Display

Unmatched visual effects and clarity. The Vista Series supports a stunning 3840 x 2160 resolution, delivering ultra-clear visuals and precise detailing for your most demanding content.

UHD versus FHD comparison on a Vista Series professional display

Anti-Glare

See clearly with low reflectivity.

Flicker-Free

DC dimming for flicker-free viewing.

Enhanced Color Calibration

Deliver extreme color accuracy (Delta E <1.5).

High Brightness

400/450* nits brightness. Backlight life of at least 50,000 hours.

Collaboration

Connect & Share Ideas From Any Device Effortlessly

Screen Share Pro is a wireless presentation application that supports Windows, Mac, iOS, Android, and Chrome devices.

Windows

Mac

iOS

Android

Chrome

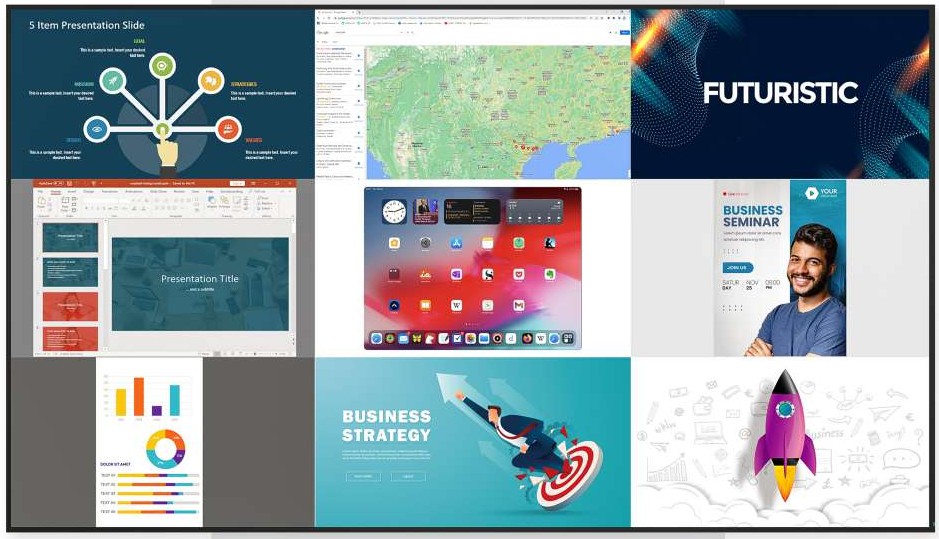

Screen Share Pro showing nine tiled presentation windows on a Vista Series display

Screen sharing up to 9 Parties

Screen Share Pro running on laptops, tablets and phones

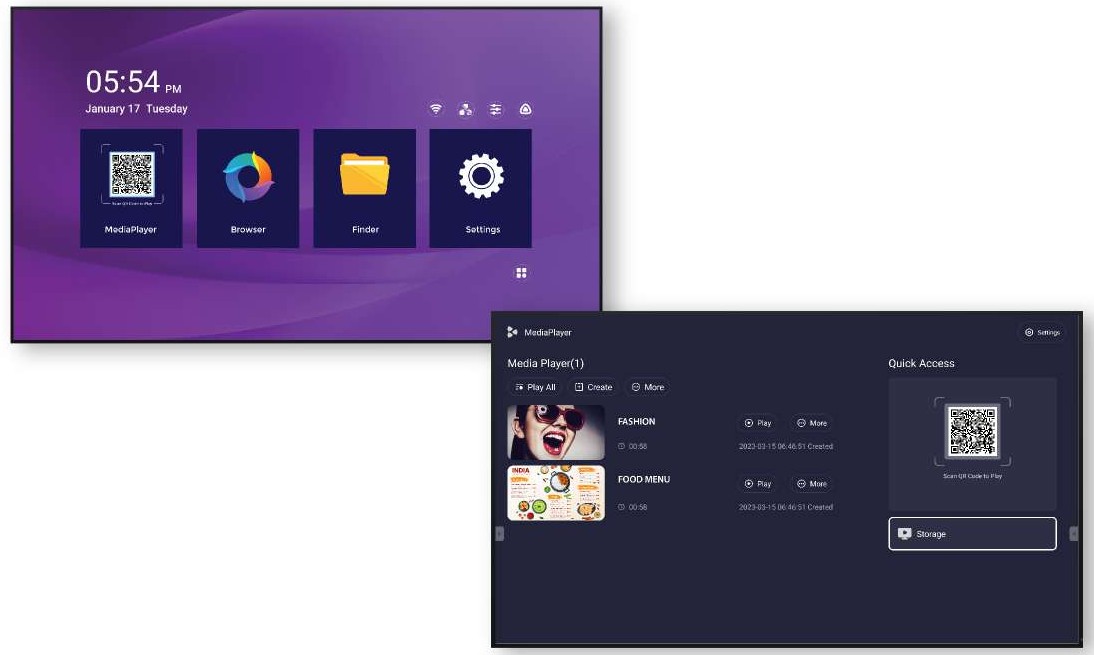

Built-in Media Player

Easy content management and playback without need of a PC.

Easy Content Management & Playback

Manage playlists and play content directly from the display, with no PC required. Scan the QR code in Quick Access to push media straight to the screen.

Play All

Create

QR Quick Access

Storage

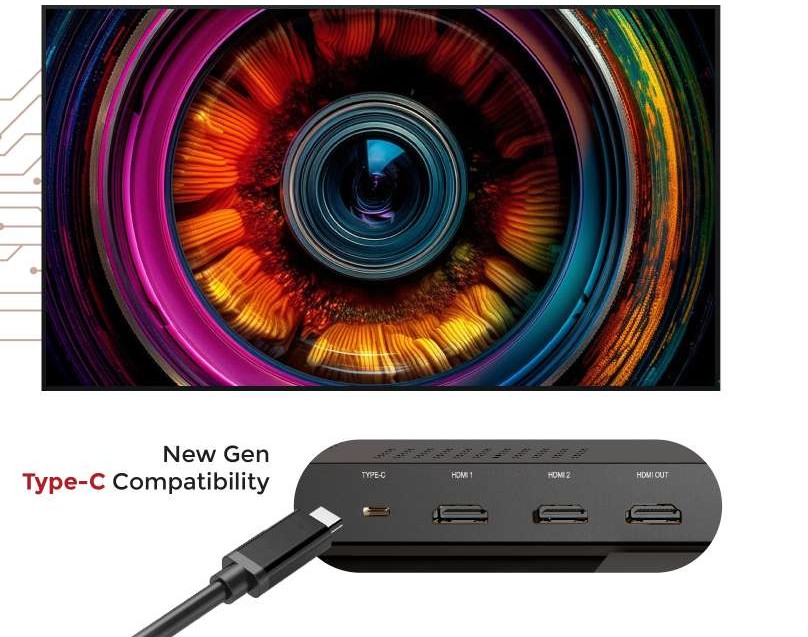

Multifunctional USB Type-C

The Type-C port supports 4K audio and video transmission, network connection, charging for external devices, and provides access to an external camera.

Audio

Video

Network

65W Charging

High-Performance System

SMOOTH & STABLE OPERATION

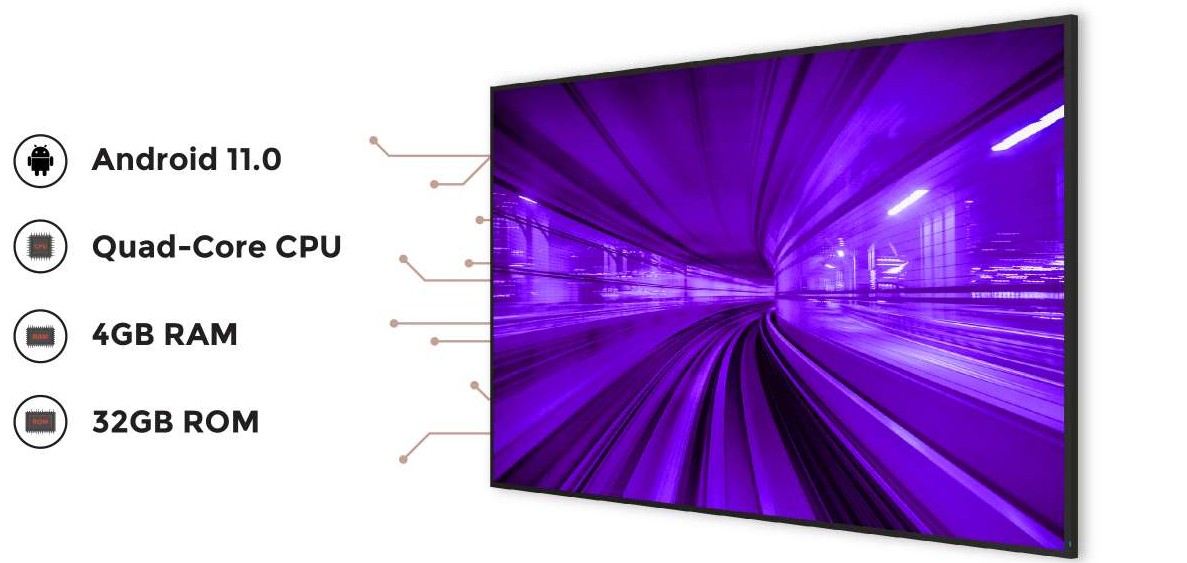

Built for Smooth, Stable Operation

Android 11.0 with a Quad-Core CPU, 4GB RAM and 32GB ROM keep playback smooth and stable, even for demanding signage content.

Android 11.0

Quad-Core CPU

4GB RAM

32GB ROM

PERFORMANCE

SCREEN SPLICING

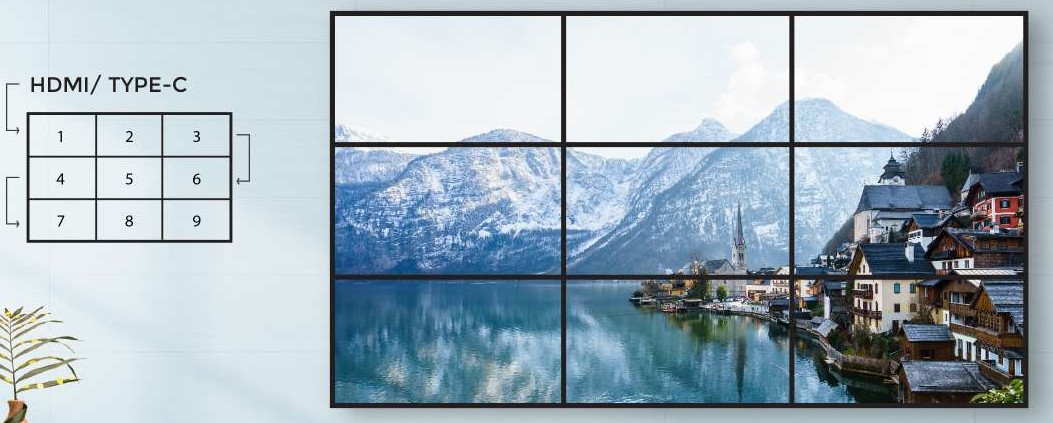

Create Beautiful Video Wall Experiences

HDMI Daisy Chain supports up to 3x3 screens to be spliced.

3 x 3 VIDEO WALL

DEVICE MANAGEMENT SYSTEM

A Simplified Way of Device Management

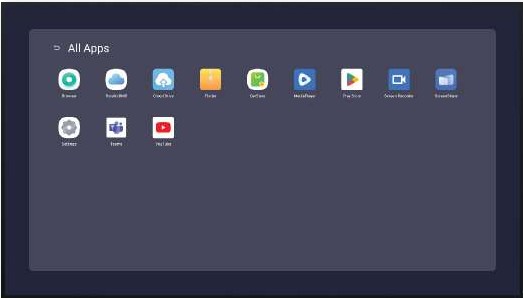

DMS application management screen showing all installed apps

Streamlined Application Management

Centralized, efficient app control across every connected panel.

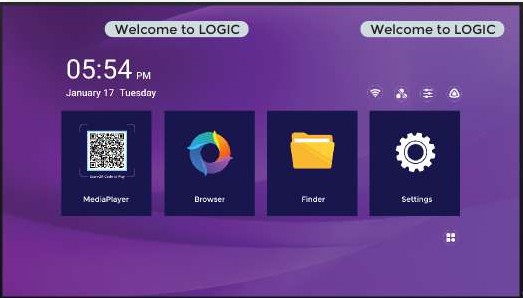

Remote Screen Management

Effortless control; troubleshoot screens remotely.

Administrator sending a command to Vista Series screens from the Device Management System on a laptop

The integrated Android technology empowers you to maintain full control over your ecosystem, no matter where you are.

Wake Up

Lock Screen

Remote Troubleshooting

App Control

DMS DASHBOARD

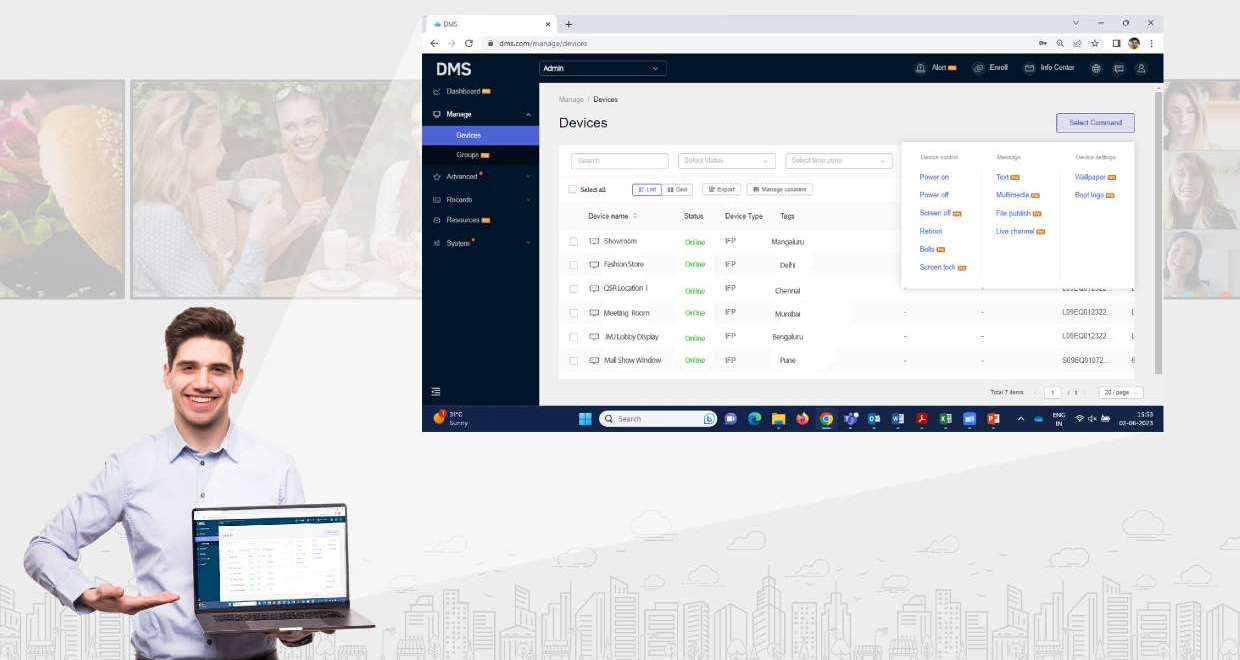

Presenter showing the DMS devices dashboard listing panels across multiple locations

Where It Works

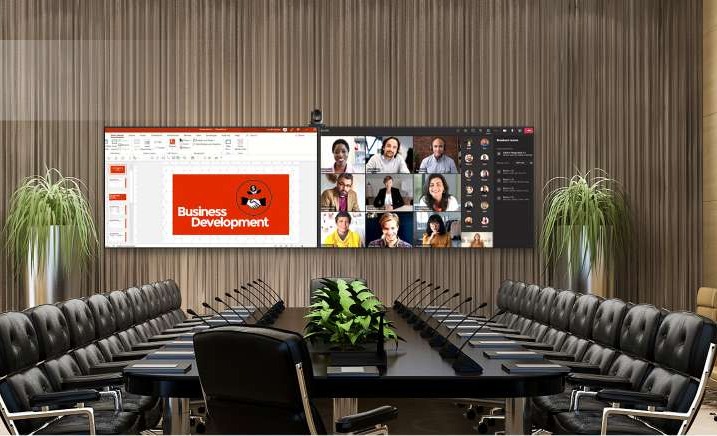

Enterprise

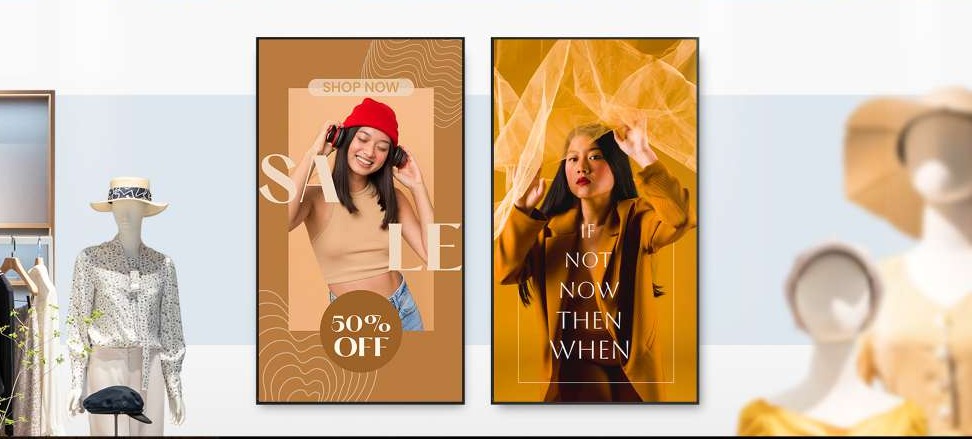

Retail

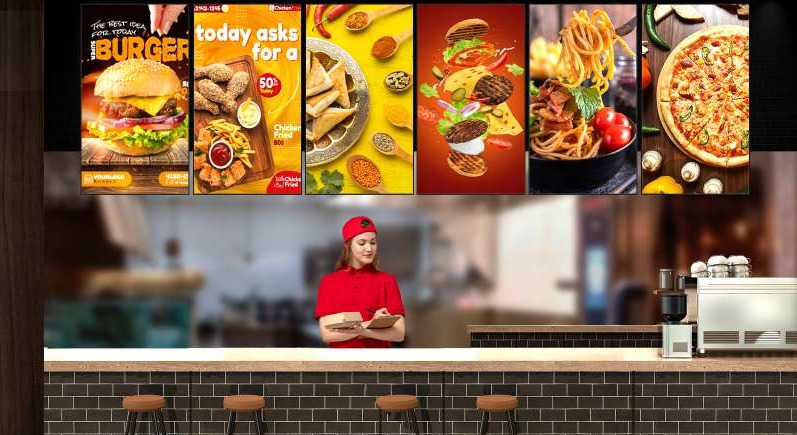

Vista Series display in a quick service restaurant

QSR

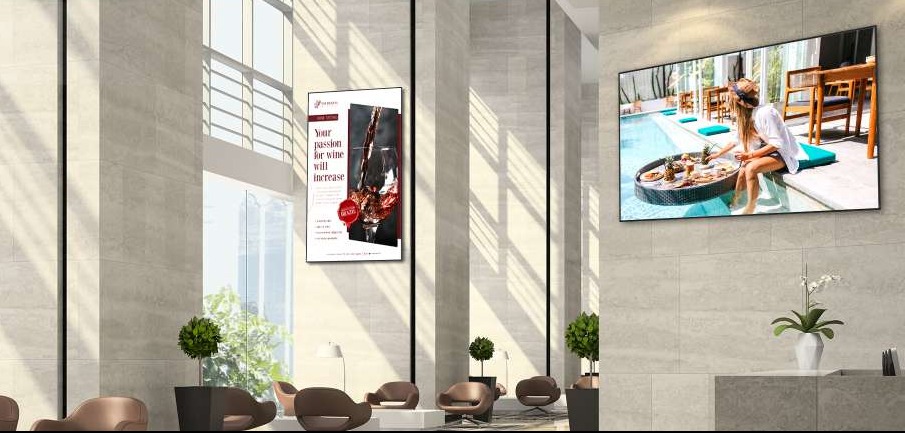

Hospitality

Product Specification

Panel
MODEL NAME	LV-43UC
Screen Size (Diagonal)	43"
Panel Type	VA
Resolution	3840 (H) x 2160 (V)
Back Light Unit	DLED
Aspect Ratio	16:9
Display Area	941.184 x 529.416 mm
Pixel Pitch	0.2451 x 0.2451 mm
Brightness	400 cd/m²
Contrast Ratio	5000:1
Viewing Angle	178° / 178° (H/V)
Display Colors	1.07B
NTSC	72%
Operation Hour	18/7
Lifetime	≥50000 Hours
Refresh Rate	60Hz
Internal Player
Operating System	Android 11.0
CPU	A55 x 4
GPU	Mali G52MP2
RAM	4 GB
ROM	32 GB

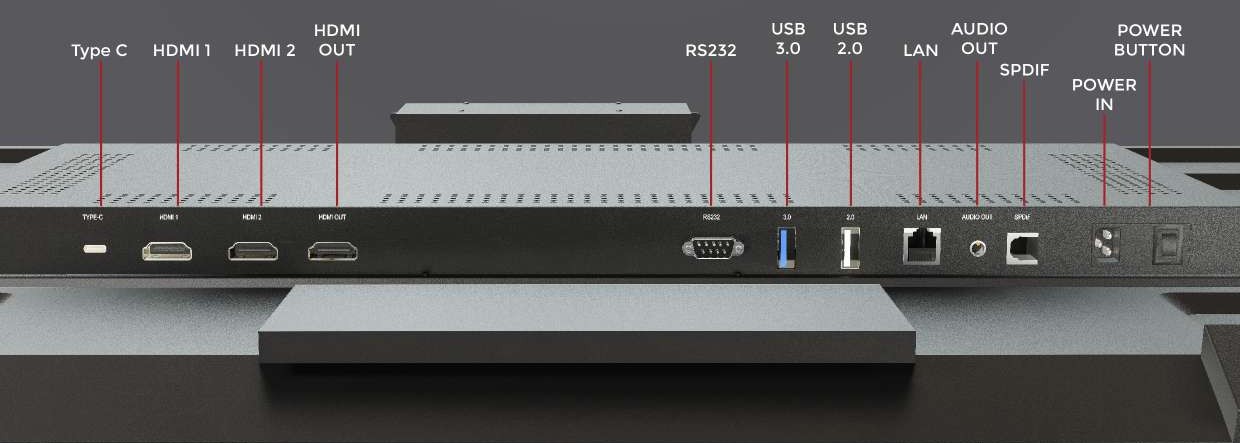

I/O Interfaces
HDMI IN	2
HDMI OUT	1
USB 2.0	1
USB 3.0	1
USB Type C	1
Audio OUT (3.5mm Jack)	1
SPDIF	1
Wi-Fi	Yes
RS232	1
RJ45 IN / OUT	1 / —
Audio
Sound Channel	2.0
Built-In Speaker	2 x 10 W
Sound Pressure Level	81 dB
Peak Power	54 W
Power Supply
Power Supply	100-240V~ 50/60Hz 2.5A
Power Consumption (Max)	250 W
Power Consumption (Typ)	110 W
Environmental Conditions
Operation Temperature	0°C ~ 40°C
Operation Humidity	10% ~ 90% RH
Physical Specifications
Color	Black
Bezel (U/L/R/B)	9.9 mm
Product Dimension (L x H x D)	964.6 x 552.5 x 71.4 mm
Set Weight	9.90 Kg
Package Dimension (L x W x H)	1056 x 156 x 672 mm
Package Weight	13.85 Kg
VESA Mounting	200 x 200 mm
Orientation	Landscape / Portrait
Accessories	Remote Control x 1, Wall Mount x 1, HDMI Cable x 1, Power Cord x 1

Panel
MODEL NAME	LV-55UC
Screen Size (Diagonal)	55"
Panel Type	VA
Resolution	3840 (H) x 2160 (V)
Back Light Unit	DLED
Aspect Ratio	16:9
Display Area	1209.6 x 680.4 mm
Pixel Pitch	0.315 x 0.315 mm
Brightness	400 cd/m²
Contrast Ratio	4000:1
Viewing Angle	178° / 178° (H/V)
Display Colors	1.07B
NTSC	72%
Operation Hour	18/7
Lifetime	≥50000 Hours
Refresh Rate	60Hz
Internal Player
Operating System	Android 11.0
CPU	A55 x 4
GPU	Mali G52MP2
RAM	4 GB
ROM	32 GB
I/O Interfaces
HDMI IN	2
HDMI OUT	1
USB 2.0	1
USB 3.0	1
USB Type C	1
Audio OUT (3.5mm Jack)	1
SPDIF	1
Wi-Fi	Yes
RS232	1
RJ45 IN / OUT	1 / —
Audio
Sound Channel	2.0
Built-In Speaker	2 x 10 W
Sound Pressure Level	81 dB
Peak Power	54 W
Power Supply
Power Supply	100-240V~ 50/60Hz 3.0A
Power Consumption (Max)	300 W
Power Consumption (Typ)	150 W
Environmental Conditions
Operation Temperature	0°C ~ 40°C
Operation Humidity	10% ~ 90% RH
Physical Specifications
Color	Black
Bezel (U/L/R/B)	9.9 mm
Product Dimension (L x H x D)	1233 x 703.5 x 71.4 mm
Set Weight	13.40 Kg
Package Dimension (L x W x H)	1332 x 156 x 819 mm
Package Weight	19.50 Kg
VESA Mounting	400 x 200 mm
Orientation	Landscape / Portrait
Accessories	Remote Control x 1, Wall Mount x 1, HDMI Cable x 1, Power Cord x 1

Panel
MODEL NAME	LV-65UC
Screen Size (Diagonal)	65"
Panel Type	ADS
Resolution	3840 (H) x 2160 (V)
Back Light Unit	DLED
Aspect Ratio	16:9
Display Area	1428.48 x 803.52 mm
Pixel Pitch	0.372 x 0.372 mm
Brightness	400 cd/m²
Contrast Ratio	1200:1
Viewing Angle	178° / 178° (H/V)
Display Colors	1.07B
NTSC	72%
Operation Hour	18/7
Lifetime	≥50000 Hours
Refresh Rate	60Hz
Internal Player
Operating System	Android 11.0
CPU	A55 x 4
GPU	Mali G52MP2
RAM	4 GB
ROM	32 GB
I/O Interfaces
HDMI IN	3
HDMI OUT	1
USB 2.0	1
USB 3.0	1
USB Type C	1
Audio OUT (3.5mm Jack)	1
SPDIF	1
Wi-Fi	Yes
RS232	1
RJ45 IN / OUT	1 / 1
Audio
Sound Channel	2.0
Built-In Speaker	2 x 10 W
Sound Pressure Level	80 dB
Peak Power	54 W
Power Supply
Power Supply	100-240V~ 50/60Hz 3.5A
Power Consumption (Max)	335 W
Power Consumption (Typ)	165 W
Environmental Conditions
Operation Temperature	0°C ~ 40°C
Operation Humidity	10% ~ 90% RH
Physical Specifications
Color	Black
Bezel (U/L/R/B)	15.9 mm
Product Dimension (L x H x D)	1463.3 x 838.3 x 76.4 mm
Set Weight	25.40 Kg
Package Dimension (L x W x H)	1628 x 208 x 942 mm
Package Weight	33.25 Kg
VESA Mounting	600 x 400 mm
Orientation	Landscape / Portrait
Accessories	Remote Control x 1, Wall Mount x 1, HDMI Cable x 1, Power Cord x 1

Panel
MODEL NAME	LV-75UC
Screen Size (Diagonal)	75"
Panel Type	ADS
Resolution	3840 (H) x 2160 (V)
Back Light Unit	DLED
Aspect Ratio	16:9
Display Area	1649.664 x 927.936 mm
Pixel Pitch	0.4296 x 0.4296 mm
Brightness	400 cd/m²
Contrast Ratio	1200:1
Viewing Angle	178° / 178° (H/V)
Display Colors	1.07B
NTSC	72%
Operation Hour	18/7
Lifetime	≥50000 Hours
Refresh Rate	60Hz
Internal Player
Operating System	Android 11.0
CPU	A55 x 4
GPU	Mali G52MP2
RAM	4 GB
ROM	32 GB
I/O Interfaces
HDMI IN	3
HDMI OUT	1
USB 2.0	1
USB 3.0	1
USB Type C	1
Audio OUT (3.5mm Jack)	1
SPDIF	1
Wi-Fi	Yes
RS232	1
RJ45 IN / OUT	1 / 1
Audio
Sound Channel	2.0
Built-In Speaker	2 x 10 W
Sound Pressure Level	80 dB
Peak Power	54 W
Power Supply
Power Supply	100-240V~ 50/60Hz 4.5A
Power Consumption (Max)	425 W
Power Consumption (Typ)	225 W
Environmental Conditions
Operation Temperature	0°C ~ 40°C
Operation Humidity	10% ~ 90% RH
Physical Specifications
Color	Black
Bezel (U/L/R/B)	15.9 mm
Product Dimension (L x H x D)	1685.6 x 963.7 x 81.6 mm
Set Weight	34.65 Kg
Package Dimension (L x W x H)	1863 x 225 x 1090 mm
Package Weight	48.15 Kg
VESA Mounting	800 x 600 mm
Orientation	Landscape / Portrait
Accessories	Remote Control x 1, Wall Mount x 1, HDMI Cable x 1, Power Cord x 1

Panel
MODEL NAME	LV-86UC
Screen Size (Diagonal)	86"
Panel Type	ADS
Resolution	3840 (H) x 2160 (V)
Back Light Unit	DLED
Aspect Ratio	16:9
Display Area	1895.04 x 1065.96 mm
Pixel Pitch	0.4935 x 0.4935 mm
Brightness	400 cd/m²
Contrast Ratio	1200:1
Viewing Angle	178° / 178° (H/V)
Display Colors	1.07B
NTSC	72%
Operation Hour	18/7
Lifetime	≥50000 Hours
Refresh Rate	60Hz
Internal Player
Operating System	Android 11.0
CPU	A55 x 4
GPU	Mali G52MP2
RAM	4 GB
ROM	32 GB
I/O Interfaces
HDMI IN	3
HDMI OUT	1
USB 2.0	1
USB 3.0	1
USB Type C	1
Audio OUT (3.5mm Jack)	1
SPDIF	1
Wi-Fi	Yes
RS232	1
RJ45 IN / OUT	1 / 1
Audio
Sound Channel	2.0
Built-In Speaker	2 x 10 W
Sound Pressure Level	79 dB
Peak Power	54 W
Power Supply
Power Supply	100-240V~ 50/60Hz 5.0A
Power Consumption (Max)	500 W
Power Consumption (Typ)	335 W
Environmental Conditions
Operation Temperature	0°C ~ 40°C
Operation Humidity	10% ~ 90% RH
Physical Specifications
Color	Black
Bezel (U/L/R/B)	15.9 mm
Product Dimension (L x H x D)	1930.8 x 1101.8 x 81.6 mm
Set Weight	50.70 Kg
Package Dimension (L x W x H)	2110 x 225 x 1227 mm
Package Weight	60.75 Kg
VESA Mounting	800 x 600 mm
Orientation	Landscape / Portrait
Accessories	Remote Control x 1, Wall Mount x 1, HDMI Cable x 1, Power Cord x 1

Panel
MODEL NAME	LV-98UC
Screen Size (Diagonal)	98"
Panel Type	ADS
Resolution	3840 (H) x 2160 (V)
Back Light Unit	DLED
Aspect Ratio	16:9
Display Area	2158.848 x 1214.352 mm
Pixel Pitch	0.5622 x 0.5622 mm
Brightness	450 cd/m²
Contrast Ratio	1200:1
Viewing Angle	178° / 178° (H/V)
Display Colors	1.07B
NTSC	72%
Operation Hour	18/7
Lifetime	≥50000 Hours
Refresh Rate	60Hz
Internal Player
Operating System	Android 11.0
CPU	A55 x 4
GPU	Mali G52MP2
RAM	4 GB
ROM	32 GB
I/O Interfaces
HDMI IN	3
HDMI OUT	1
USB 2.0	1
USB 3.0	1
USB Type C	1
Audio OUT (3.5mm Jack)	1
SPDIF	1
Wi-Fi	Yes
RS232	1
RJ45 IN / OUT	1 / 1
Audio
Sound Channel	2.0
Built-In Speaker	2 x 10 W
Sound Pressure Level	80 dB
Peak Power	54 W
Power Supply
Power Supply	100-240V~ 50/60Hz 5.0A
Power Consumption (Max)	515 W
Power Consumption (Typ)	340 W
Environmental Conditions
Operation Temperature	0°C ~ 40°C
Operation Humidity	10% ~ 90% RH
Physical Specifications
Color	Black
Bezel (U/L/R/B)	25.9 mm
Product Dimension (L x H x D)	2212.9 x 1268.4 x 79.4 mm
Set Weight	69.90 Kg
Package Dimension (L x W x H)	2360 x 280 x 1425 mm
Package Weight	90.30 Kg
VESA Mounting	800 x 600 mm
Orientation	Landscape / Portrait
Accessories	Remote Control x 1, Wall Mount x 1, HDMI Cable x 1, Power Cord x 1

Workspaces

Connectivity Solutions

Mounting Solutions
