ZX Series

Bringing AI To Every Classroom

Discover the ZX Series with NeoAI tools and 4K ultra-clear visuals, paired with Google EDLA certification for a secure, seamless teaching experience.

Quick Inquiry

Google EDLA Certified

Google Play interface showing EDLA certified kids and education apps
Optimized for a smarter, smoother experience

The IFPD features Google EDLA-certified Android 14, ensuring a secure and efficient operating system tailored for educational and professional use. This certification guarantees compatibility, device management, and security, allowing access to a vast array of applications from the Google Play Store. With its intuitive interface and advanced features, users can enhance productivity and collaboration seamlessly.

Google Play
Google Play
Core Service
Core Service
Collaboration Tools
Collaboration Tools

Key Features

Android operating system badge
Advanced Operating System

Powered by Android 14.0 (upgradable up to Android 16), the IFPD provides a secure, intuitive, and seamless user experience, perfectly suited for education and professional use.

Octa-core processor illustration
High-Performance Processing

Driven by an Octa-Core processor (A72×4 + A53×4) and Mali-G52 MC3 GPU, the IFPD ensures smooth multitasking, fast response times, and excellent graphics performance for demanding applications.

TF card expandable storage illustration
Generous Memory & Expandable Storage

With 8 GB RAM and 128 GB internal storage, the device delivers quick responsiveness and ample space for apps, lessons, and media. It also supports external storage through a TF card slot for expanded capacity.

Built-In Audio
ZX Series display with built-in 40W speakers
Built-in

40

W Speakers (20W x 2)

A 20W x 2 speaker pair delivers full, room-filling sound — clear enough for lectures, rich enough for media.

Front & Rear Connectivity Ports

Easily accessible front ports for quick connections, with full-range rear I/O ports for permanent setups designed for both convenience and flexibility.

ZX Series front and side connectivity ports

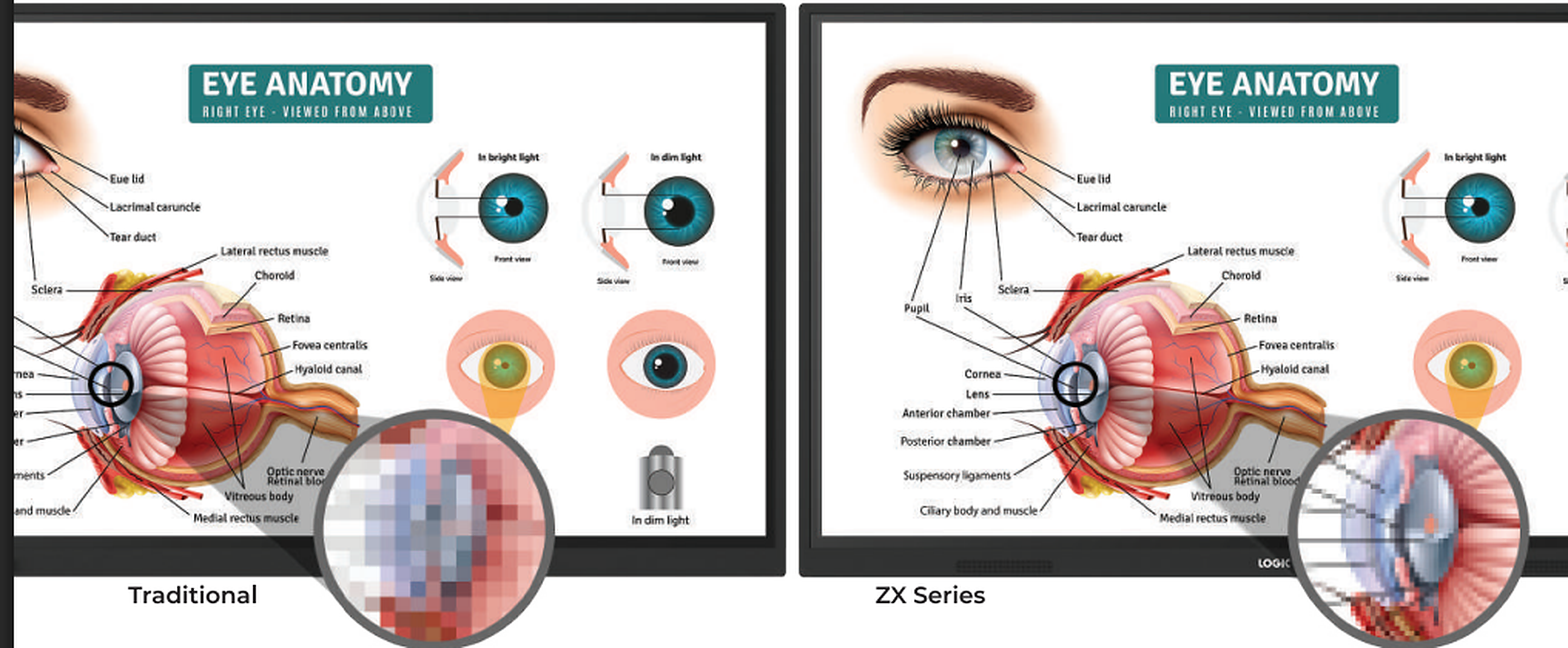

4K Ultra-Clear Visuals and Precision

The IFPD supports a stunning 3840x2160 resolution with a 4K UI and 4K annotation, delivering ultra-clear visuals and precise detailing. This high-definition display ensures exceptional clarity for presentations, annotations, and multimedia, enhancing both productivity and engagement.

CX Pro 4K UHD display showing vivid colours

Instant Insights with NeoAI

Circle It. Know It

Ask AI

Live Subtitles

Video Pilot

Instant Insights with NeoAI

Circle It. Know It

Ask AI

Live Subtitles

Video Pilot

Instant Insights with Neo AI

Neo Stylus activating NeoAI with voice commands

Ask NeoAI - Smart Pen with Voice Commands **

Use your Smart Pen to activate NeoAI with simple voice commands. Whether you're navigating apps, highlighting content, or asking for explanations, NeoAI responds instantly, making your teaching or learning experience smooth, interactive, and hands-free.

Multitasking

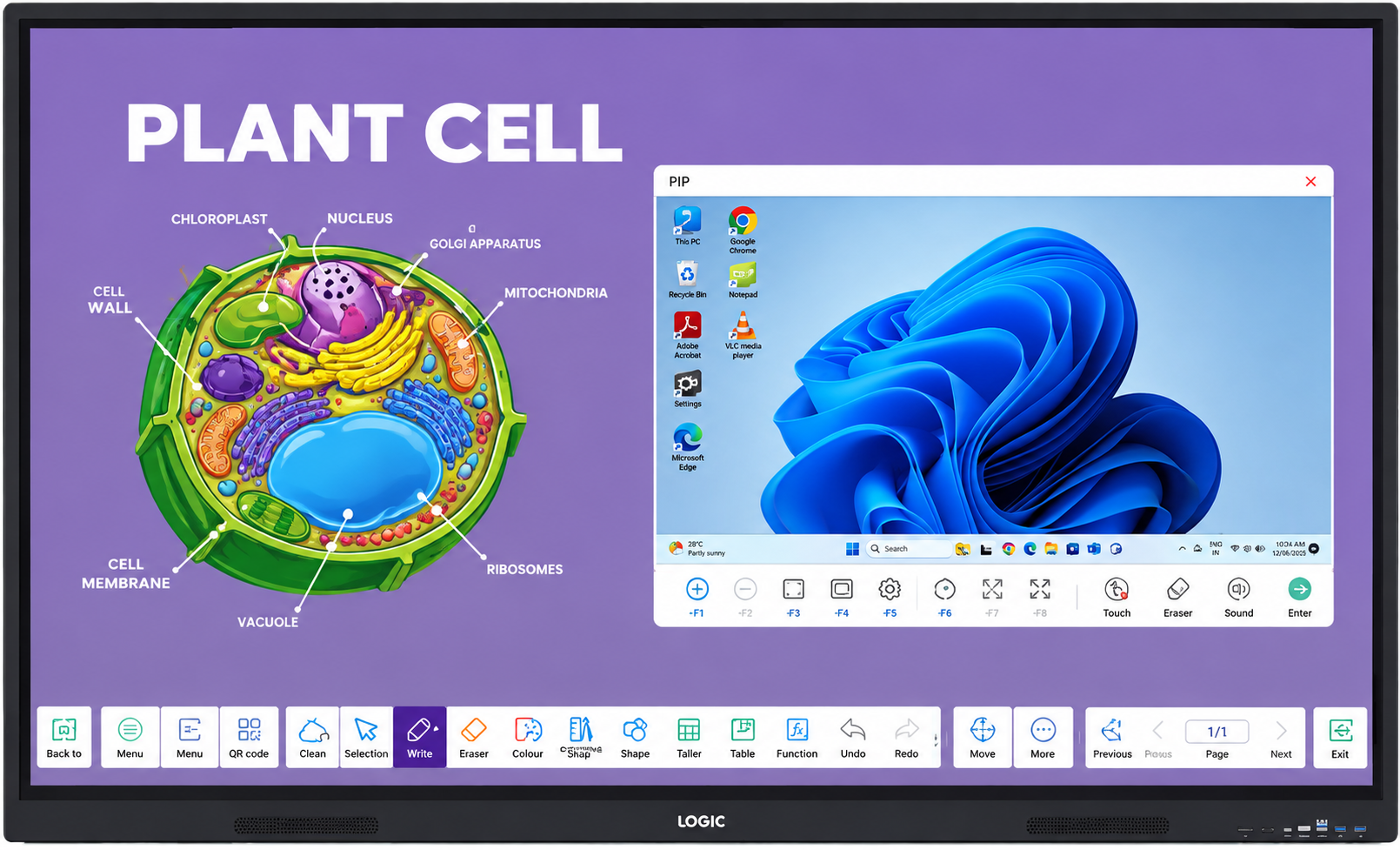

Picture-in-Picture (PIP)

View Android and Windows interfaces on a single screen simultaneously, enabling smooth multitasking and instant content access.

Picture-in-Picture mode showing Android and Windows on one ZX Series screen

Next-Gen Touch Experience

40 touch points and 20 simultaneous writing points.

Students and teacher interacting with the ZX Series touch display in a classroom

Dual Views with Double Productivity

Split-screen mode lets you run two applications simultaneously, perfect for multitasking. Write on the whiteboard while referencing documents, browsing content, or running presentations side-by-side.

Dual view split screen mode showing a document and a whiteboard side by side

Note Pro

Your ideas, limitless canvas.

Advanced Search

Seamlessly explore images and videos with powerful search capabilities.

Versatile Content Import

Effortlessly import files such as PPT, PDF, audio, video, notebooks, and flipcharts to enhance learning sessions.

Subject-Specific Simulation Tools

Utilize tools designed for various subjects to enrich interactive teaching experiences.

Regional Language Compatibility

Support for multiple regional languages, ensuring inclusivity and accessibility.

Effortless Note-Taking

Easily capture and share notes through QR codes in both image and PDF formats, simplifying the process for students and educators alike.

On-Board Geometric Tools

Access a variety of built-in geometric tools directly on the board for precise shapes, measurements, and diagrams.

Text-to-Speech Integration

Enable on-board text-to-speech functionality to cater to diverse learning needs.

Translate Feature

Instantly translate content into multiple languages, making learning accessible to a diverse audience.

Gamified Quizzes Creation

Design engaging quizzes with the activity tool to create interactive and fun learning experiences.

Cloud Storage

Convenient cloud storage options for saving and accessing resources anytime, anywhere.

Built-in 2D & 3D Shapes

Includes pre-built 2D and 3D shape libraries for dynamic content creation.

NCERT e-Book Integration

Direct access to built-in NCERT e-books for seamless curriculum alignment.

GeoGebra Mathematics Tool

Integrated dynamic mathematics tool for advanced mathematical learning and visualization.

Molecular

Interact with chemical structures to explore atoms, bonds, and geometry for clear, engaging chemistry lessons.

Planet

Explore 3D models of planets with interactive visuals for an engaging space science experience.

150+ Additional Features

Explore a comprehensive suite of tools to enhance teaching and learning experiences.

Advanced Monitoring, Simplified Control

Device Management System illustration
Device Management System

A web-based solution to efficiently manage interactive panels supporting real-time monitoring, grouping, brightness and volume control, and instant broadcast of notifications and multimedia messages.

Smart Monitoring with Insightful Analytics illustration
Smart Monitoring with Insightful Analytics

Monitor device performance through an intuitive web-based interface. The DMS application provides detailed operational data, enabling you to gather usage statistics, identify issues, and ensure optimal panel performance with ease.

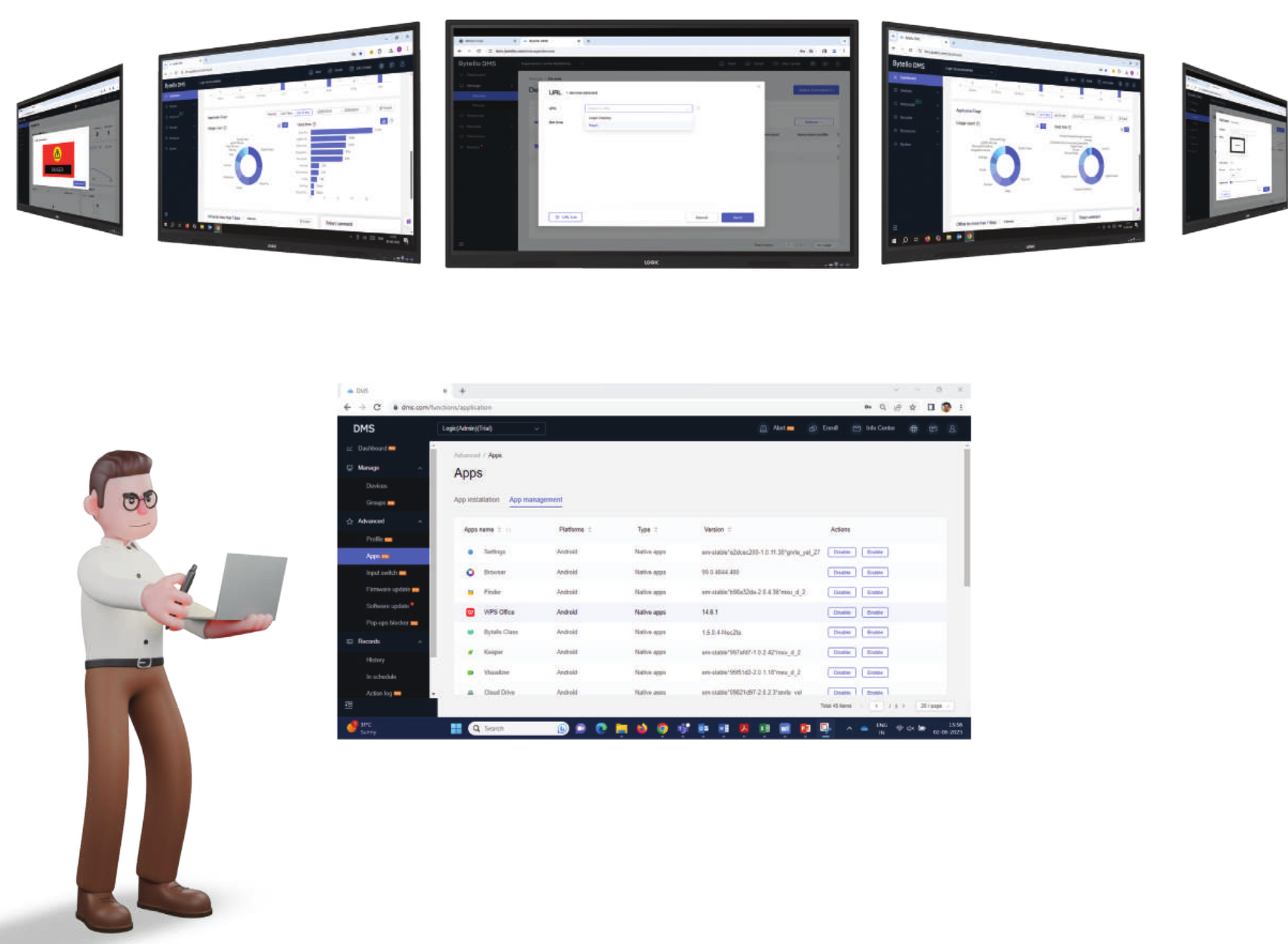

Centralized App Management Made Simple

Easily manage all applications from one unified interface with complete control. Remotely enable, disable, install, or update apps across multiple panels in just a few clicks. Share important notifications instantly without disrupting ongoing classes to ensure a smooth and uninterrupted learning experience.

Device Management System dashboard showing centralized app management across multiple panels

Empower Ideas with Note Pro

SMART WORKSPACE

The Smart Way to Write, Plan, and Present

Note Pro seamlessly integrates the familiarity of a whiteboard with advanced digital features, including handwriting recognition and shape detection. Designed to enhance collaboration, planning, and presentation, it offers a refined and efficient user experience.

Handwriting
Shape
Collaboration & Planning
NOTE PRO

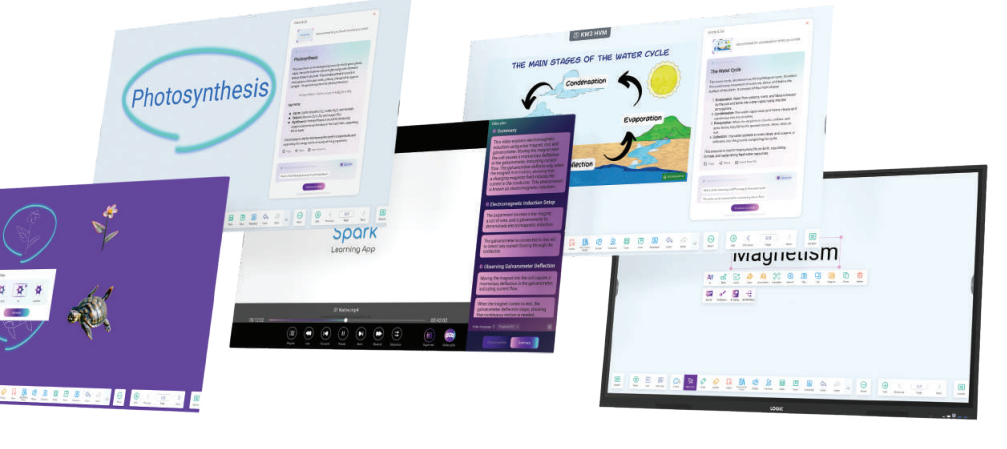

Note Pro on the ZX Series display with handwriting recognition, video summaries and AI tools

Product Specification

Display
MODEL LT-IR65ZX
Size 65 Inch
Panel Type VA
Back Light Unit DLED
Response Time 6.5ms
Aspect Ratio 16:09
Display Area (H x V) 1428.48(H) x 803.52(V) mm
Pixel Pitch 0.372 x 0.372 mm
Resolution 3840(H) x 2160(V)
Refreshing Frequency 60Hz
Display Color 1.07B
Bit Rate 10 bit
NTSC Gamut 72%
Contrast Ratio 5000:1
Viewing Angle 178° (H/V)
Brightness with glass (min) 400 cd/m²
Brightness with glass (typ) 450 cd/m²
Life Time ≥50000 Hours
Operating System
System Version Android 14.0 (Upgradable up to 16)
RAM 8 GB
ROM 128 GB
CPU Octa Core A72x4 + A53x4
GPU Mali G52 MC3
Touch System
Sensing Type Infrared recognition
Touch Recognition Passive stylus, Fingers
Response Time 8ms
Accuracy ±1.5mm
Touch Point 40
Writing Point 20
Minimum Object Size 3mm
Writing Height ≤2mm
Supporting OS Windows 11 / 10 / 8 / 7 / Android / Linux / Mac OS X / Chrome
Audio
Audio Output 2
Output Power 40W (20W x 2)
Sound Pressure Level 85dB
Power
Power Supply 100-240V~ 50/60Hz, 3.5A
Power Consumption (Typ/Max) 180W / 335W
Standby Power ≤0.5W
I/O Interface
HDMI IN 3 (Up to 4K@60Hz, ARC (HDMI 1), all HDMI ports support CEC)
HDMI OUT 1 (Up to 4K@60Hz)
USB 2.0 1 (For system upgrades)
USB Type-C IN 2 (Front: Up to PD 65W (PD 15W when OPS is plugged in); Onboard: PD 15W)
USB 3.0 4 (Front x 2, Rear x 2; all USB 3.0 can auto switch to current channel)
TOUCH 3.0 2 (Front x 1, Rear x 1)
VGA IN 1 (Up to 1080P@60Hz)
DP IN 1 (4K@60Hz)
AUDIO IN 1 (3.5mm Jack: Support VGA Audio IN)
AUDIO OUT 1 (3.5mm Jack)
SPDIF 1 (PCM output format)
RS232 1 (Baud rate 9600)
RJ45 IN 1 (10M/100M/1000Mbps)
RJ45 OUT 1 (10M/100M/1000Mbps)
TF Card 1 (TF card slot)
Wi-Fi 6 802.11 b/g/n/ac/ax (2.4GHz/5GHz)
Bluetooth 5.3
Optional PC Module
PC Module OPS
Physical Specifications
Product Dimension (L x H x D) 1491 x 898.5 x 98.8 mm
Package Dimension (L x W x H) 1628 x 185 x 1014 mm
VESA 600 x 400 mm
Thickness of Display and Wall Mount 128.8 mm
Net Weight 32.05 Kg
Gross Weight 40.95 Kg
Accessories
Power Cord 1
HDMI Cable 1
USB Touch Cable (Type A-B) 1
Remote Control 1
Wall Mount Bracket 1
Writing Pen / Stylus 1 Pair
Wireless Module 1
Environmental Conditions
Operation Temperature 0°C - 40°C
Operation Humidity 10% - 90% RH
Storage Temperature -20°C - 60°C
Storage Humidity 10% - 90% RH
Altitude Up to 5000 meters
Certification
Certification BIS, ROHS, CE, FCC, CB
Display
MODEL LT-IR75ZX
Size 75 Inch
Panel Type VA
Back Light Unit DLED
Response Time 6.5ms
Aspect Ratio 16:09
Display Area (H x V) 1650.24(H) x 928.26(V) mm
Pixel Pitch 0.42975 x 0.42975 mm
Resolution 3840(H) x 2160(V)
Refreshing Frequency 60Hz
Display Color 1.07B
Bit Rate 10 bit
NTSC Gamut 72%
Contrast Ratio 5000:1
Viewing Angle 178° (H/V)
Brightness with glass (min) 400 cd/m²
Brightness with glass (typ) 450 cd/m²
Life Time ≥50000 Hours
Operating System
System Version Android 14.0 (Upgradable up to 16)
RAM 8 GB
ROM 128 GB
CPU Octa Core A72x4 + A53x4
GPU Mali G52 MC3
Touch System
Sensing Type Infrared recognition
Touch Recognition Passive stylus, Fingers
Response Time 8ms
Accuracy ±1.5mm
Touch Point 40
Writing Point 20
Minimum Object Size 3mm
Writing Height ≤2mm
Supporting OS Windows 11 / 10 / 8 / 7 / Android / Linux / Mac OS X / Chrome
Audio
Audio Output 2
Output Power 40W (20W x 2)
Sound Pressure Level 85dB
Power
Power Supply 100-240V~ 50/60Hz, 4.0A
Power Consumption (Typ/Max) 230W / 385W
Standby Power ≤0.5W
I/O Interface
HDMI IN 3 (Up to 4K@60Hz, ARC (HDMI 1), all HDMI ports support CEC)
HDMI OUT 1 (Up to 4K@60Hz)
USB 2.0 1 (For system upgrades)
USB Type-C IN 2 (Front: Up to PD 65W (PD 15W when OPS is plugged in); Onboard: PD 15W)
USB 3.0 4 (Front x 2, Rear x 2; all USB 3.0 can auto switch to current channel)
TOUCH 3.0 2 (Front x 1, Rear x 1)
VGA IN 1 (Up to 1080P@60Hz)
DP IN 1 (4K@60Hz)
AUDIO IN 1 (3.5mm Jack: Support VGA Audio IN)
AUDIO OUT 1 (3.5mm Jack)
SPDIF 1 (PCM output format)
RS232 1 (Baud rate 9600)
RJ45 IN 1 (10M/100M/1000Mbps)
RJ45 OUT 1 (10M/100M/1000Mbps)
TF Card 1 (TF card slot)
Wi-Fi 6 802.11 b/g/n/ac/ax (2.4GHz/5GHz)
Bluetooth 5.3
Optional PC Module
PC Module OPS
Physical Specifications
Product Dimension (L x H x D) 1712 x 1022 x 99 mm
Package Dimension (L x W x H) 1863 x 225 x 1148 mm
VESA 800 x 400 mm
Thickness of Display and Wall Mount 129 mm
Net Weight 42 Kg
Gross Weight 55 Kg
Accessories
Power Cord 1
HDMI Cable 1
USB Touch Cable (Type A-B) 1
Remote Control 1
Wall Mount Bracket 1
Writing Pen / Stylus 1 Pair
Wireless Module 1
Environmental Conditions
Operation Temperature 0°C - 40°C
Operation Humidity 10% - 90% RH
Storage Temperature -20°C - 60°C
Storage Humidity 10% - 90% RH
Altitude Up to 5000 meters
Certification
Certification BIS, ROHS, CE, FCC, CB
Display
MODEL LT-IR86ZX
Size 86 Inch
Panel Type IPS
Back Light Unit DLED
Response Time 6.5ms
Aspect Ratio 16:09
Display Area (H x V) 1895.04(H) x 1065.96(V) mm
Pixel Pitch 0.4935 x 0.4935 mm
Resolution 3840(H) x 2160(V)
Refreshing Frequency 60Hz
Display Color 1.07B
Bit Rate 10 bit
NTSC Gamut 72%
Contrast Ratio 5000:1
Viewing Angle 178° (H/V)
Brightness with glass (min) 400 cd/m²
Brightness with glass (typ) 450 cd/m²
Life Time ≥50000 Hours
Operating System
System Version Android 14.0 (Upgradable up to 16)
RAM 8 GB
ROM 128 GB
CPU Octa Core A72x4 + A53x4
GPU Mali G52 MC3
Touch System
Sensing Type Infrared recognition
Touch Recognition Passive stylus, Fingers
Response Time 8ms
Accuracy ±1.5mm
Touch Point 40
Writing Point 20
Minimum Object Size 3mm
Writing Height ≤2mm
Supporting OS Windows 11 / 10 / 8 / 7 / Android / Linux / Mac OS X / Chrome
Audio
Audio Output 2
Output Power 40W (20W x 2)
Sound Pressure Level 85dB
Power
Power Supply 100-240V~ 50/60Hz, 4.0A
Power Consumption (Typ/Max) 245W / 400W
Standby Power ≤0.5W
I/O Interface
HDMI IN 3 (Up to 4K@60Hz, ARC (HDMI 1), all HDMI ports support CEC)
HDMI OUT 1 (Up to 4K@60Hz)
USB 2.0 1 (For system upgrades)
USB Type-C IN 2 (Front: Up to PD 65W (PD 15W when OPS is plugged in); Onboard: PD 15W)
USB 3.0 4 (Front x 2, Rear x 2; all USB 3.0 can auto switch to current channel)
TOUCH 3.0 2 (Front x 1, Rear x 1)
VGA IN 1 (Up to 1080P@60Hz)
DP IN 1 (4K@60Hz)
AUDIO IN 1 (3.5mm Jack: Support VGA Audio IN)
AUDIO OUT 1 (3.5mm Jack)
SPDIF 1 (PCM output format)
RS232 1 (Baud rate 9600)
RJ45 IN 1 (10M/100M/1000Mbps)
RJ45 OUT 1 (10M/100M/1000Mbps)
TF Card 1 (TF card slot)
Wi-Fi 6 802.11 b/g/n/ac/ax (2.4GHz/5GHz)
Bluetooth 5.3
Optional PC Module
PC Module OPS
Physical Specifications
Product Dimension (L x H x D) 1957 x 1159.9 x 97.1 mm
Package Dimension (L x W x H) 2110 x 225 x 1283 mm
VESA 800 x 600 mm
Thickness of Display and Wall Mount 127.1 mm
Net Weight 51.5 Kg
Gross Weight 68 Kg
Accessories
Power Cord 1
HDMI Cable 1
USB Touch Cable (Type A-B) 1
Remote Control 1
Wall Mount Bracket 1
Writing Pen / Stylus 1 Pair
Wireless Module 1
Environmental Conditions
Operation Temperature 0°C - 40°C
Operation Humidity 10% - 90% RH
Storage Temperature -20°C - 60°C
Storage Humidity 10% - 90% RH
Altitude Up to 5000 meters
Certification
Certification BIS, ROHS, CE, FCC, CB
WhatsApp
